Product Description

Item specifics

• Item Type:Switches
• Warranty:1 year
• Features:light control switch
• Certification:CE,RoHS
• Switch Type:Photoelectric Switch
• Model Number:LX-E302
• Material:Plastic
• input voltage:220V-240V/AC
• Rated Current:10A
• Ambient Light:5-50LUX (adjustable)
• Working Temperature:-20~+40
• Working Humidity:<93%RH
• Theory:Photoelectirc Switch
• Color :White

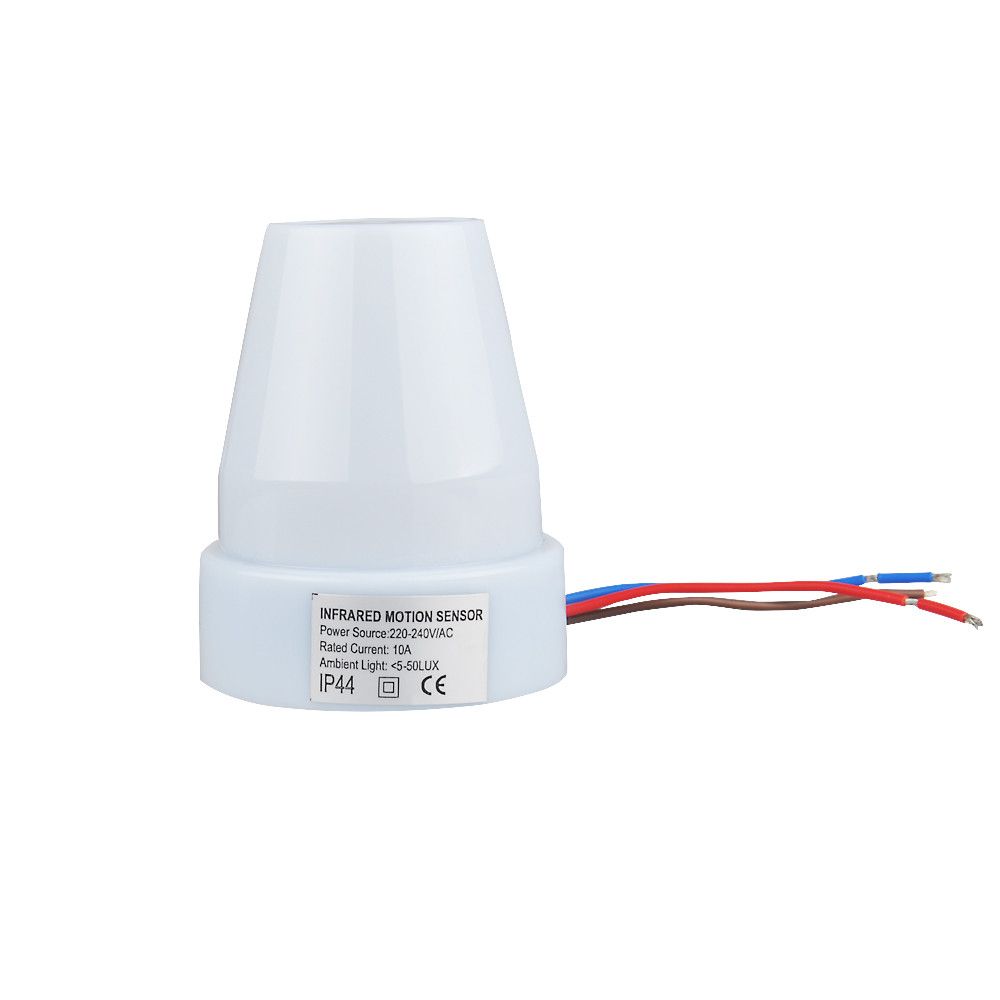

Sensky Outdoor IP44 Photoelectric sensor switch 220V-240V/AC Light control sensor automatic photocell switch for lamps 302

Description:

The light sensor switch can turn on or turn off light by automatically according to ambient-light. Ambient-temperature and humidity can not affect it. It is not only convenient but also practical; it can control the load working only at night. For instance road light, garden light etc.
SPECIFICATION:

1. Power source: 220V-240V/AC
2. Power Frequency: 50Hz
3. Rated Current: 10A
4. Ambient Light: <5-50LUX(adjustable)
5. Working Temperature: -20~+40
6. Working Humidity: <93%RH

INSTALLATION (see the figures):

1.Switch off the power. Connecting the wire as per the following figure.

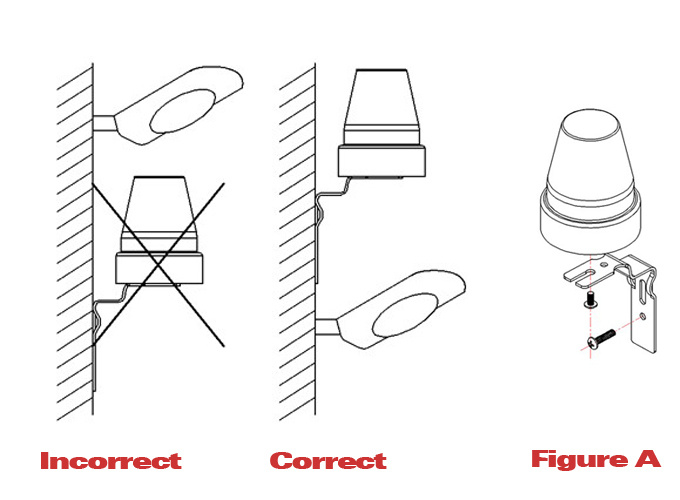

2.Please install the item with the correct orientation (see figure A) what shows in the metal bracket and according to the correct installation place with the enclosed inflated screws.

 CONNECTION-WIRE FIGURE:

TEST:
1.Switch on the power.
2.Please using enclosed black opaque bag in the packing when you testing in daytime.
3.When the bag mantles the detection window of the photocell, the ambient light of the
   items will be dark, it makes lamp on.
4.When take off this bag, it makes lamp off by automatically.

NOTE
1.In front of the photocell, it should be no obstruction effecting to accept natural light;
2.In front of the photocell, it should be no swaying object.
