| Prod Model: |
ABC Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
XLPE |
| Certification: |
VDE |
| Range Of Application: |
Overhead |
| Brand: |
Dayuan Cable |
Product Description

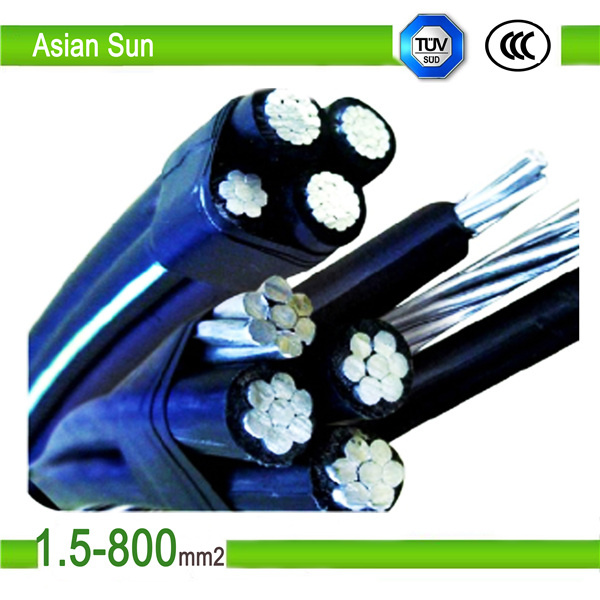

ABC Cable Application
This production is suitable for electric cable below 10KV AC, which will be mainly used for city power grid transmission line. It is simple structure,
safety and stable and is of good mechanism physical and electricity function. And also it has good function of proof track, creepage
discharge, and air. Compared with naked wire, it has small gap so that can save wire route and decrease voltage drop. What is the
most important is that it will decrease the accident in power supplying and make people safe.
Specific Property for ABC Cable
1) the min. temperature of laying cable is not lower than 20°C.
2) the Max. temperature of HDPE insulated cable is 150°C, and that of the XLPE insulated cable is 250°C when short circuit (5 seconds ).
3) the Max. long-time working temperature of conductor of the HDPE insulated cable is 75°C,and that of the XLPE insulated cable is 90°C.
4) every fault time of single-phase earth shall be less than one minute. And that also shall be less than 8 hours per time and be less than 125hours every year.
5) the permissible curving radius of single-core cable should be not less than 20(D±d) ±5%mm, and that of the multi-core cable should be not less than 15(D±d) ±5%mm.

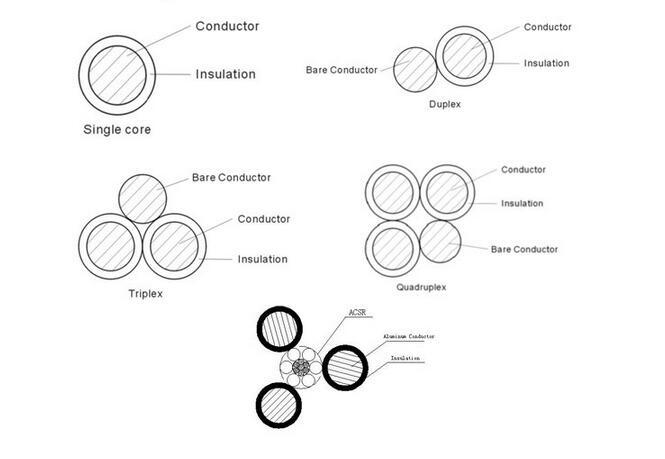

ABC cable sketch structure as follows:
Basic Construction
Three power cores consisting of standard aluminum conductors, insulated with XLPE insulation
1. One sheath lighting aluminum conductor with XLPE insulation (optional)
2. One messenger Al-alloy conductor (bare or covered)
ABC Cable Standards
1. B-230 aluminum wire, 1350-h19 for electrical purposes.
2. B-231 aluminum conductors, concentric-lay-stranded.
3. B-232 aluminum conductors, concentric-lay-stranded, coated steel reinforced (ACSR).
4.B-399 concentric-lay stranded 6201-t81 aluminum alloy conductors.
5.B-498 zinc-coated steel core wire for aluminum conductors, steel reinforced (ACSR).
6. Duplex service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474

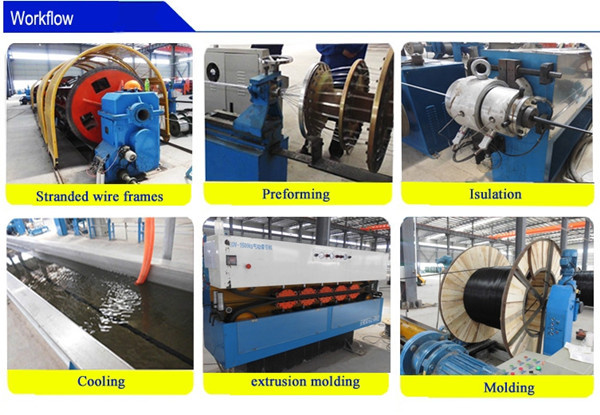

Workflow
