Jiangsu Jingzhongjing Industry Coating Equipment Co., Ltd.
Jiangsu Jingzhongjing Industry Coating Equipment Co., Ltd. >> Ozone Generator, Ozone/Oxygen Integrated Series, Air-Cooling, 15g/H Ozone Output

Ozone Generator, Ozone/Oxygen Integrated Series, Air-Cooling, 15g/H Ozone Output

Ozone Generator, Ozone/Oxygen Integrated Series, Air-Cooling, 15g/H Ozone Output
Price: US $ 20-10000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Contact Supplier
Showroom Product Company Profile
Prod Model: OZ-15G-D

Product Description

OZ series ozone generator
The OZ series products are corona discharge type ozone generators, with advanced IGBT power supply and generation chambers utilizing HQG quartz glass structure (BNP patent). The special back flow water prevention design, modular circuit, anti-oxidant dielectric components, connection and pipelines have ensured the products have longer lifespan, bigger corona discharge area, lower temperature and higher ozone concentration.

Features:
  1. The model use ceramic ozone plate with more than 10,000 hours working life
  2. The model adopts discharge corona and air cooling technologies
  3. Stainless steel #304 to guarantee long lifespan of this product
  4. Ambient air source ,built-in cooling fan
  5. High ozone concentration and ozone output,far conveying distance,perfect sterilization effect
  6. Ambient air source ,built-in cooling fan
  7. High ozone concentration and ozone output,far conveying distance,perfect sterilization effect
  8. Large dust-proof and radiator-grid, with excellent heat dissipation and long life
  9. Lags welded for installation against wall,side opening dust filter

Though an electrostatic filter can remove a proportion of odor generated in the cooking, some odor still can not be eliminated. So, the remaining odor need to be treated by a strong oxidizer. Ozone, as a well-known powerful disinfectant, will effectively mitigate the odor. Below are the benefits of the ozone generator for kitchen exhaust system:

The ozone generator's outlet is connected to exhaust duct after exhaust hood. For ozone reaction, it takes a minimum time to contact with odor and destroy them. And, two seconds is the ideal timing. The ozone unit can be installed without an electrostatic filter if the cooking only generates grease mist (no smoke), because ozone will ozonize and break down greases and odor.

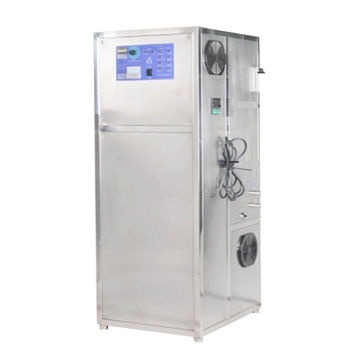

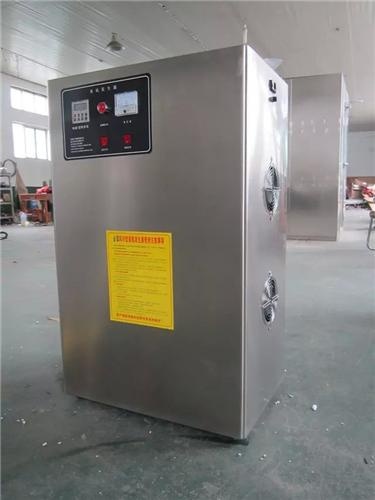

Product Photos:


Specification:
Model
Parameter		OZ-3G /OZ-3G-DOZ-5G /OZ-5G-DOZ-7GOZ-10G /OZ-10G-DOZ-15G /OZ-15G-D
Capacity(g/h): Oxygen source3571015
Capacity(g/h): Air source2.53.53.579
Cooling methodAir cooling
Drying and heating systemNo/InbuiltNo/InbuiltNoNo/InbuiltNo/Inbuilt
Max. Output
concentration(g/m 3)		Oxygen source:25~ 45;  Air source:5~15
L*W*H(mm)350*250*520350*250*580350*250*630
Weight kg1112121313
Power (W)140160160180180
Electrical power supply220~240V, 50~60 HZ; 110V, 50~60 HZ
Gas sourceoxygen or dry clean air


Jiangsu Jingzhongjing Industrial Paint Equipment Co., Ltd, is located in the Yangtze River Delta Economic Zone, China Industrial Painting Base, Yancheng city, Jiangsu Province. We have the plant area of 99000m2, garden-style industrial zone. We have the staff of 260, including 20 engineers with 15years designing experience. Our annual production capacity can achieve 2, 500 sets paint booth.

We adhere to the "heritage of big business style, classic gaming counterparts, - creating the world brand" core values. Pursuit high goals, has won wide recognition and praise from the government and the market.

Our products are JZJ Brand spray booth, sandblasting booth, shot blasting machines etc. Our products have passed the ISO9001, EU CE, the products have been shipped in the domestic 34 provinces and more than 50 countries like Germany, Japan, Russia etc.

Our products are well-known in the industrial of the automobile, aviation, military, wind power, nuclear power, engineering machinery, machine tool manufacturing, and other industries.

Welcome the customers from China and all over the world to join us!
