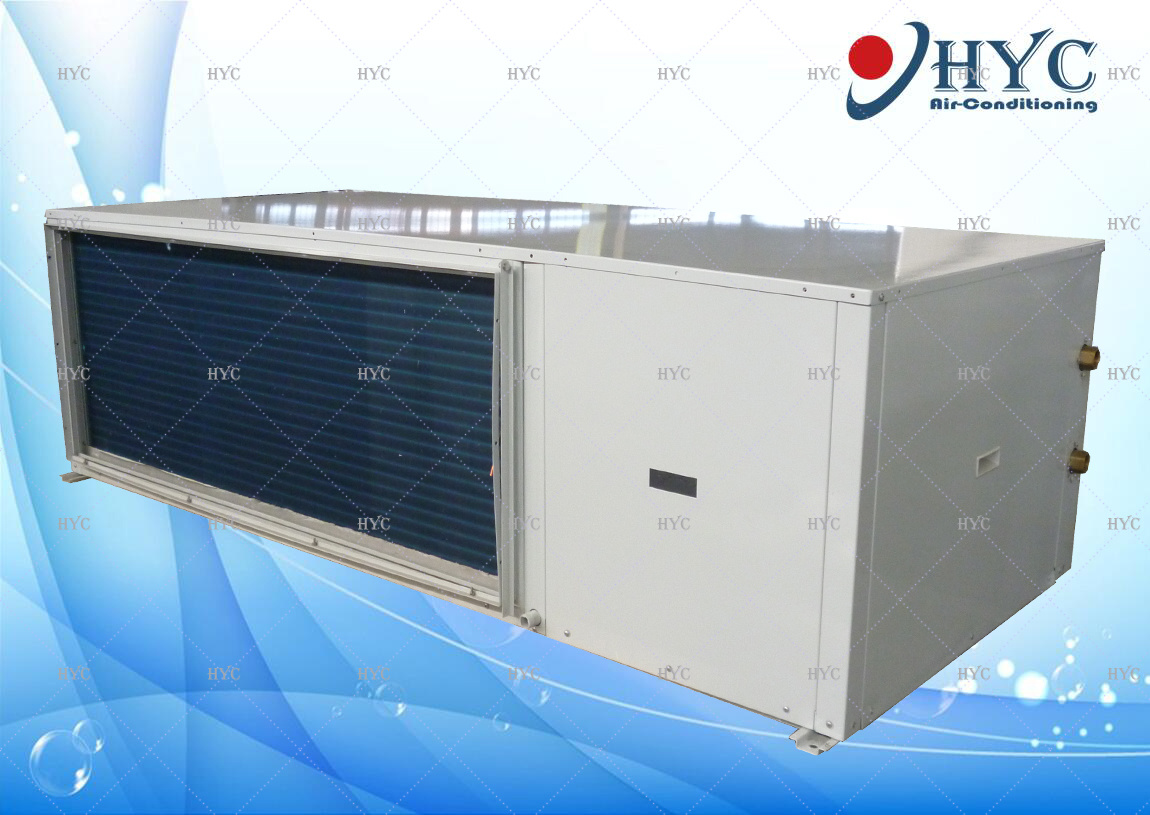

Packaged Horizontal and Vertical Type Water Chilled Air Supply Units
| Price: |
US $ 800-4000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Color: |
Whilte/Optional Other Colors |
| Delivery Time: |
30days |
| Tailor Made: |
Avaiable |
| OEM/ODM: |
Avaiable |
| Capacity: |
2-33kw |
| Refrigerant: |
R22/R407c/R410A |
| Compressor Type: |
Rotary/Scroll |
| Compressor Brand: |
Copeland/Daikin/Panasonic/Hitachi/Danfoss |
| Construction: |
Integrated |
| Type: |
Chiller |
| Certification: |
CCC |
| Operating Voltage: |
220V,380-415V,50/60Hz |
| Application Fields: |
Apartment,Office Building,Villa,Industrial |
Product Description
Integrated and compact design, easy installation, stable and reliable performance, high EER and COP. Could be widely use for home use or commercial use area, like apartment, villa, banks, station, etc.
COMPRESSOR The units use high efficiency, rotary and scroll compressor as capacity, oil return lubrication and rubber vibration damper. The thermal overload cut-out, phase sequence relay and crankcase heater are integrated as the security protection to enhance reliability and performance. EVAPORATOR Evaporator built with centrifugal fan, directly blow the air to supply area or to the air ducting system. CONDENSER Condenser built with plate heat exchanger/tank heat exchanger/shell and tube exchange as capacity, factory insulated with flexible close cell material. ELECTRIC PANEL Electric panel consist of: Compressor contactor, fan motor contactor, compressor protection breaker, fan protection breaker, phase sequence relay and microprocessor with function display (display only for master/packaged unit)Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system. OPTIONAL • BMS• Stainless steel covering• Split type design | Model | 2 | 3 | 4 | 6 | 7 | 8 | 10 | 12 | 15 | 17 | 21 | 25 | 29 | 33 |
| Cooling capacity | 2.2 | 2.86 | 4.05 | 6.25 | 7.5 | 8.8 | 10.2 | 12.3 | 15 | 17 | 21 | 25 | 29 | 33 |
| Heating capacity | 2.4 | 3.1 | 5.1 | 6.96 | 8.4 | 9.68 | 11.9 | 13.2 | 18 | 20 | 25 | 27 | 35 | 41 |
| Cooling input power | 0.56 | 0.74 | 0.99 | 1.56 | 1.87 | 2.19 | 2.5 | 2.9 | 3.74 | 4.04 | 5.2 | 6.3 | 7.3 | 8.8 |
| Heating input power | 0.57 | 0.76 | 1.1 | 1.61 | 2.03 | 2.33 | 2.7 | 3.1 | 4.3 | 4.5 | 5.9 | 6.8 | 8.8 | 10.2 |
| Power supply | 220V/1PH/50Hz | 380V/3PH/50Hz |
| Compressor type | Rotary | Scroll |
| Evaporator | |
| Air flow | 400 | 470 | 700 | 1000 | 1200 | 1450 | 1700 | 1800 | 2400 | 2950 | 3400 | 4270 | 5000 | 6000 |
| Static pressure | 20 | 20 | 20 | 40 | 40 | 40 | 50 | 50 | 80 | 80 | 100 | 100 | 100 | 100 |
| Condenser | |
| Water flow | 0.53 | 0.62 | 0.85 | 1.2 | 1.65 | 1.8 | 2.1 | 2.1 | 3.1 | 3.6 | 4.2 | 5 | 6.1 | 7.2 |
| Water pressure drop | 9 | 10 | 22 | 46 | 45 | 42 | 47 | 45 | 42 | 52 | 50 | 52 | 54 | 56 |
| Noise<=dB(A) | 41 | 42 | 43 | 44 | 45 | 45 | 46 | 47 | 48 | 49 | 54 | 56 | 57 | 58 |
| Drain pipe size | DN15 | DN20 |
| Dimension | |
| Length | 893 | 893 | 1190 | 1240 | 1240 | 1240 | 1500 | 1500 | 1500 | 1500 | 1805 | 1805 | 1915 | 1915 |
| Width | 542 | 542 | 542 | 548 | 548 | 548 | 790 | 790 | 790 | 790 | 1045 | 1045 | 1045 | 1045 |
| Height | 405 | 405 | 405 | 465 | 545 | 545 | 595 | 595 | 595 | 595 | 623 | 623 | 673 | 673 |
| Net weight | 60 | 62 | 80 | 85 | 90 | 100 | 130 | 140 | 160 | 180 | 250 | 260 | 280 | 315 |
| In/out pipe size | DN20 | DN21 | DN22 | DN23 | DN24 | DN25 | DN26 | DN32 | DN33 | DN34 | DN35 | DN36 | DN37 | DN38 |
Qingdao HongYu Cles Air Conditioning Co., Ltd. Established in 1999, specializes in the R&D, manufacturing, sales and after services of central air conditioner products.
By professional manufacturing for over 17 years, our product line covers air cooled mini type & air cooled modular type chiller (heat pump), water cooled mini type & water cooled modular type chiller (heat pump), air cooled screw type & water cooled screw type chiller (heat pump), DX type rooftop packaged unit & ducted split unit, water cooled air chiller (heat pump), air handling unit (water chilled & DX type), fan coil unit (concealed & exposed), fan heater etc.
With quality product and professional service, our customer group includes government building, office building, stadium, hotel, exhibition center, hospital, industrial products manufacturing factory, pharmacy factory, supermarket, automobile factory, mine industry, museum etc.
HongYu is a member of China professional committee of central heating and heat measurement, and a member of China Shandong Association of Refrigeration. With numerous patents technology, and hold certificates like "High-tech product", " specialized, superior, peculiar and new area", ISO, CQC, CCC, OHSAS etc, HongYu could offer intelligent solutions to customers.
By continuous quality improving, we guarantee the clients high quality products, and maintain a healthy, stable and sustainable development.
Chose Hongyu product, chose a better life.
