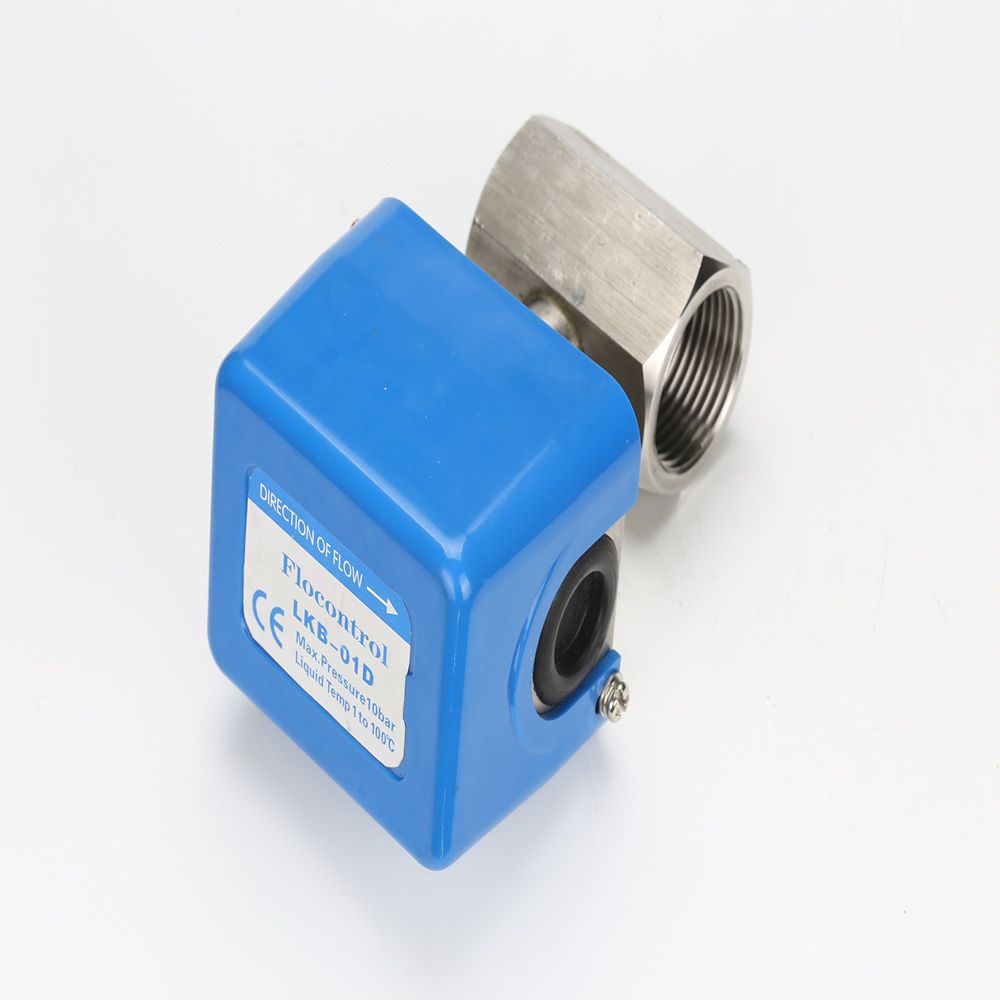

Paddle Type Water Flow Switch Lkb-01d (25A/25B) Stainless Steel Type

Name: Paddle Type Water Flow Switch Lkb-01d (25A/25B) Stainless Steel Type
Brand: all-electronics-online.com
SKU: 832457315
Availability: InStock
Rating: 4.4 (121 reviews)

Price:	US $ 70/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Characteristic

Application: Water treatment system. Central air-conditioning, water chilling unit,fire extinguishing system, etc.

Fluid temperature: 0~120ºC.

Max fluid pressure: 1.0Mpa.

Fluid control setting point is adjustable, action repeat point is stable.

Protection class: IP54.

Microswitch Contact life: 100 thousand times.

Pipe connector:R thread (NPT and G available)

HFS flow switch could not be used in the pipe which liquid temperature drops below freezing point. Arrester must be installed if quick-closing valve fixed downstream.

Electrical Parameter

Rated voltage(V}		Horsepower	125 VAC	250 VAC
RatedAmps(A)
Non-inductive Amps		1	15	15
Inductive Amps	Rated Amps	0.75	3.5	2.5
	Locked Rotor Amps	0.45	21	15

Type Ordering

Nominal Diameter	(NB/DN)	Pipe Connector	Adjustment Range	Switching differential		Repeatability Error
Nominal Diameter	(NB/DN)	Pipe Connector	Adjustment Range	common	High End	Repeatability Error
15	A	Rc 1/2"	3-11	2.5	1.5	2.5%
15	B	Rc 1/2"	5~17	5.5	2.5
20	A	Rc 3/4"	4.2-18	3.6	2
20	B	Rc 3/4"	8.3-37	7.2	3
25	A	Rc 1"	5.2-23	4.5	2
25	B	Rc 1"	10-48	9.3	4
32	A	Rc 1 1/4"	8.1-39	7.5	3
32	B	Rc 1 1/4"	19-90	11	6
40	A	Rc 1 1/2"	15-69	12	5
40	B	Rc 1 1/2"	25-111	16	7
50	A	Rc 2"	35-92	14	6
50	B	Rc 2"	46-125	18	7

Prod Model:	YH
