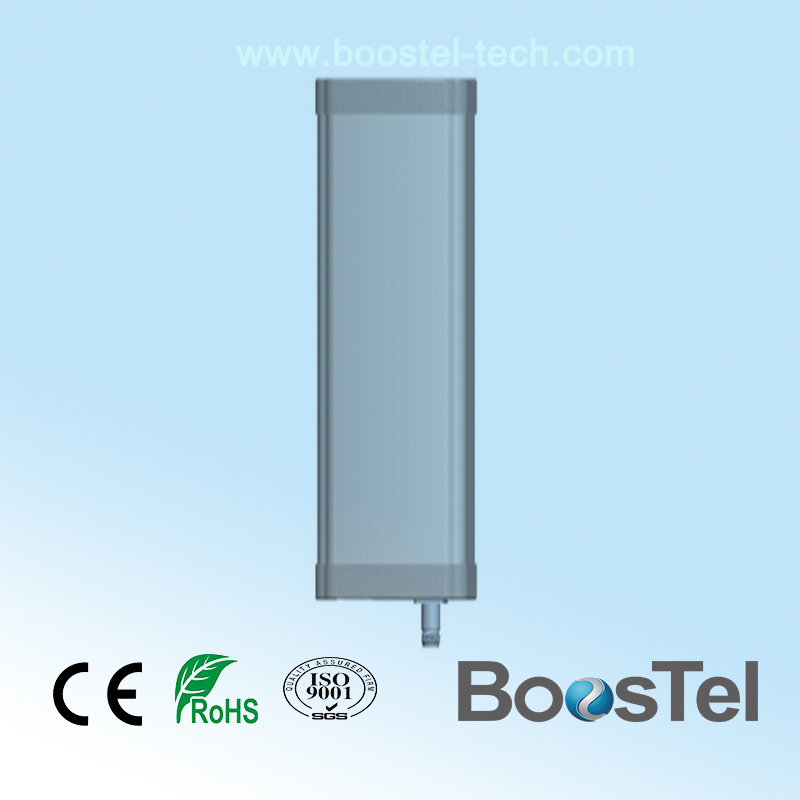

Panel Antenna for WiFi Lte

Panel Antenna for WiFi Lte
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T

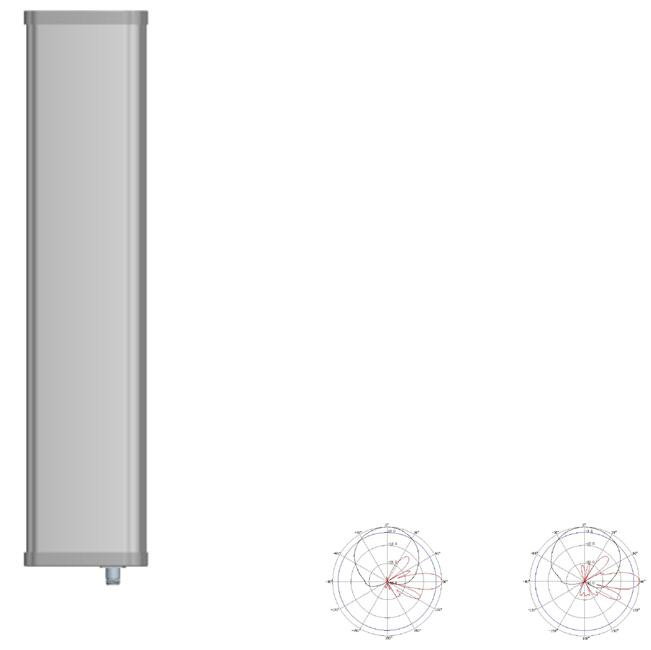

Specifications of Panel Antenna


Model: BT-65VP15-2327RT0
ItemsSpecification
Working Frequency2300~2500MHz2500~2700 MHz
PolarizationVertical
Gain14.5dBi15dBi
Electrical Downtilt
Horizontal Beam Width65°63°
Vertical Beam Width15.5°15°
Sidelobe suppression for first
sidelobe above main beam (dB
≥15dB
Front-to-Back Ratio≥25dB
V.S.W.R.1.5
Input Impedance50Ω
Intermodulation IM3≤-150dBc
Max. Power200W
Lighting protectionDC Ground
Connector7/16DIN-Female
Connector PositionBottom
Height/width/depth500*128*56mm
Packing Size600*230*160mm
Weight1.4kg
Radome MaterialUPVC
Radome ColorGray
Mechanical Tilt0~15°
Operating Temperature-40~60°C
Suitable Pole Diameter35 ~75mm
Mounting KitJM-2400RZ1







Prod Model: BT-65VP15-2327RT0
Usage: Radar Antenna
Operating Wavelength: Medium Wave
Material: Steel Plate
Directionality: Directional Antenna
VSWR: 1.5~2
Shenzhen Boostel Technologies Co., Ltd. is a high-tech company integrating scientific R&D, manufacturing and marketing, with factory in Shenzhen China, and headquarters in Hongkong, mainly engages in scientific research, production, marketing, project and engineering service of the radio telecommunication system.

Since the inception, we have been a professional manufacturer and solution provider of RF network optimization system. Our products, including RF repeaters, IBS, BTS filters, combiners and amplifiers as well as NMS software system, have been deployed in more than 100 cities in China and 30 countries in Southeast Asia, Africa, European, South America and Middle East. We provide the infrastructure and total solutions to mobile operators and enterprises to enhance the cellular network.

Our products including High power Repeaters and Pico Repeaters which covering all the working frequency bands of TETRA Repeaters, iDEN Repeaters, LTE800MHz, GSM900MHz, DCS1800MHz, PCS1900MHz, WCDMA2100MHz and LTE2600MHz.

Since 1995, the first set of Fiber optic Repeater was manufactured in our factory, we have developed all kinds of Repeaters and sold it the opeartors all over the world.

We will provide the total solution of Repeaters with best quality and full technical supporting to you based on our more than 20 years experience of manufacturing Repeaters.
