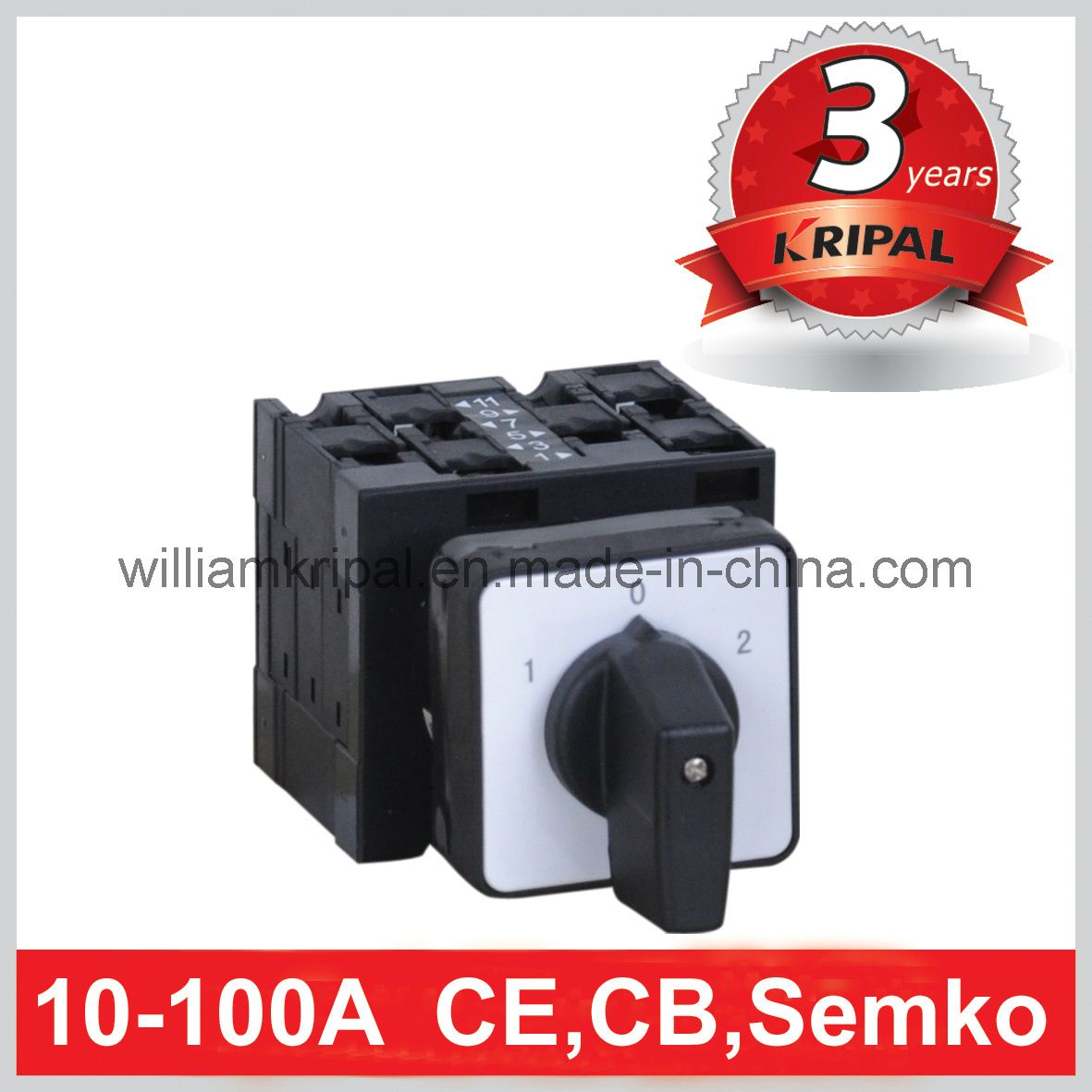

Panel Mounted Change Over Switch

Prod Model:	UKT3/E
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Materials:	Nylon, Copper, Silver

Product Description

Change Over Switch

1. Poles: 2P, 3P, 4P, 5P

2. Rated current: 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A

3.30° , 45° , 60° Or 90° Switching angle

4. Forced open contacts

5. Finger protected

6. Fulfills the load break requirements up to 690 V and 1000 V

7. Terminal screws in open position

8. Red operation lever & yellow panel, pad lockable

9. Disconnect Switches offer ideal features for their use as: ON-OFF Switches, geover Switches, Multi-step Switches, Code Switches, Gang Switches, Instrument Switchesand Motor switches

10. Function: Applied in control of machines, lights, protective devices, measurement equipments, as well as control motors.

11. Our products are designed, manufactured and tested according to the following standards: EN 60947, EN 60204-1, IEC 60947, IEC 60204-1

12. Certificate: CE, CB, Semko, ISO9001: 2000

13. Samples: Provided freely

14. Warranty: 3 years; Every item is tested before delivery, professional testing lab in factory

15. Lead time: 20 days and depend on ordering quantity

16. ODM, OEM: Acceptable; Mould toolings are finished in our own mould tooling center
