Parking Access Control Telecom System VoIP PCB Board Kn518
| Price: |
US $ 124-165/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Parking Access Control Telecom System Voip Pcb Board KN518
Miki Mok - Business Manager
Cell : +86 135 3042 8923
Mobile: +86 15107612812

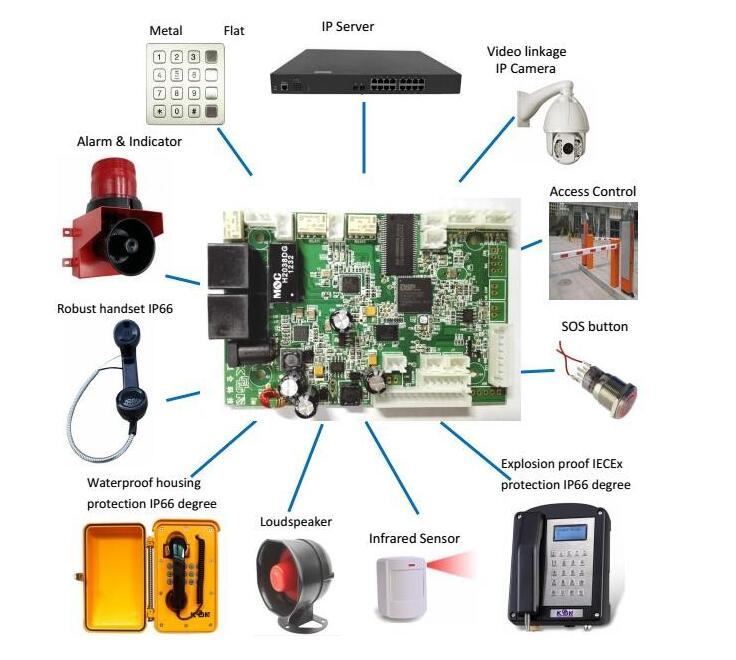

Welcome to Choose Parking Access Control Telecom System Voip Pcb Board KN518 !Parking Access Control Telecom System Voip Pcb Board KN518 feature :
Working at -40ºC-+70ºC hazardous pure industrial environment
4 ~100 I/O output and imput for external control
Support WAN/LAN, Duplex Intercom, Echo Cancellation, Upgrade Online
With Camera optional
With TFT display and Camera optional
Webpage upto 50+ IP station group/direct call without Server
Adjustable sound volume
IP address Sound reporting or LCD display
Door phone RFID card reader
Board cast amplifier for paging option
CCTV trigger available
SIP 2.0 and private protocol
5 years warranty
PCB surface glued protection: Water-proof, Dust-proof, Oxidation-proof.

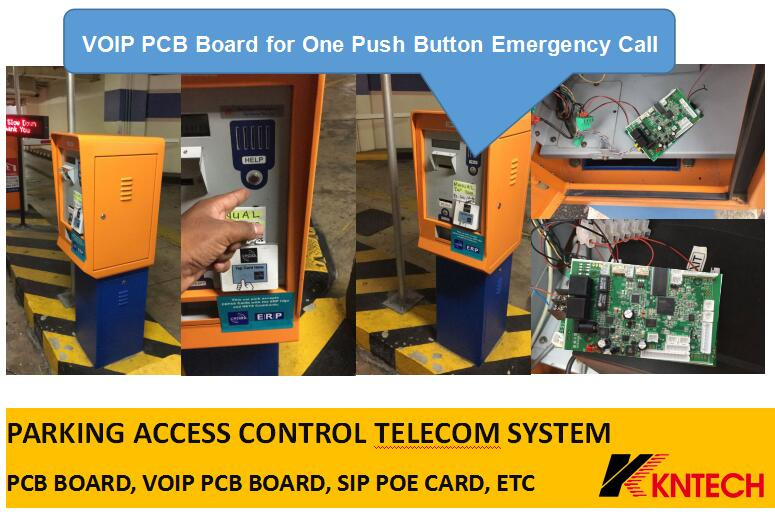

SIP Telephone Boards KN518 VoIP Main Board PCB Board Application :
Telecommunication device, VoIP speakers, emergency intercom, emergency telephone.
For public address, Industrial, onshore, shipyards, ship building, power plant, steel plant, airport, metro, bank,
tunnel, ...etc.

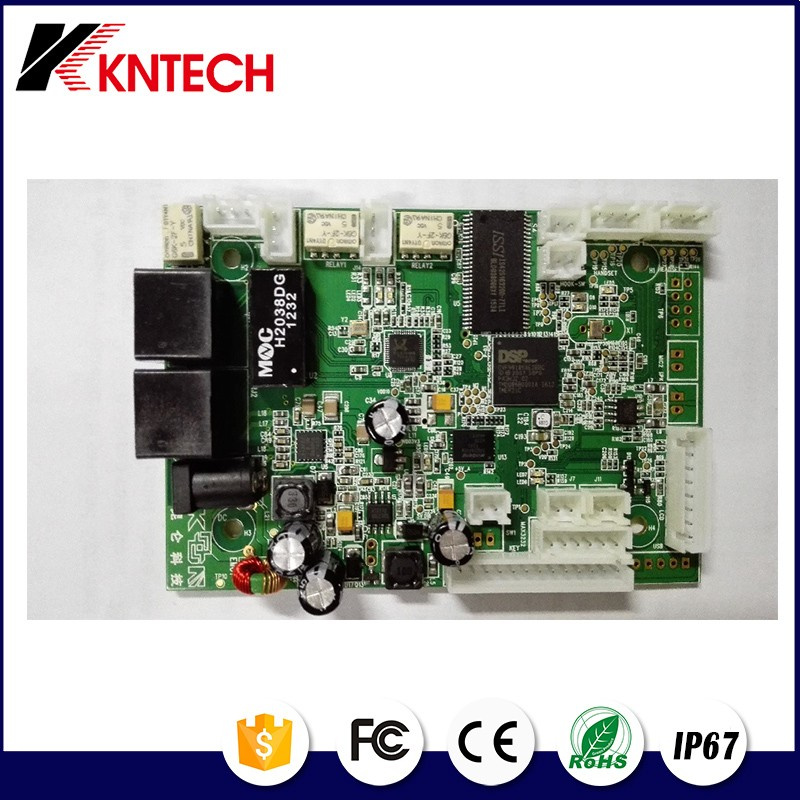

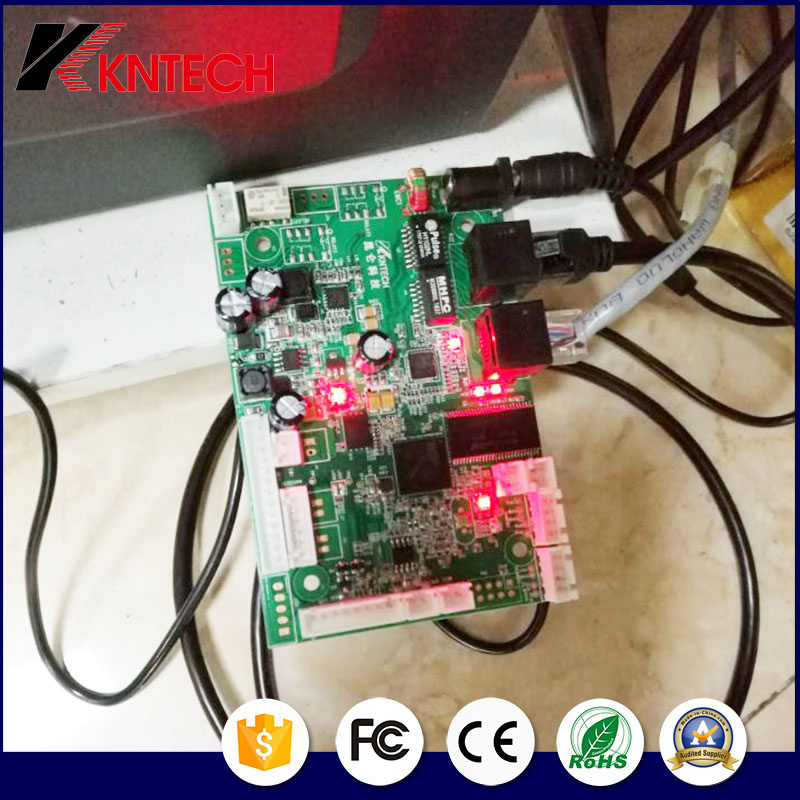

Parking Access Control Telecom System Voip Pcb Board KN518 photo show :
PCB Features
1. SIP 2.0 and IMS platform operators, the interconnection between mainstream manufacturers IP PBX.
2. High-end chips: the embedded DSGP chip, stable and reliable.
3. Call flexible: support hands-free, handset, headset operating mode.
4. Voice interface: hands-free, handset, headset, audio interfaces and an external amplifier interface.
5. Power supply: DC5V-15V, compatible POE IP PBX power supply mode (POE 802.3af Classl 48V)
6. Alarm Interface: Built-in three-way input detecting short circuit, output short-circuit three-way.
7. Telecom-level voice: support full-duplex speakerphone, providing Telecom level voice quality.
8. On board Amplifier: Built-in 2.5W / 4Ω digital amplifier, drive loudspeakers directly.
9. Remote adjust volume: support the console remote to adjust the volume.
10. Multiple key options: support dial any telephone number, the numeric keypad and function keys, speed dial keys, editing keys.
11. Status indicate: support registration, call status indication.
12. Multi-party call: supports three-way calling or multiparty call (multiparty conferencing).
13. MIC Mute: Support IPPBX broadcast voice call, local MIC automatically mute to avoid howling.
14. Warning lights drive: support indicator lights for coming calls and taking.
SIP Telephone Boards KN518 VoIP Main Board PCB Board Parameter :
| Working temperature | -30 ---70C |
| Input voltage | 7.4V-9V |
| Standby current (average) | 70mA @ -75 dBm |
| Current call | 230mA @ -75 dBm |
| Receiver sensitivity | -106.5dBm |
SIP Telephone Boards KN518 VoIP Main Board PCB Board certification :
Why Choose Koontech Telephone Boards ?
Kntech is dedicated to engaging in R&D, manufacturing and various types of exclusive emergency communication system.
Products include IPPBX PAGA system, industrial SOS IP telephone, help point station, intercom, as well as large network management command systems.
Such as TR069, SNMP Modbus, TCP protocol, SIP, which applied in metro, tunnel, airports, petrochemicals, metallurgy, nuclear power, marine, ship building, bridge, mine, and special industry.
Based in Shenzhen, the company is a state-level technology enterprise which is certified to be a high-tech one owning high-tech products. The registered capital of the company is 10 million US Dollar.
We established our R&D center, machining spraying plant, integrated manufacturing base in Shenzhen. The factory has a large area of 8,500 square meters.
The corporation strives for building up KNTECH to be a top international brand. We are the only Asian enterprise passing IEC, IECEX and EN50121 authentications in the industry.
Our various products received the authentications from German TUV, European CE, US FCC, ETL, PART68 as well as ISO9001.
We have built up good cooperation with varied international renowned corporations for several years. Including SIEMENS, ABB, THALES, HUAWEI, AVAYA,NEC and ALCATEL.
We have focused on setting up a world brand and establishing a hundred-year store. We make our efforts to develop to be a corporation respected by everyone.
FAQ
Q: What's the MTBF of Parking Access Control Telecom System Voip Pcb Board KN518?
A: 5-70000 hours.
Q: What's the advantages of Koontech IP PCB board compared with others?
A: Most of our products have already passed International Standard such as IECEX,IP65,IP66,FCC,CCC,ISO9000,EMC,ROHS,SGS etc We have enough stocks,shortest lead time,3 to 7 days delivery time.
Preferential price,If you tell us the name of the project and send back the photos of the phone after installation,we will offer more discount.
Q: How long is the warranty period?
A: 18 Months of Parking Access Control Telecom System Voip Pcb Board KN518.
Q: Can I customize the Parking Access Control Telecom System Voip Pcb Board KN518?
A: Yes,we accept OEM\ODM,please provide your detailed requirements.
Thanks for visiting our website, if you have any interest for Parking Access Control Telecom System Voip Pcb Board KN518, welcome to contact us.
We'll supply more details information for what you need, and provide our best price and best service!
| Prod Model: |
KN518 |
| Product Name: |
Koontech SIP Telephone Boards Kn518 VoIP Main Boa |
| Model Number: |
Kn518 |
| Warranty: |
18 Months |
| Operating Temperature: |
-40ºC-+70ºC |
| Video: |
Option |
| Network Protocol: |
SIP 2.0 |
| Voice Code: |
G.711 a/Ulaw |
| ODM: |
Yes |
| Power Supply: |
DC 12V |
| Door Phone: |
RFID Card Reader |
| Metal Coating: |
Copper |
| Mode Of Production: |
SMT |
| Layers: |
Multilayer |
| Base Material: |
FR-4 |
| Certification: |
SGS |
| Customized: |
Customized |
| Condition: |
New |
