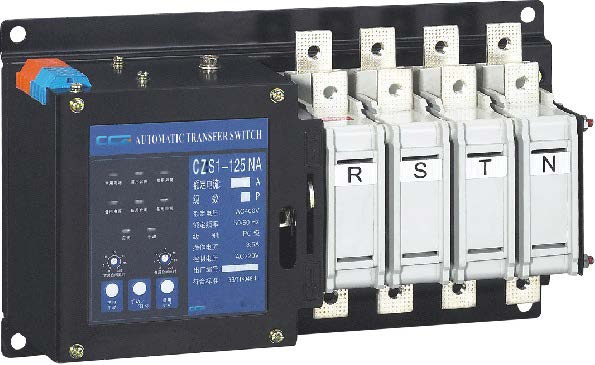

PC Class Two section Automatic transfer switch 16A-125A dual power supply
CZS1 series of PC-class dual-power supply automatic switch (here in after ATSE) is the latest compan y Technology development of high-tech products. It is in line with GB/T14048.1-2006, GB/T14048.
11-2002 supe rscript , And a lso with "high-rise buildings fire norms" and "Architectural Design fire norms ", "emergency Lighting Design Guide, "" civil electrical design specifications. "
Small in volume, convenient in installation
Self-input and self-restoring , Self-input without self-restoring, automatic or manual is all depends on you,you can choose integral type or split type
2 Pole ,3 Pole ,4 Pole all you can choose Running parameter could be adjusted
Rated voltage of 400V,rated current is from 10Amp to 3200Amp
General
With the development of society. People request to the ability of power supply are becoming more and more strictly. Two sources have been used in many conditions to ensure the reliability of power supply. CZS1 series automatic transfer switch is such a new product designed according t o this requirement. As the products has the function of Self-input and sel f-restoring, Self-input without self- restoring, Utility-utility, utility- generator, it can detect the three phases fore wires of utility and the three phase voltage of two sources at the same time. If the primary power is f ailure, suc h as over volt age, under voltage or loss phases, it will changeover from the abnormity power to the normal power automatically .The products system in utility-generator, could be sent out a signal. It's perfect capability, reliable ,flexible easy to use, wide range of dual-power products, up to the domestic level.
Application
CZS1 series ATS are mainly used for the state of a load, widely applicable to the fire, postal comm- unication, hospitals, hotels, Urban rail transport and high-rise buildings, industrial assembly line, television stations need electricity for the important parts. Main power Emergency Power can be power grids, with Self-excitation generator sets, battery, and so on.
Technical Parameter of (NA) Type ATS
| Model | CZS1-32NA | CZS1-40NA | CZS1-63NA | CZS1-125NA |
| Rated current (A) | 16,25,32 | 40 | 63 | 125 |
| Operating current (A) | 3.5 |
| Rated short time current (KA) | 5 |
| Service | Mechanical | 8000 |
| Life Electric | 3000 |
| Pole | 2P | 3P | 4P | 2P | 3P | 4P | 2P | 3P | 4P | 2P | 3P | 4P |
| Weight(kg) | 4.2 | 4.7 | 5.2 | 5 | 5.5 | 6.5 | 5 | 5.5 | 6.5 | 5 | 5.5 | 6.5 |
| Operating Cycle(s/time) | 10 |
