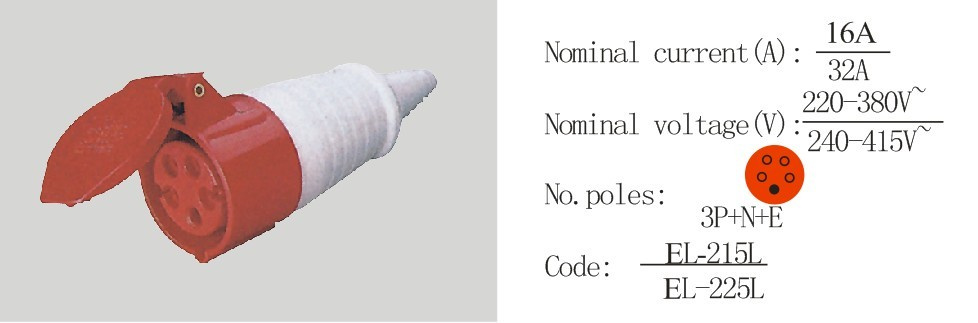

PC Plug Socket Coupling (EL-215L/EL-225L)

Specifications:
Various colors to choose from: Red, blue, black and White
Meets IEC60309 standard
Protection degree: Splash-resistant IP44
Current range: 110, 220, 380 and 500V
Rated current: 16, 32, 63 and 125A
Novel design
Easy to use
Water-resistant standard: IP44, IP67
PVC plugs, socket and coupling are constructed for extreme operating conditions.
They are of easy installation, long life and high reliability
They are widely used since many years ago in the machine, crane, construction industry, trains.


Nominal Current(A)	16A/32A
Norminal Voltage(V)	220-380V~/240-415V~
NO.poles	3P+N+E
Code	EL-215L/EL-225L
Protection Degree	IP44
