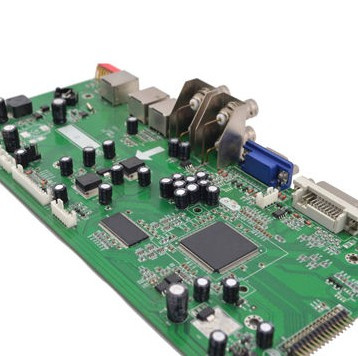

PCB Assembly with HASL Lead-Free Treatment

Product Description

Key Specifications/Special Features:

• We are able to offer one stop 1 to 24-layer PCB fabrication, PCB manufacturing, component sourcing, PCB assembly, PCBA test, reverse engineering service
• FPC fabrication, aluminum base fabrication, high-frequency board fabrication
• PCB board:
• Material: FR4
• Board thickness: 1.6mm
• Surface treatment: HASL lead-free
• Minimum hole: 0.15mm
• Our PCB board manufactured:
• PCB board file with parts list provided by customers
• PCB board made, circuit board parts purchased by us
• Electronic testing circuit board
• Fast delivery, antistatic packaging
• RoHS Directive-compliant, lead-free
• PCB capabilities:
• Testing procedures for PCB board: we perform multiple quality assuring procedures before shipping out any PCB board
• These includes:
• Visual inspection
• Flying probe
• Bed of nails
• Impedance control
• Solderability detection
• Digital metallograghic microscope
• AOI (automated optical inspection)
• Detailed terms for PCB manufacturing:
• Technical requirement for PCB assembly:
• Professional surface-mounting and through-hole soldering technology
• Various sizes like 1206,0805,0603 components SMT technology
• ICT (in-circuit test), FCT (functional circuit test)technology
• PCB assembly with UL, CE, FCC, RoHS approvals
• Nitrogen gas re-flow soldering technology for SMT
• High-standard SMT and solder assembly line
• High-density interconnected board placement technology capacity
• Delivery lead time for PCB board:
• PCB production lead time:
• Sample: 3-4 days
• Mass production: within 7 days
• Component purchase: 2 days if all components is available in our domestic market
• PCB assembly:
• Samples: within 2 days
• Mass production: within 5 days
• Shipping method and payment terms:by DHL, UPS, FedEx, TNT, uses clients account
• We suggest you use our DHL, UPS, FedEx, TNT forwarder
• By EMS (usually for Russia clients), price is high
• By sea for mass quantity
