Welcome to LEFANG Electronics

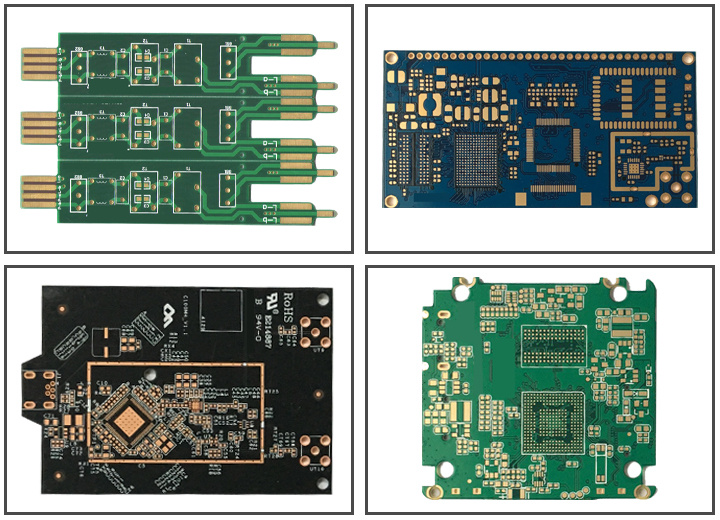

LEFANG is an professional PCB Board Manufacturer since 1999, owns 3 modern Printed Circuit Board factories in Guangdong, China. With over 18 years experience, we offer OEM & ODM PCB Layout, PCB Design, PCB manufacturing, PCB Assembly and PCB Clone in single-sided PCB Board, double-sided PCB and Multilayer Printed Circuit Board service to our customers, with total production capacity of 290,000 sqm/month.Product Show

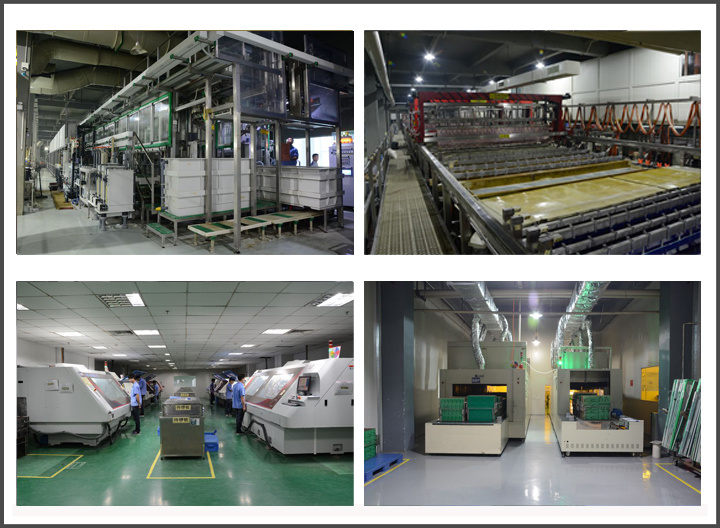

Factory Tour
Our Technical Capacity:| Items | Details |
| Max layer count | 20L |
| Max board thickness | 6.0mm |
| Max aspect ratio | 10:1 |
| Max copper thickness | 6OZ |
| Max dimension | 600x700mm |
| Min thickness of 4 layers PCB | 0.4mm |
| Min hole/ pad | 0.15/0.35mm |
| Hole location accuracy | +/-0.05mm |
| PTH hole tolerance | +/-0.05mm |
| Min line width and line space | 0.065/0.065mm |
| Surface treatment | HASL/HASL lead free, OSP, Immersion gold/silver/tin, gold plating (hard gold and soft gold), silver plating, tin plating, platinum plating, carbon ink, and ENEPIG(electroless nickel - electroless palladium - immersion gold) |
Our Lead Time:| Layer count | Sample lead time/workday | Batch lead time/workday |
| 1-2L | 2 | 6 |
| 4L | 5 | 8 |
| 6L | 5 | 9 |
| 8L | 6 | 10 |
| 10L | 8 | 10 |
| 12L | 8 | 12 |
| 14L | 10 | 15 |
| 16L | 10 | 18 |
| 18-40L | Up to difficulty, at least 18 for sample, 24 for batch |
| HDI, Blind/Buried Hole PCB | Regular Lead Time + 3 workdays |
How to get quick quotation?Step 1. Please send us Gerber file with these format: .CAD/ .Gerber/ .PCB / .DXP/ .P-CAD, etc;
Step 2. Also please provide us the below details for quick quotation:
a) Board material: Fr-4/ CEM-1/ CEM-3/ SY/ KB/ Rogers/High Tg/ copper based/ aluminum based, etc;
b) Board thickness: 0.1-6.0mm;
c) Copper thickness: 0.05 Oz-8Oz (17um-288um)
d) Surface Treatment: OSP/ ENIG/ HASL/ Lead Free HASL/ Immersion Tin/ Immersion Sin
e) Color of solder mask and silk print: Green/ red/ blue/ black/ white/ yellow
f) Board size and quantity
g) BOM(Bill of Materials) list if PCB Assembly
P.S. If you don't have Gerber file, please provide us the imfomation as step 2 or send your PCB sample to us for clone.FAQ (Frequently Asked Questions):Q: Why you can trust our products?A: What LEFANG's vision is to Make Our Customer's Products Better, so we try our best to fulfill the quality control system andenvironmental management system. Our approved certification including ISO9001:2008, ISO14001:2004, ISO/TS16949:2009, OHSAS18000, UL, RoHS, QC080000, CQC. Q: What kinds of test function will be offered?
A: To make sure the production quality, we offer the below testing procedure to guarantee every piece of product:
1) AOI (Automated Optical Inspection)
2) Automatic short-circuit testing
3) RoHS detector
4) Dielectric tester
5) Impedance control
6) Metallographic microscope
7) Fly probe/ fixture mold
8) Visual inspection
Q: What kinds of quality Raw Materials will be used?
A: We use top raw materials as below, ensuring product quality from the source.
Board Brand: ITEQ, SY,KB, Isola, Rogers, Arlon, Nelco, Taconic, Hitachi, etc
Potion: Rohm&Haas, Atotech, Umicore
Printing Ink: Taiyo, Rongda
Dry Film: Asahi, Dupont, Etertec
Q: Can we have a factory tour?
A: Welcome to visit our factory in Guangdong! Please inform us at least a week in advance, so that we could arrange the schedule for you.
Q: How to get the free sample?
A: Please send us the Gerber file and the necessary data information for PCB prototype. Once you make an mass order, the sample fee will be deducted from the total balance.
Q: Could we choose the shipment way we prefect?
A: Sure you can. We have long-term cooperation with DHL, FEDEX, TNT and UPS. If mass production, it could be shipped by sea according to customers' requirement. Any other specific request, please let us know.
Now send your inquiry to us,
and you will be replied within 8 hours.
Win-win cooperation, we pursue!
SHENZHEN LEFANG ELECTRONICS Co., Ltd is a professional company engaged in developing and manufacturing high precision PCB.
Established in 1999, Our Company owns 3 modern factories in Guangdong province. Two mass factories in Dongguan City, close to Shenzhen City. And one factories in Shenzhen where the sales office is located.
With over 100 million dollars investment, the total production capacity of the factories is 290, 000 sqm/month, we are able to meet various needs of customers. Our main product is high precision multilayer circuit board. Also we are experienced in PCBA.
We provide One-stop solution for PCB(Printed Circuit Board) & PCBA manufacturing to our customers home and abroad. High quality products, competitive price, on time delivery, after-sale service are always offered.
In the past decade, we strike to make continuous improvement. Hundreds of advanced equipment and professional technical support provide high quality product. We spent more than 30 million dollars in purchase advanced equipment like VCP, Automatic CCD exposure machine, pressing machine and so on. Efficient management lower the cost. We promise every customer perfect quality product.
We have established complete quality management system in guiding management of quality, production, marketing management and labor resource. Certifications obtained including ISO9001: 2008, ISO 14001: 2004, ISO/TS16949: 2009, CQC, UL, QC080000, OHSA18000 and so on.
We, all of our company members, sincerely appreciate trust and support from our new and old customers home and abroad all the time. At this time when global economy is development rapidly, we do hope to cooperate with all the friends to make a more brilliant future.
