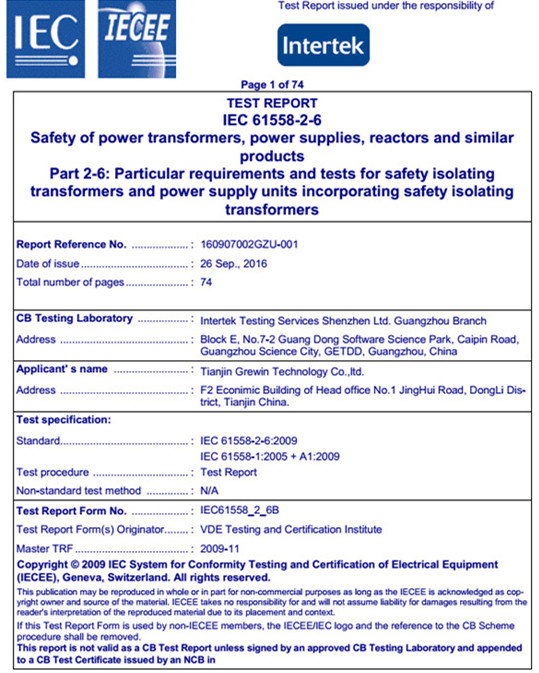

We have passed ISO9001:2015,CE,SGS approval and IEC report
1.Product Specification:
1). Models:
EI28, EI30, EI35, EI48, EI57, EI66, EI86, EI96, EI105, EI114, EI133, EI152, EI162 etc.
2). Maximum output: 1.2W, 2W, 12W, 20W, 35W, 40W, 50W, 90W, 180W, 200W, 400W, 600W, 850W, 1500W, 2400W, 2700W etc.
3). Input:100Vac, 110Vac, 115Vac, 120Vac, 220Vac, 230Vac, 240Vac etc.
4). Output:AC(0--380V); DC(0--50V)
2.Technical ParameterTable:
| Brand Name: | GREWIN Transformer | Mode; | EI | Coil number: | Autotransformer |
| Phase: | Single | Core structure | Lamination | Coil structure: | Toroidal |
| Power: | 0.15-1,500W | Input Voltage | AC380V-240V-230V-220V-120V-110V-100V |
| Application | Instruments ;Communication
products | Output Voltage | AC(0--380V); DC(0--50V) |
| Deliver time | 15 working days | Package | Customized standard cartons |
| ATTENTION: | YOU CAN CUSTOMIZED ALL SERIERS ACCORDING TO YOUR REQUERMENT |
| Model | Power | Dimension(cm) | Weight
(KG) | Voltage
regulation | Approval mark |
A(cm)
±1.5 | B(cm)
±2 | C(cm)
±2 | D(cm)
±2 | E(cm)
±2 |
| GWT-EI28 | 1.5W | 43 | | 30 | 38 | 28 | 0.11 | 35 | CE,TUV, |
| GWT-EI35 | 3.0W | 47 | | 37 | 38 | 33 | 0.15 | 22 | CE,TUV, |
| GWT-EI41 | 11.0W | 54 | | 43 | 47 | 35 | 0.32 | 16.5 | CE,TUV, |
| GWT-EI48 | 25.0W | 62 | | 50 | 65 | 43 | 0.57 | 13.1 | CE,TUV, |
| GWT-EI57 | 40.0W | 73 | | 59 | 65 | 51 | 0.84 | 11.8 | CE,TUV, |
| GWT-EI66 | 80.0W | 83 | | 68 | 80 | 58 | 1.38 | 9.3 | CE,TUV, |
| GWT-EI76 | 140W | 64 | 70 | 76 | 85 | 68 | 2.25 | 7.6 | CE,TUV, |
| GWT-EI86 | 180W | 72 | 75 | 86 | 92 | 73 | 2.82 | 7.1 | CE,TUV, |
| GWT-EI96 | 250W | 80 | 81 | 96 | 90 | 82 | 3.36 | 6 | CE,TUV, |
3.Product Feature :
1). Easy to install.
2). Lower power consumption.
3). Little temperature rising.
4). High accuracy of output voltage.
5). Diemension and output leads can be customized.
6). Dielectronic Strength is high.
4.Application
1). Measuring instruments.
2).Communication prducts.
3). Medical instruments.
4). Audio & Video
5). Elevator
5.Advantage:
1).UL, CUL, CE, ISO9001:2008
2).We offer custom-made transformers, OEM and ODM are welcome
3).We deliver the quality you expect at consistently competitive prices
4).Transformer quality lifetime:10 Years.
5).Specialty Sales service:5 -10 Years
6).Transformers Test: 100% test before the shipment
About us:
1.Tianjin Grewin Technology Co.,ltd. has always laying great emphasis on our core business philosophy "Quality and Honesty First ".2.Terms of Shipment:
Within 10 working days after received related prepayment or L/C.
3.Payment terms:
(1). T/T 100% or 50% deposit by T/T in advance, balance amount to be paid 7 days before
delivery.
(2). By irrevocable L/C at sight, to be issued immediately against confirmed order.
(3). Payment by T/T, if order amount is less than USD 20,000.
4.Production

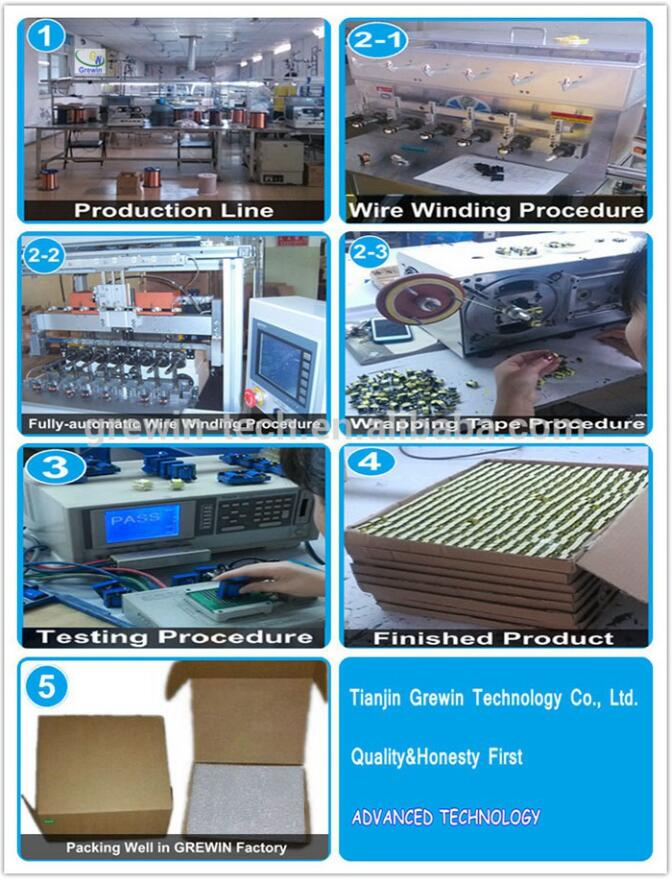

The following picture showed you about all finished transformer production line and package with export standard carton and strong pallets:
5.Flow chart of trading activities:
NO |
Step |
Days need |
1 |
Request for quotation |
1 day |
2 |
Making quotations |
1 day |
3 |
Offer and counter offer |
3 days |
4 |
Sending and receiving samples |
3-10 days |
5 |
Sample confirmation |
3 days |
6 |
Placing a firm order |
1 day |
7 |
Paying and receiving the down payment |
1-4 day |
8 |
Factory production & Quality inspection |
15-20 days |
9 |
Paying and receiving the balance |
4 days |
10 |
Delivery of goods |
1 days |
Contact us:
Cathy
Tianjin Grewin Technology Co.,Ltd.
Tel:86-22-84943756
www.grewin-tech.com
GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.
Our company have many advantages which can be your honesty and reliable supplier:
WHY CHOOSE US?
A. Business philosophy "Quality and Honesty First“
B. Over 40 years experience of transformer designing and producing.
C. Transformer 100% test before the shipment;
D. UL, CE, ISO9001: 2008
E. We offer custom-made transformers, OEM and ODM are welcome
F. We expect at consistently competitive prices
G. Transformer quality lifetime: 10 Years.
H. Professional experiences of the sales and engineers: 5 -10 Years
Grewin Mission: Growing together side by side, Mutual success hand in hand.
We sincerely invite you to join us to create a bright future.
Contact Information:
Tianjin Grewin Technology Co., Ltd.
TEL: +86 22 84943756
Web: www.grewin-tech.com
