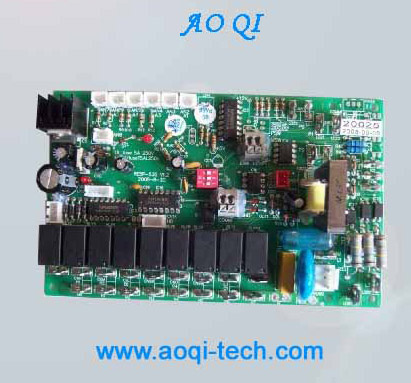

PCB / PCBA Assembly Air Source Heat Pump Controller

Name: PCB / PCBA Assembly Air Source Heat Pump Controller
Brand: all-electronics-online.com
SKU: 687966795
Availability: InStock
Rating: 4.3 (103 reviews)

Price:	Negotiable
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

PCB/PCBA assembly ( air source heat pump controller, water heater temperature control )
1. PCBA controller
2. High quality PCBA
3. PCBA production

PCBA Main Function:
1. Heat/ cool/ auto
2. Temperature control and pump control
3. Defrost, anti-freeze
4. Panel control, 2 wired connect
5. Temperature display and controlling;
6. Compressor start delay protection;
7. Auto drfrosting controlling;
9. Exhaust temperature protection;
9. High and low prossure protection;
10. Real time clock, can set mode
11. On-off state memory when the power off
12. Alarm code display
13. Direction of value can be set, password, etc.

Technical Parameters:
1. Temperature display range: -50~150° C
2. Temperature setting range: 0~100° C ( can restrict setting range )
3. Power supply: AC 220V± 10%
4. Operating environment: Temperature -10° C~50° C, humidity≤ 85%
5. Relay contact capability: Compressor 20A/250VAC, others 2A/250VAC ( pure resistive load )
6. Temperature sensor: NTC R25=25KΩ , B(25/50)=3470K

Main Function:
1. Heat/ cool/ auto
2. Temperature control and pump control
3. Defrost, anti-freeze
4. Panel control, 2 wired connect
5. Temperature display and controlling;
6. Compressor start delay protection;
7. Auto drfrosting controlling;
9. Exhaust temperature protection;
9. High and low prossure protection;
10. Real time clock, can set mode
11. On-off state memory when the power off
12. Alarm code display
13. Direction of value can be set, password, etc.

Technical Parameters:
1. Temperature display range: -50~150° C
2. Temperature setting range: 0~100° C ( can restrict setting range )
3. Power supply: AC 220V± 10%
4. Operating environment: Temperature -10° C~50° C, humidity≤ 85%
5. Relay contact capability: Compressor 20A/250VAC, others 2A/250VAC ( pure resistive load )
6. Temperature sensor: NTC R25=25KΩ , B(25/50)=3470K

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Guangzhou Ou Qi Electronic Co., Ltd locates in Guangzhou. It has convenient transportation, and is near the largest railway station of Asia_Guangzhou south railway station. It's core products include controllers for heat pump, water source heat pump, residential air conditioner, commercial air conditioner and SPA.

Our company cooperated with the College of Automation Science and Engineering of South China University of Technology. We have a lot of experienced senior engineers in designing refrigerating system and electronic control system. With our excellent designing ability and quality controlled system, our controllers were sold to markets in Europe and north American, and gained very good feedback form the customer.

Guangzhou Ou Qi Electronics Co., Ltd. Has always use advanced technology and equipment, and advanced management methods focus on promotion, relying on advanced hardware and management software to participate in market competition. Establish and implement strict management system and quality guarantee system, passed the TUV, CE, UL, CCC safety certification, ISO9001 international quality system certification and ISO14000 international environment system certification ROSH certification.

"Professional, Integrity, Quality, Efficiency" is our business philosophy, "reliable, energy saving, environmental protection, and win-win" is our unswerving pursuit of the goal.

Guangzhou Ou Qi Electronics Co., Ltd. All colleagues willing to work with new and old customers work together to create a new world of green energy.
