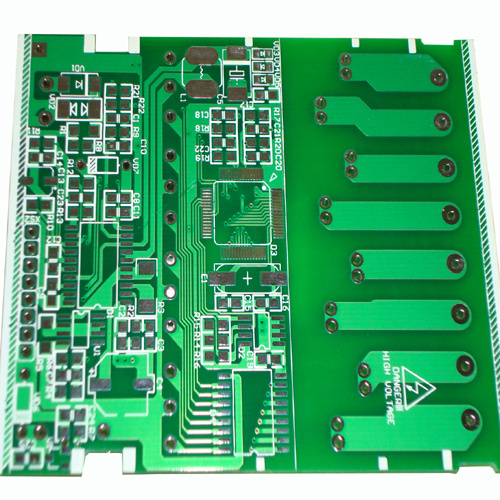

PCB Prototype From PCB Manufacturer

Name: PCB Prototype From PCB Manufacturer
Brand: all-electronics-online.com
SKU: 684638012
Availability: InStock
Rating: 4.8 (143 reviews)

Price:	US $ 0.58-0.69/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Print circuit pcb board products: PCB prototype, Fr4 pcb, single side pcb, double sided pcb, High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly. Immersion gold pcb, HASL lead free

PCB board manufacture and PCB assembly service:
1. PCB board file with parts list provided by customers
2. PCB board made, circuit board parts purchased by us
3. High Quality, competitive Price & Best Service
4.100% E-test
Testing Procedures For PCB Board:
---We perform multiple quality assuring procedures before shipping out any PCB board. These include:
- Visual Inspection
- Flying probe
- Impedance control
- Solder ability detection
- Digital metallogenic microscope
- AOI (Automated Optical Inspection)

Quotation Requirement:

-Following specifications are needed for quotation:
1. Quantity
2. Base material
3. Board thickness
4. Copper thickness
5. Surface treatment
6. Color of solder mask and silkscreen

Shipping Method and Payment terms:

1. By DHL, UPS, FedEx, TNT using clients account.
2. DHL, UPS, FedEx, TNT forwarder of China.
3. We could ship the parcel by Russia Special Air Line for
Russian customer
(No TAX in your there, 3 - 10 days to Moscow, 15-20 days to other city)
4. By sea or air for mass quantity according to customer's requirement.
5. By customer's Forwarder
6. Payment By Paypal, T/T, West Union, etc

Item	Manufacture Capability
Layers	1-26 Layers
Material Types	Fr-4, Fr-5, High-Tg, Halogen Free, Rogers, Isola, Taconic, Arlon Teflon, Aluminum Based
Max. Panel Dimension	39000mil * 47000mil / 1000mm * 1200mm
Outline Tolerance	± 4mil ± 0.10mm
Board Thickness	8mil-236mil
Board Thickness Tolerance	mil-236mil / 0.2mm-6.0mm
Board Thickness Tolerance	± 10%
Dielectric Thickness	3mil-8mil / 0.075mm-0.20mm
Min. Track Width	3mil / 0.075mm
Min. Track Space	3mil / 0.075mm
External Cu Thickness	HOZ-6OZ / 17um~210um
Internal Cu Thickness	HOZ-6OZ / 17um~210um
Drilling Bit Size ( CNC )	6mil-256mil / 0.15mm-6.50mm
Finished Hole Dimension	4mil-236mil / 0.1mm_6.0mm
Hole Tolerance	± 2mil / ± 0.05mm
Hole Position Tolerance	± 2mil / ± 0.05mm
Laser Drilling Hole Size	4mil / 0.1mm
Aspect Ration	12: 1
Solder Mask	Green, Blue, White, Black, Red, Yellow, Purple, etc.
Min Solder mask Bridge	2mil / 0.050mm
Plugged Hole Diameter	8mil-20mil/ 0.20mm-0.50mm
Impedance Control V-scoring	± 10%
Surface Finishing	HASL, HASL(lead Free), Immersion Gold, Immersion Tin, Immersion Silver, OSP, Hard Gold( up to 100u" )

Prod Model:	FL201336
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Board Material:	Fr4
Board Thickness:	1.6mm
Copper Thickness:	1oz
Surface Treatment:	Immersion Gold
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.

Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.

And provides "PCB One-stop PCB solution" to meet customers' diverse demands.

Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.

Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
