PCB Terminal Block with Dual Row Pins 65A/1000V

PCB Terminal Block with Dual Row Pins 65A/1000V
Price: US $ 0.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000000/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: KF136T-10.16
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Battery
Environmental Protection: General
Connection Mode: Threaded Connection
Shape: Rectangle
Contact Termination Form: Welding Connection
Brand: Kefa

Product Description

PCB screw terminal block connector, CIXI KEFA ELECTRONICS Co., Ltd. is a manufacturer specializing in researching new products, mass-producing and selling goods with brands. The company is only 20 kilometers far away from the Hangzhou Bay Bridge which is the longest one in the world, and it is located in the golden tri-economic circle of Shanghai, Hangzhou and Ningbo. The traffic is very convenient and the position is predominant.






KF129R-5.0/5.08/7.5/7.62

Material

Pitch:5.0/5.08/7.5/7.62mm
Poles:2P,3P
Screw:M3,Zinc-plated steel
Pin header:Tin-plated brass
Wire guard:Ni-plated brass,or Zinc-plated steel
Housing:PA66.UL94V-0


Electrical

Rated voltage:300V
Rated current:25A
Withstanding voltage:AC2000V/1Min
Wire range:24-12AWG

Mechanical

Temperature range:-40deg to +105deg
Max soldering:+250deg for 5 sec.
Torque:0.5Nm(4.4 lb.in)
Strip length:6-7mm


Electrical
Wire Range 2.5-16mm²
Rated Current 65A
Rated Voltage 1000V
With Standing Voltage AC3000V/1min
Mechanical
Temperature Range -40deg~+105deg
Max Soldering +250deg for 5 sec.
Torque 1.7Nm(15.0 lb.in)
Strip Length 10mm
Material
Housing PA66.UL94V-0
Pin Header Tin-plated brass
Wire Cage Ni-plated steel
Screws M4,Zinc-plated steel
Demension
Poles 2P,3P
Pitch 10.16mm


Cixi Kefa Electronics Co., Ltd is a manufacturer Founded in 1990 which is a new products development, mass-producing and branding sales' electronic components company, specializing in Terminal block, connectors and precision moulds.

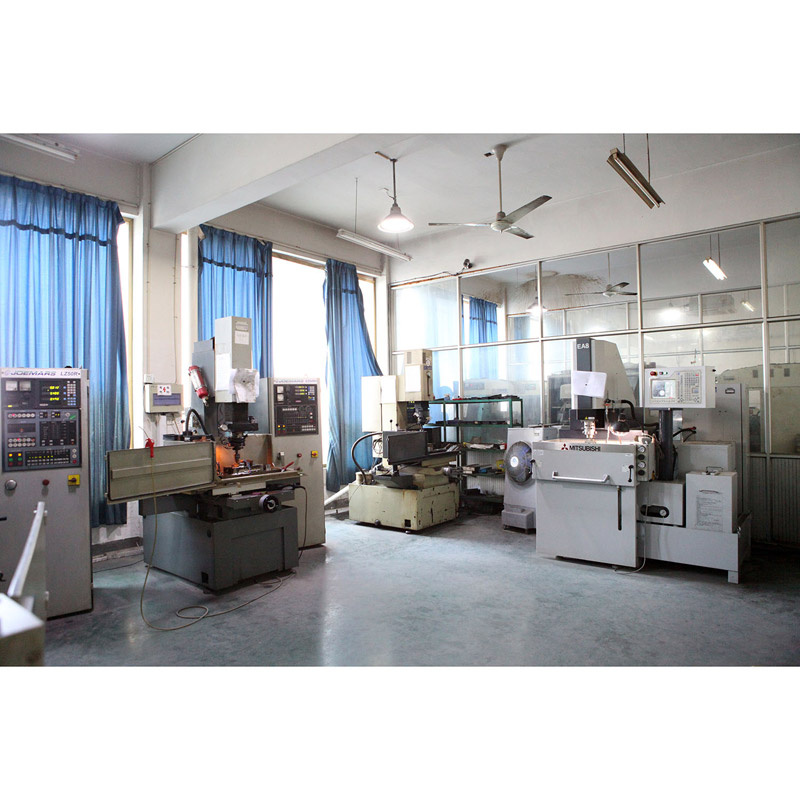

Kefa covers an area of 10000sqms with a building area of 1500sqms, having more than 500 employees, including research and development staff 80.Kefa have established a series of strong departments, like R&D center, Mould workshop, Auto-tapping and Auto assembly.Our R&D center is equipped with advanced CIMS system, Mould workshop equipped with hundreds of high precision devices, like Mitsubishi, etc.To maintain and enhance the workmanship of precise injection, punching, die casting, and cutting.Meanwhile to upgrade the competitiveness in keeping the quality, cost reduction from Computerize working and auto production artwork.

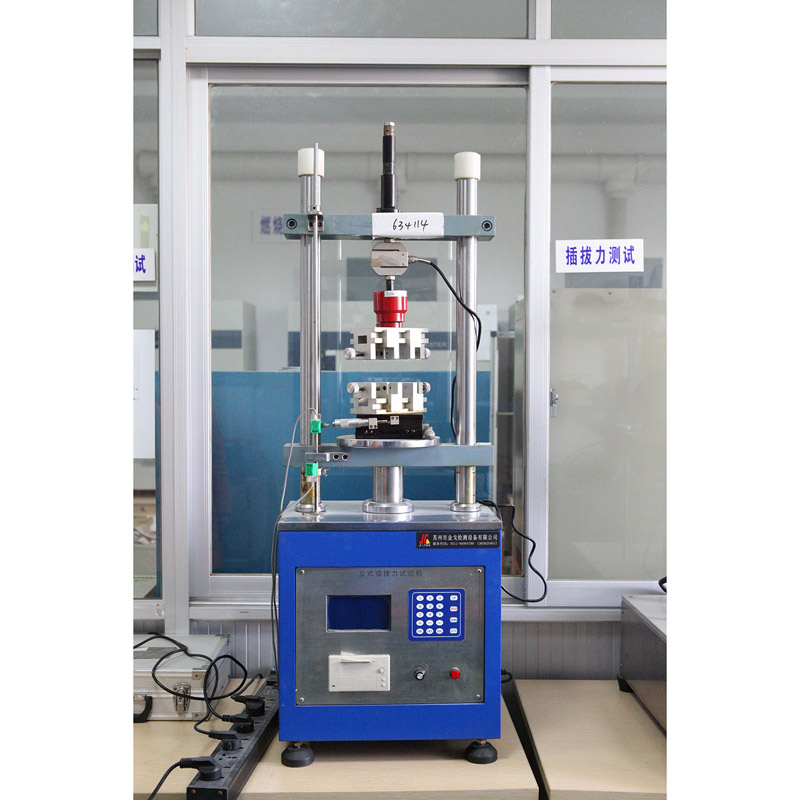

We owned professional laboratory acknowledged by VDE, UL.Our factory have been granted ISO9001, ISO14001 management system certification and we have developed more than 400 types and 5000 specifications of products, our products have been approved by CE, TUV, RoHS, CQC, CB, UL and VDE.We well cooperating with more than 1000 clients in the world, some are the top of world 500 enterprises.

The company pays more attention on the innovation management, and the tenet of the company lies in creating a harmonious situation with the related people and things.Self-discipline and social commitment would embrace everything.
