Product Description

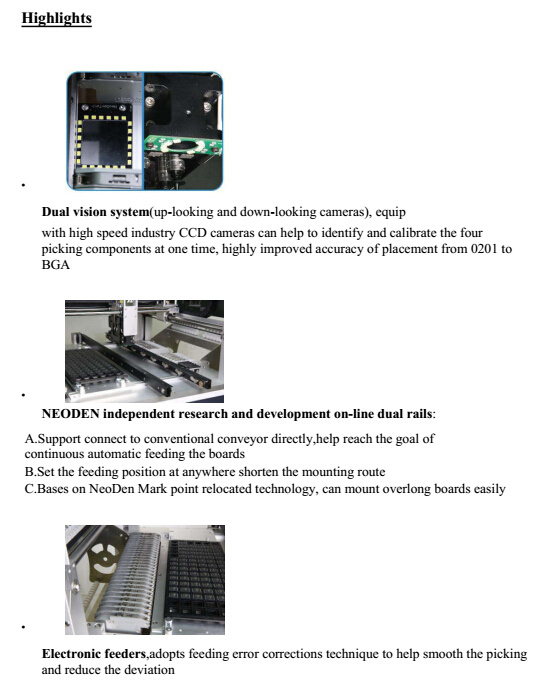

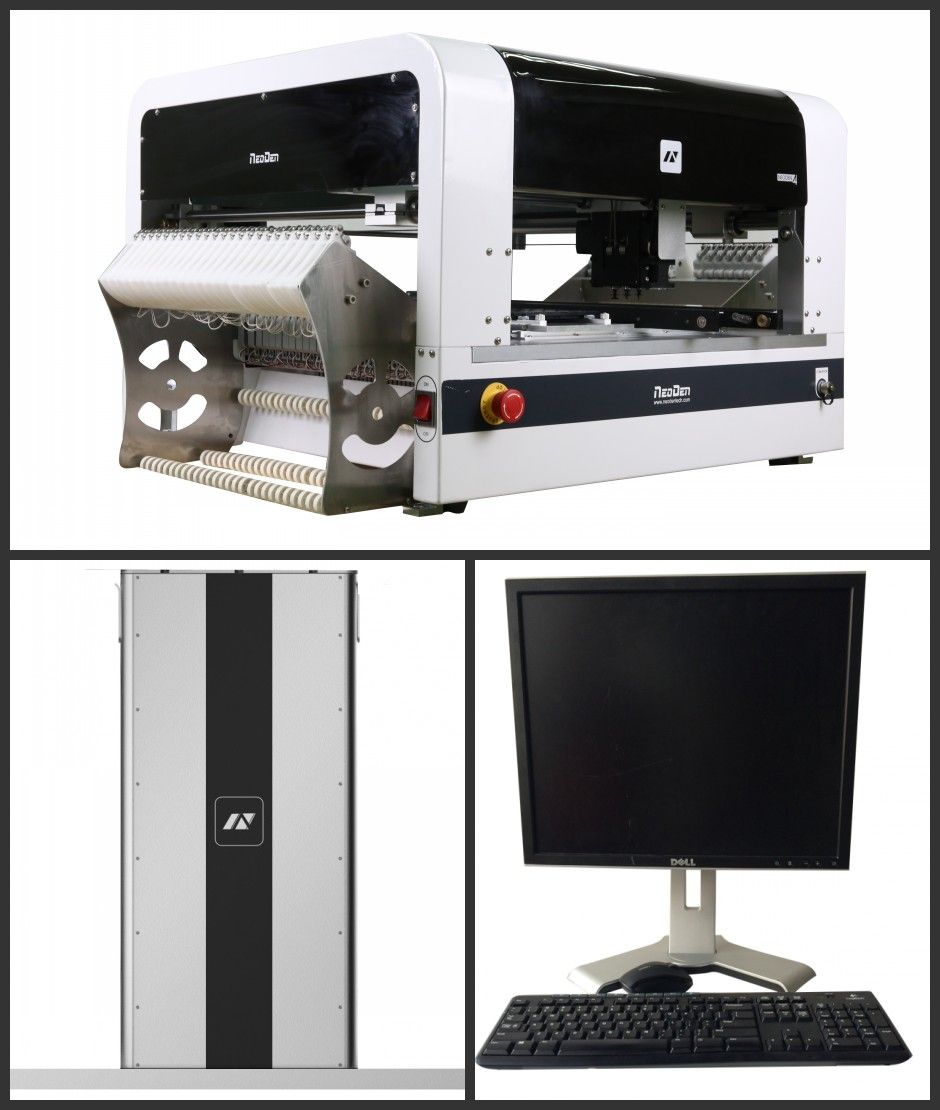

Overlong 1.2m LED strip chip mounter in SMT production line ( with rails)Model No.: Neoden 4
Video show:https://www.youtube.com/c/NeoDenTechnology l
1. could choose machine without rails.
2. could choose feeder size : 8mm, 12mm, 16mm, could be different sizes and qty combination.
3. worktable and computor moditor could choose or not
Specifications:
| Number of Heads with Vision enabled | 4 |
Placement Rate( under factory test
condition) | with vision: 5000cph |
| Feeder capacity | TAPE REEL FEEDERS:48 VIBRATING FEEDERS:5 |
| IC tray capacity/IC | 5 |
| Component sizes with vision | Smallest Component size:0201 |
| Largest Component size:TQFP240 |
| Component Height | 5mm |
| Resolution | X/Y axis:0.01mm ; Z axis:0.1mm |
| Rotation | 360 degree |
| Positioning Accuracy | +/-0.02MM |
| X-Y repeatability | +/-0.02MM |
| Applicable PCB area | With Internal rails:310x1500mm |
|
| Placement Area | Without waffle Tray: 310x1500mm |
| With 1 waffle Tray:140x1500mm |
| Power supply | 110v/220v |
| Power | 180w |
| External Dimensions | Machine :87*68*48CM
Packing size:94*74*60CM |
| Weight | Net Weight:60KGS
Gross weight:80KGS |

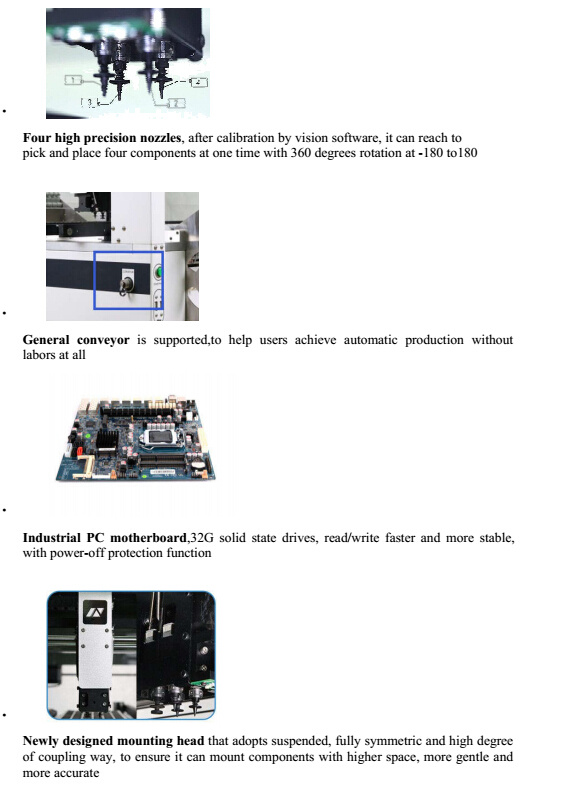

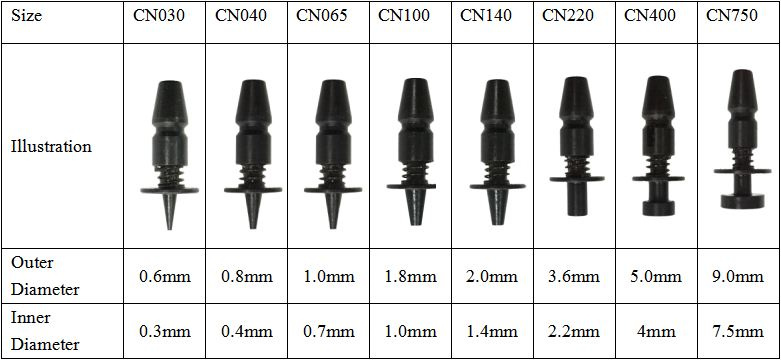

Nozzles available:

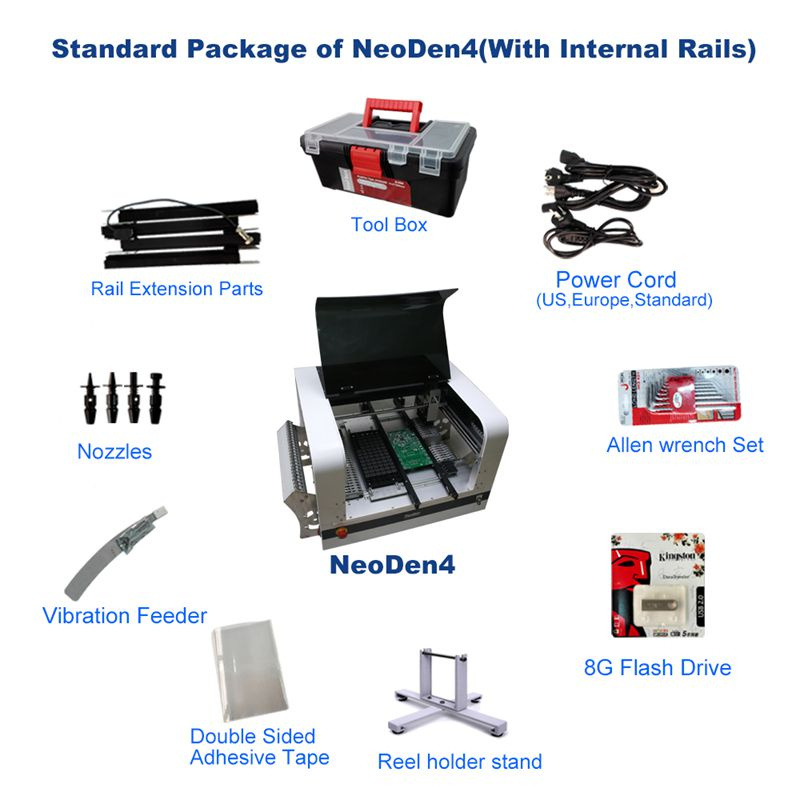

Accessories: 1) Pick and Place Machine NeoDen4: 1
2) Nozzle: Totally 6pcs
3) 8G Flash Drive: 1
4) Power Cord(5M): 1
5) Video training course: 1
6) Double Sided Adhesive Tape: 2
7)Allen wrench Set:5
8)Tool Box:1
9)Reel holder stand:1
10)Vibration Feeder:1
11)Rail Extension Parts:4
12)User Manual:1
Warranty: 2 years since time purchase and lifelong service support, supply customers online Q/A, troubleshooting support.
Shipping: delivered in wooden case and deliver out in 15 days after payment received.
Welcome to contact us more.
Established in 2010, our company is a high-tech corporation locates in West Lake Science and Technology Zone, Hangzhou, China. We are a developer and a manufacturer in the electronic automation industry. Our primary product is a desktop automatic pick and place machine. In China, we are one of the leaders in this industry. Our machine runs a very stable platform while working with precision and high-speed. Our light weight body and user friendly interface has won high praise from our clients.
Our company is innovative in technology:
We are currently researching and developing pick and place machine with visual identification system, auto trail and a multi-function pick and place machine. We will meet and exceed every requirement our clients would request or need.
NeoDen TM220A and NeoDen TM240A are desktop automatic pick and place machines especially developed for research laboratories and small medium manufacturing enterprises to solve the problems of rising labor and equipment maintenance costs. However they are also suitable for the serious hobbyist. These automatic pick and place machines are suitable for small batch production, laboratory research and development, product sample trials, LED SMT processing and other similar processes.
These machines are small, easy to program and operate. They have good mounting capability, high accuracy, reliability and excellent cost performance. You can rely on our machines to consistently produce high volume and stable quality products.
