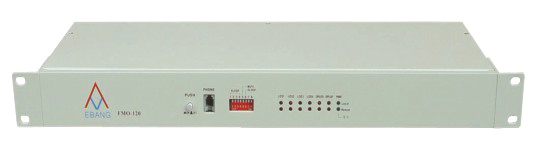

PDH Multiplexer

1+1 series fiber optical MUX is a point-to-point optical transmission equipment developed based on ultra large scale integrated circuit. Support different capacity 4E1/8E1/16E1, provide 1 100M Ethernet interface , RS232 interface, assistant channel and office telephone function. Has perfect alarm, high reliability and stabilization, low power consumption, high integration, easy installation and maintenance. The device is popularly with telecommunication operator.It is suitable in business for communication operator, government and kinds of entities. product character:

Realize monitor of remote equipment from local equipment, (having two row of LEDs, upper row indicate local status, lower row indicate remote status and alarm status.). Based on self - opyright IC. 1/2 Ethernet (10M/100M auto-adapt) optional, Ethernet rate 2.048M, support VLAN. Can connect with 4 E1 optical transmitter and receiver (FMO-120), realize Ethernet data transmit to upper lay. E1 port use digital clock resume circuit and digital phase-lock circuit. Jitter tolerance much better than GB. Provide function of E1 remote loop, order Ethernet remote loop, fiber local loop, and 1 interface of phone(optional). Network manager interface use SNMP or RS485. Two types: standalone, desktop, 19inch;Card,usually be inserted in our rack 19 inch
Fiber interface: FC/SC electric interface: RJ-45(straight through,cross-over) cable type: Cat 5 UTP, transmission distance 100m. fiber single-mode 8.3/125, 8.7/125, 9/125, 10/125um. multi-mode 50/125, 62.5/125, 100/140um. operating temperature: 0-50ºC. storage temperature: -20-+70ºC. humidity: 5%-95%(25ºC no condense). power supply: 220V AC 165-265V AC , 50/60 Hz -48V DC -36--72V DC. power consumption: 5W. dimension(mm): 180(L) x 135(W) x 32(H)
