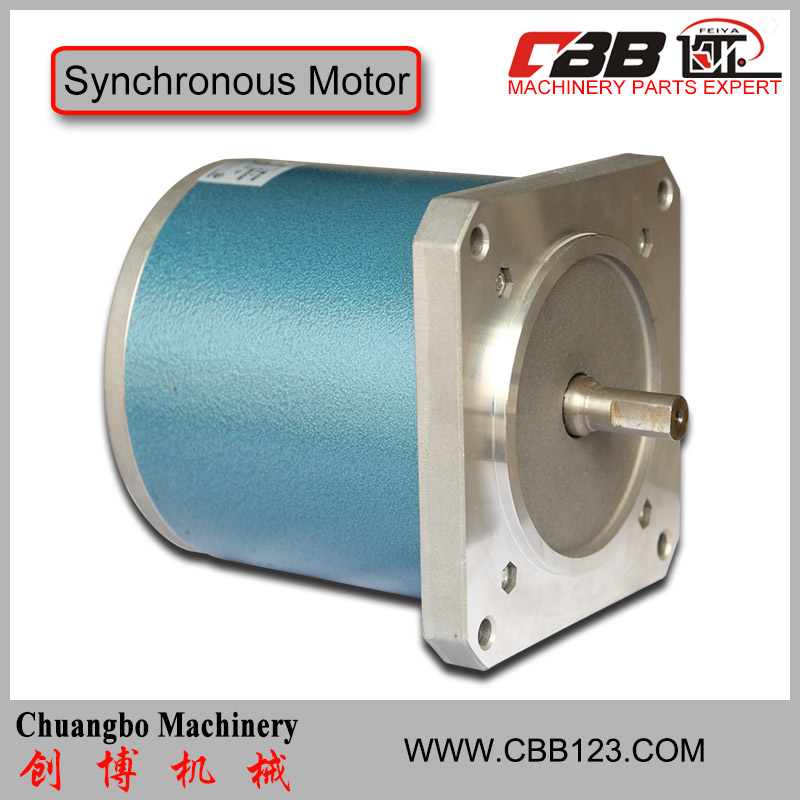

Permanent Magnet Synchronous Motor 90tdy

Name: Permanent Magnet Synchronous Motor 90tdy
Brand: all-electronics-online.com
SKU: 612672314
Availability: InStock
Rating: 4.7 (120 reviews)

Price:	US $ 100-300/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	90TDY060
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	220V
Frequency:	50Hz
Speed:	60 or 115rpm
Model:	55tdy-150tdy
Number Of Poles:	Single-Phase
Operation Mode:	Electric Motor
Operating Speed:	Low Speed
Application:	Industrial
Ventilation:	Closed
Structure:	Rotating Pole Type (',Armature Fixed)
Magnetic Structure:	Permanent Magnet
Brand:	Cbb

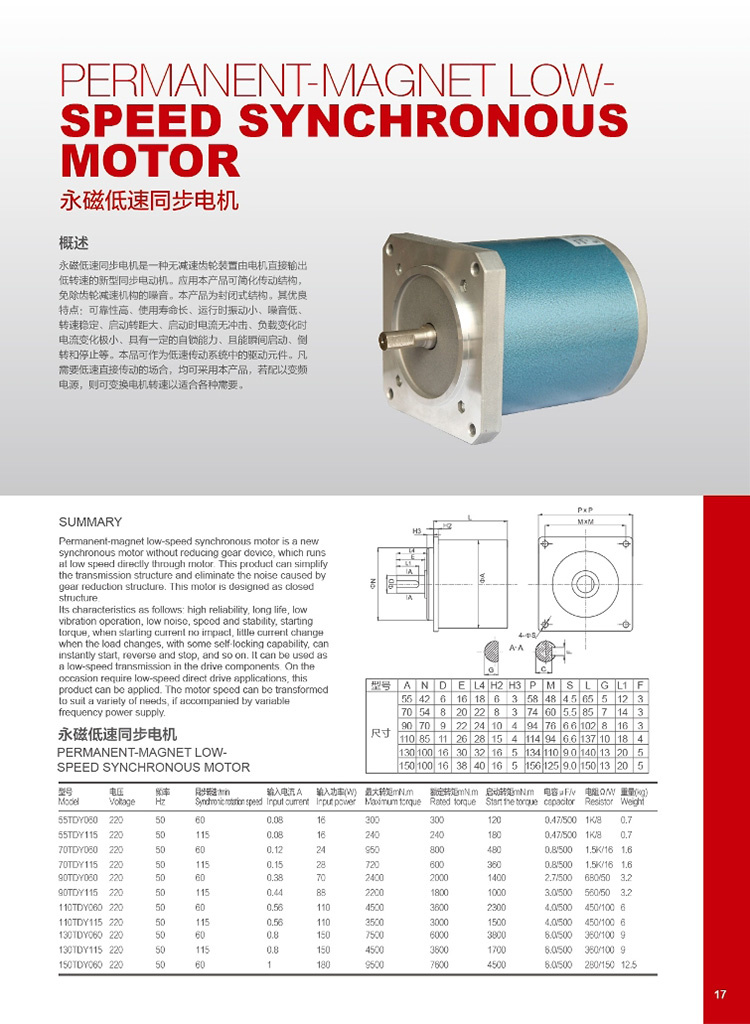

Product Description

Permanent magnet synchronous motor is a new type of low speed synchronous motor, which is a ungeared device can get from motor directly. Using this product can simplified the transmission structure, eliminate the motor institution noise.

This product is a closed structure. The excellent characteristics: High reliability, long operating life, runtime little vibration, low noise, speed stability and big start torque and start-up no impact on the current, when the load changes, the current changes very little, have certain selflocking ability, and it can start momentary, reverse and stop etc.

This product can be used as drive element of the low drive system. Wherever needs low drive directly, this product can be adopted, if match with frequency conversion power, it can transform the motor speed to meet with various needs.

Type	Voltage ( v )	Torque (N. m )	Power (w)	Output Shaft (mm)	Weight (kg)	Capacity (µ F/v)	Resistance (Ω /W)
55TDY4	220	0.27-0.38	16	6	0.7	0.47/400	1/8
70TDY4	220	1-1.2	24	8	1.6	0.8/400	1.5/16
90TDY4	220	2.3-2.8	80	12	3.2	2.7/400	680/50
110TDY4	220	4.0-6.0	110	12	6	4.0/400	450/100
130TDY4	220	8.5	145	16	9	6.0/400	360/100
150TDY4	220	1.2-1.4	200	16	12.5	8.0/400	260/150

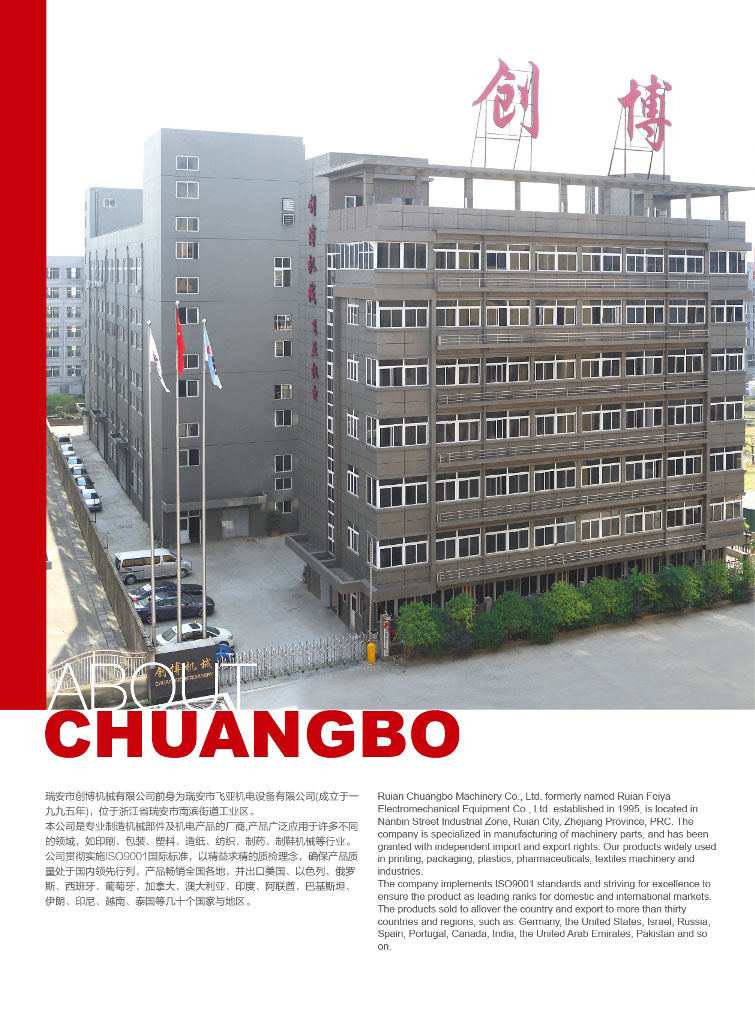

Ruian Chuangbo Machinery Co., Ltd. It was founded in 1995, and is located in the coastal city of southen Zhengjiang_Ruian.
Our company is specializing in producing printing machinery accessories:

Printing Rollers: Aluminum guide roller, chrome steel roller, aluminum reculate pattern roller, rubber roller;

Flatulence Axes: Slip-style inflatable axis, slab-style inflatable inflatable shaft, inflatable-strip key shaft;

Fans: Centrifugal fan, axial-flow fan;

Torque Motor: Torque motor controller, manual tension controller, electrical ink pump;

Other Printing Accessories: Magnetic powder clutch, magnetic powder brake, pneumatic diaphragm pump, pneumatic diaphragm pump, permanent magnent motor etc.

Our company has powerful technical strength, advanced technology, introducing foreign advanced production equipment and detection means. Our products have passed the China National Mandatory Certification(referred to CCC certification), which is issued by China Quality Certification Center.
