| Prod Model: |
HX-10012-A |
| Application: |
Power |
| Phase: |
Three |
Product Description
Here is the DC transfomer for our led swimming pool light
Features :
·Output constant voltage
·Input range 90-265VAC
·Efficiency 83% to 85% max.
·Protections:short circuit/ over current/over load
·Cooling by free air convection
·IP66 design for indoor or outdoor installations .
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·Suitable for dry/damp/wet locations
Specification SAA
Model
KV-12100-AS KV-24100-AS KV-36100-AS KV-48100-AS
Output
DC Current 8.3A 4.16A 2.77A 2.08A
Voltage Tolerance ±0.5V
Output voltage 12V 24V 36V 48V
Rated power 100W 100W 100W 100W
Input
Voltage Range 90~265VAC
Frequency Range 47~63HZ
Power Factor ( Typ.)
>0.95 >0.95 >0.95 >0.95
Full Load Efficiency(Typ.)87%
87%
87% 88% 88%
AC Current(Typ.) 0.79A 0.77A 0.77A 0.77A
Leakage current <0.7mA/220VAC
Protection
Short Circuit Protection type: Hiccup mode, recovers automatically after
fault condition is removed
Over Load <=120%
Over Current <=1.4*Iout
Environ
ment
Working TEMP. -40~+60ºC
Working Humidity 20~95%RH,non-condensing

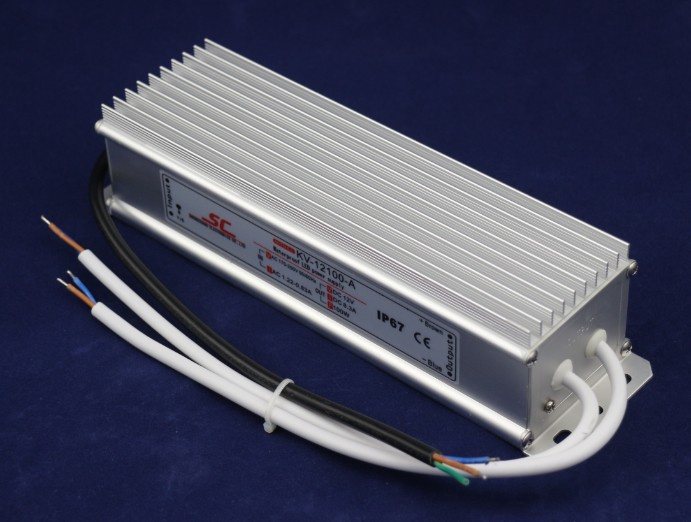

PFC EMC Waterproof Constant Voltage Driver ----100W
Date Sheet :September 22 th ,2014
Subject to change without notice website:http://www.scpower.net.cn
Storage TEM.,Humidity -40~+80ºC,10~95%RH
TEMP.coefficient ±0.03%/ºC(0~50ºC)
Vibration 10~500Hz,5G 12min./1 cycle,period for 72min.each along
X,Y,Z axes
Safety&EMC
Safety standards EN61347-2-13.IP67
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25ºC/70%RH
EMC EMISSION Compliance toEN55015,EN61000-3-2 (>=50%Load)
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry
level
Others
Weight 1.3Kg
Size 230*70*46mm(L*W*H)
packing 329*279*176mm 10PCS
Notes
1. All parameters NOT specially mentioned are measured at 220VAC input , rated
load and
25ºCof ambient temperature.
2.Tolerance:includes set us tolerance,line regulation and load regulation .
