Photovoltaic Solar Cable PV1-F PV Cable

Name: Photovoltaic Solar Cable PV1-F PV Cable
Brand: all-electronics-online.com
SKU: 821139725
Availability: InStock
Rating: 4.5 (121 reviews)

Price:	US $ 0.4-0.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

China Promotion XLPE Insulated PV Solar Electric Power Cable

Description:

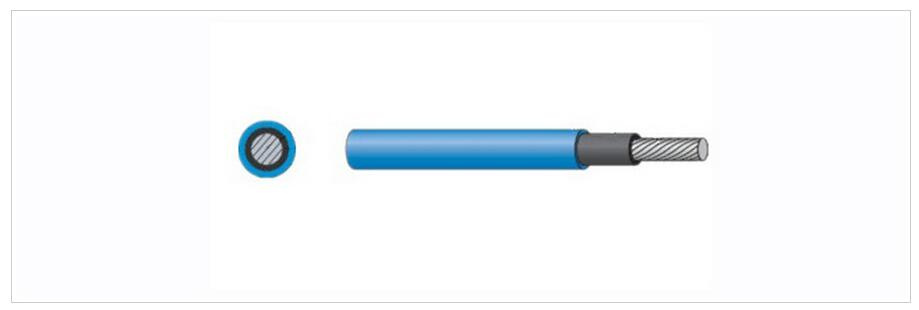

Wire:Stranded tinned copper wire,in accordance with IEC60228,VDE0295 Class 5
Internam insulation:cross-linked polyolefin UL4703
Color code:black,red,blue,yellow,other colors can be customized.
Outer sheath:cross-linked polyolefin UL4703
Sheath colors:black,blue,red,yellow,other colors can be customized.

Feature
Our PV cable features excellet acid and alkali resistance,high and low temperature impact resistance,a long service life,eco-friendly usage and halogen-free operation
Application
This solar PV cable works with solar photovoltaic systems in the communications and broadcast television industries,electrical and meteorology industries,transportation industries sunch as railways,household electrical applicance industries,and solar power plants.In addition,the photovoltaic cable is also used in desert or coastal areas as it is designed to with stand large temperature differences between day and night and humidity.

Product specification and parameters

Core Conductor: Tinned annealed copper (stranded core)

Item				Description&characteristics
Product name				Photovoltaic Solar Cable PV1-F
Rated voltage				AC:600/1000V DC:900/1800V
Insulation material				Special polyolefin, Cross linked
Sheath material				Modified copolymer, Cross linked
Conductor material				Class 5 flexible tinned copper to IEC 60228
Sheath color				Black; Red;
Cross sectional area				1.5mm2~35mm2
Cores				1-core;Twin core; Multi-core
Cable Sizes				Single core:1.5/2.5/4/6/10/16/25/35mm2 ...
				Twin core:2X1.5/2.5/4/6/10/16/25/35mm2 .......
Operating temperature				-40ºC~120ºC
Min bending radius				4 x overall diameter
Packing				100 Meters/Roll or 500Meters/Roll or according to buyer's requirements.
Certification				TUV certificate
Type	Cross section	Strand design	Conductor diameter		Conductor diameter	Outer diameter	Rated voltage	Rated current
	mm²	No.x ø (mm)	mm		Ω /km	mm	VAC/DC	A
PV-1*1.5 mm²	1.5	30x ø 0.25	1.6		13.9	4.5	1000/1800	20
PV-1*2.5 mm²	2.5	48x ø 0.25	2.0		8.06	5.3	1000/1800	30
PV-1*4.0 mm²	4.0	56x ø 0.3	2.6		4.97	6.2	1000/1800	50
PV-1*6.0 mm²	6.0	81x ø 0.3	3.3		3.52	7.2	1000/1800	70
PV-1*10.0 mm²	10.0	200x ø 0.25	4.4		2.12	8.3	1000/1800	95
PV-1*16 mm²	16.0	224x ø 0.3	5.2		1.95	9.5	1000/1800	140

Type	Cross section	Strand design	Conductor diameter	Conductor diameter	Outer diameter	Rated voltage	Rated current
Type	mm²	No.x ø (mm)	mm	Ω /km	mm	VAC/DC	A
PV-2*1.5 mm²	1.5	30x ø 0.25	1.6	13.9	4.5	1000/1800	20
PV-2*2.5 mm²	2.5	48x ø 0.25	2.0	8.06	5.3	1000/1800	30
PV-2*4.0 mm²	4.0	56x ø 0.3	2.6	4.97	6.2	1000/1800	50
PV-2*6.0 mm²	6.0	81x ø 0.3	3.3	3.52	7.2	1000/1800	70
PV-2*10.0 mm²	10.0	200x ø 0.25	4.4	2.12	8.3	1000/1800	95
PV-2*16 mm²	16.0	224x ø 0.3	5.2	1.95	9.5	1000/1800	140

1)Q:How can i trust your company?
    A:Golden electric is The top 10 ATS manufacture in China - more than 350 Agents in local market and more than 100 foreign  clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
     A: Golden electric is factory for solar PV cable,Automatic transfer swithc,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3)  Q:   Do you have forwarder?
      A:   Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4)  Q:   Your address ?
      A:    Locates in Guangzhou province, China,welcome to visit us
5)  Q:What's the automatic transfer switch(ATS) guarantee?
       A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6)  Q:What's about MOQ? Delivery time ?
      A: 1meter for PV cable. Normally less than 1000meters with stock, quick support.
7)  Q: What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
8)   Q:What's your contact information ?

Contact us Today to place your order for PV cable ! waiting for your inquiry ~

Prod Model:	PV1-F
Nominal Voltage:	600/1000VDC
Test Voltage:	6500V, 50Hz, 5minutes
Conductor Standard:	VDE 0295/IEC 60228, Class5
Ambient Temperature:	25 Years (TUV)
Fire-Resistance Performance:	IEC 60332-1
Low Fire Load:	DIN 51900

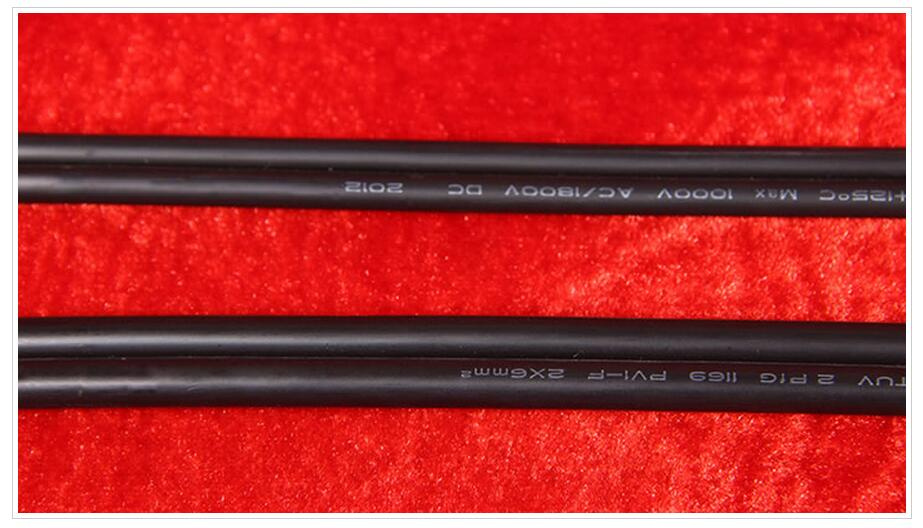

Approvals:	TUV 2pfg 1169/08.2007 PV1-F
Bending Radius:	Fixed Installation>4X, Occasionally Moved>5X
Number Of Cores:	Single Core/Twins Core
Item Name:	XLPE Insulated PV Solar Electric Power Cable
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	XLPE
Certification:	RoHS
Range Of Application:	Photovoltaic Power Station
Brand:	Golden Electric/OEM
Sheath Material:	XLPE
Conductor Material:	Tinned Copper
Application:	Solar PV System
