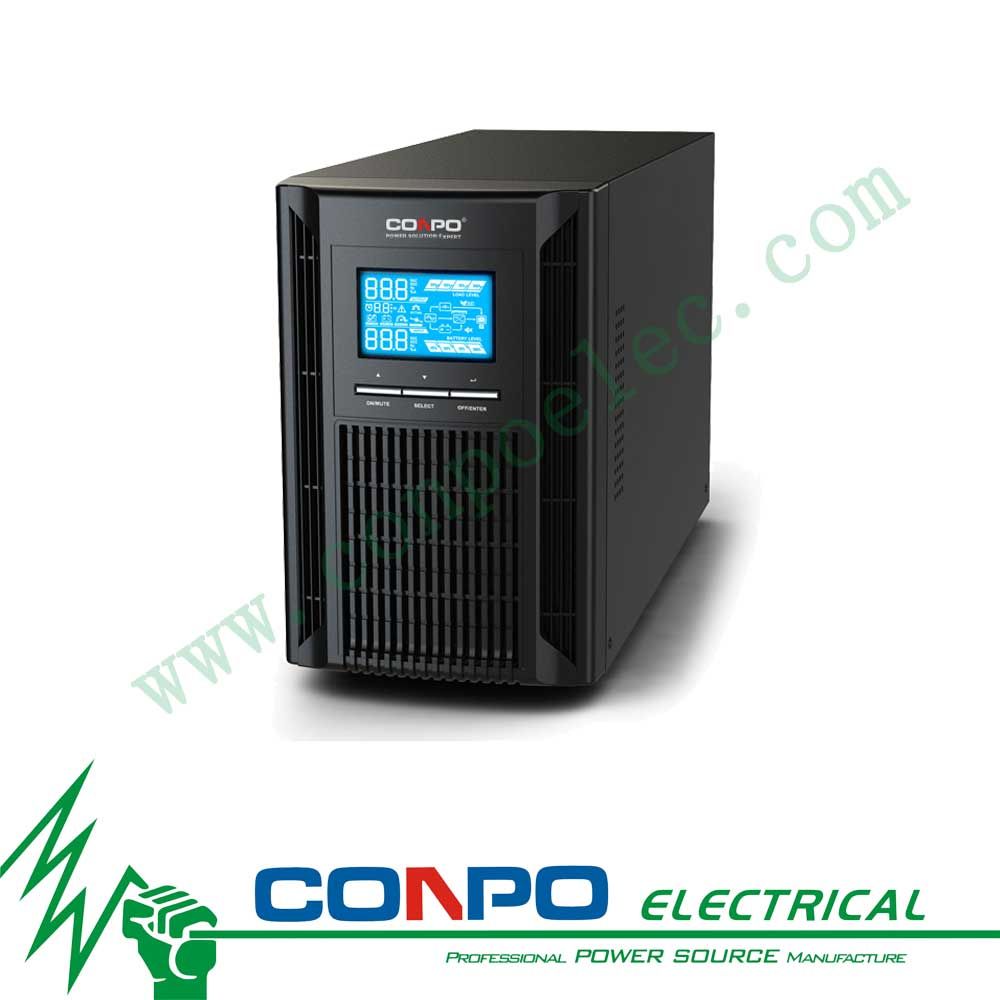

Pht1102 2000va/1600W Tower Online Hf UPS
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
System overviewVenus PHT series is double-conversion high frequency online UPS with a output power factor 0.8. Specifically designed for operation in poor power areas. They provides high power density with long backup time in compact size. It's ideal for ATMs, banking and other business critical applications. Users also can adjust charging current from 1A to 6A according to different applications. Venus PHT series also have USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards. Range of applicationsData Processing Center , Office Automation, Telecom System , Network Rooms , Education System , National Defense System, Medical Equipment
Financial System, Securities System Main Features1.True double-conversion online UPS
A true double conversion UPS will provide clean, high level quality power to fully protect mission-critical devices such as sensitive networks, small computer centers, servers, telecom applications, as well as for industrial applications. 2. Output power factor 0.8
Compared to the online UPS in the current market, Venus series UPS provides better output power factor up to 0.8. It offers higher performance and efficiency for critical applications. 3. Wide input voltage range (110V-300V)
Venus series can still provide stable power to connected devices under unstable power environments. 4. 50/60 Hz Frequency Converter Mode
Lock output frequency at 50Hz or 60Hz to suit power sensitive equipments. 5. ECO mode operation for energy saving
Offers efficiency as high as 97% to cut energy usage &cost. UPS power application via static bypass, timely returning to online double conversion when the need arises. 6.Emergency Power Off (EPO) Function
This feature can secure the personnel and equipment in case of fires or other emergencies. 7.USB+RS232+RJ45+SNMP,multiple communication for 1-3K models
This feature allows either USB,RS232 or RJ45 communication port to work with SNMP interface simultaneously. Monitoring Software • UPS can be connected to the computer via USB or Rs232 interface. So it can be realized LAN monitoring single or many sets of UPS, it also can monitor the other ups which connected to the computer via LAN. • UPS monitoring software has more than 10 kinds of language for choice. • Humanized operation interface, which is powerful and can shows the battery voltage, frequency, load, temperature and other data by real-time monitoring through the charts. • Alarm of different power incident could be set by radio, mobile phone text messages, e-mails and SNMP etc. Specifications| Venus series Tower Online High Frequency UPS |
| MODEL | PHT1101 | PHT1102 | PHT1103 |
| CAPACITY | 1000VA / 800W | 2000VA / 1600W | 3000VA / 2400W |
| Battery Voltage | 36V | 72V |
| Size, D X W X H (mm) | 282 X 145 X 220 | 397 X 145 X 220 |
| Net Weight (kg) | 4.1 | 6.8 | 7.4 |
| INPUT |
| Voltage Range | Low Line Transfer | 160VAC/140VAC/120VAC/110VAC±5% |
| Low Line Comeback | 175VAC/155VAC/135VAC/125VAC ± 5 % |
| High Line Transfer | 300 VAC ± 5 % |
| High Line Comeback | 290 VAC ± 5 % |
| Frequency Range | 40Hz ~ 70 Hz |
| Phase | Single phase with ground |
| Power Factor | >= 0.99 @ nominal voltage (input voltage) |
| OUTPUT |
| Output voltage | 200/208/220/230/240VAC |
| AC Voltage Regulation | ± 1% (Batter Mode) |
Frequency Range
(Synchronized Range) | 47Hz ~ 53 Hz @ 50Hz
57Hz ~ 63 Hz @ 60Hz |
| Frequency Range (Batter Mode) | 50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz |
| Overload | 105%~110%: UPS shuts down after 10 min at battery mode or transfer to bypass when the utility is normal
110%~130%: UPS shuts down after 1min at battery mode or transfer to bypass when the utility is normal
>130%:UPS shuts down after 3seconds at battery mode or transfer to bypass when the utility is normal |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | <= 3 % THD (Linear Load);<= 5% THD (Non-linear Load) |
| Transfer Time | AC Mode to Batter Mode | 0 ms |
| Inverter to Bypass | 4 ms |
| Waveform (Batter Mode) | Pure Sine Wave |
| EFFICIENCY |
| AC Mode | 88% | 89% | 90% |
| Battery Mode | 83% | 87% | 88% |
| |
| Battery Type | Depending on applications |
| Battery Numbers | Depending on applications |
| Recharge Time | Depending on applications |
| Charging Current | 1.0A/2.0A/4.0A/6.0 A |
| Charging Voltage | 41.0VDC ± 1% | 82.1 VDC ±1% | 82.1 VDC ±1% |
| ENVIRONMENT |
| Operation Humidity | 20-90 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 50dBA @ 1 Meter |
| MANAGEMENT |
| Smart RS-232 or USB | Windows® 2000/2003/XP/Vista/2008,Windows® 7/8,Linux,Unix,MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
| Remarks: | Products specifications are subject to change without notice! |
| Prod Model: |
PHT1102 |
| Phase: |
Single Phase |
| Type: |
Tower Online Hf UPS |
| Protection: |
Full Protections |
| Application: |
Industrial/Medical/Office/Army/Security Area etc. |
| Classification: |
Venus Series Tower Online Hf UPS |
| Brand: |
Conpo |
