| Prod Model: |
CD101 REX-C100 CH102 CD901 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy: |
0.5%F.S |
| Temperature Range: |
-50~1300c |
| Color: |
Black |
| Sampling Period: |
0.5s |
| Installation Hole (Mm): |
44X44; 92X92 or Other |
| Input Signal: Thermoouple: |
E, K, S, B |
| Working Power: |
AC110V, 220V, 380V, 50/60Hz |
| Measurement Accuracy: |
+/- 0.5%Fs |
| Resolution: |
14bit; |
| Process Value (PV), Setting Value (Sv): |
-1999 ~ +9999 |
| Control Type: |
Digital |
| Type: |
Temperature Sensor |
| Control Method: |
Steam Pressure Type |
| Operating Principle: |
Semiconductor Refrigeration Equipment |
| Cooling Purpose: |
Test |
| Usage: |
Industrial Control |
| Material: |
Plastic |
Product Description

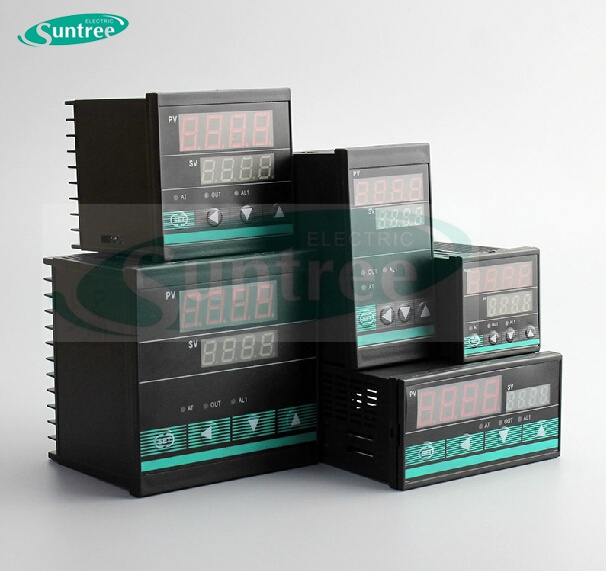

Pid Digital Temperature Controller Universal Input, Analog, Relay, SSR 4-20mA Output Mold Temperature Controller
Product Description
Main feature:
1. Input signal: Thermoouple: E, K, S, B
Thermal resistance: Cu50, PT100
2. Accuracy: +/- 1.0% F. S, +/- 1 word
3. Control way: Two phase or time rate adjustment
4. Control output: Relay
5. Alarm function: High alarm function
6. Working power: AC110V, 220V, 380V, 50/60Hz
7. Outline dimension: 96 x 96 x 150mm
8. Install dimension: 92 x 92mm
Main Technical Index
1. Input
Refer to table B for Thermocouple (TC), Resistance Temperature Detector (RTD),
Standard Current and Voltage signals.
2. Accuracy
Measurement Accuracy: +/- 0.5%FS;
Compensation error of cold terminal: +/- 2°C (amend within -~50°C by software);
Resolution: 14bit;
Sampling period: 0.5 Sec.
3. Display
Process Value (PV), Setting Value (SV): -1999 ~ +9999
Output, Alarm, Auto setting state indicated by: LED
4. Control way
*(1)PID Control (including ON/OFF, position PID and continuous PID);
*(2)Auto Setting Control
5. Setting Range
Setting Value (SV): Same range with PV;
Proportional Band (P): 0~full range (ON/OFF Control when set to 0);
Integration Time (I): 0~3600Sec (No integral action when set to 0);
Derivative Time (D): 0~3600Sec (No derivative action when set to 0);
Proportional Period: 1~100Sec;
On-off control output hysteretic loop width: 1~100°C (or other PV units).
6. Other Parameters
*(1)Insulation resistance: >50M(500VDC);
*(2)Insulation strength: 1500V AC/min;
*(3)Power consumption: <10V;
*(4)Service environment: 0~50°C, 0~85RH, no corrosive gas;
*(5)Weight: ~ 0.5Kg (C900type).
(1)Outline dimension
|
See the outline dimension picture
|
|
(2)Control Mode
|
F:PID operation and auto calculating (reverse operation)
|
D:PID operation and auto calculating(Forward operation)
|
W: heating/cooling PID operation and auto calculating(cooling water)*1
|
A: heating/cooling PID operation and auto calculating(cooling wind)*1
|
(3)Input mode
|
Refer to Input Range Table
|
|
(4)Range Code
|
Refer to Input Range Table
|
|

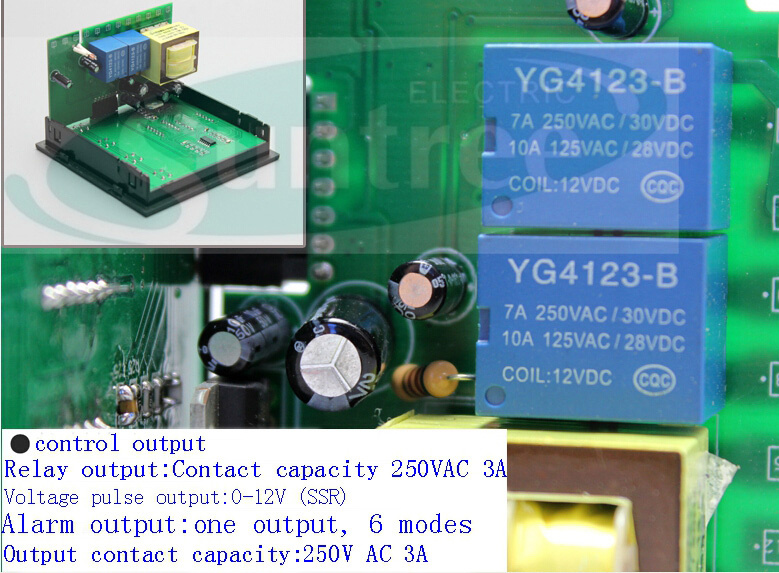

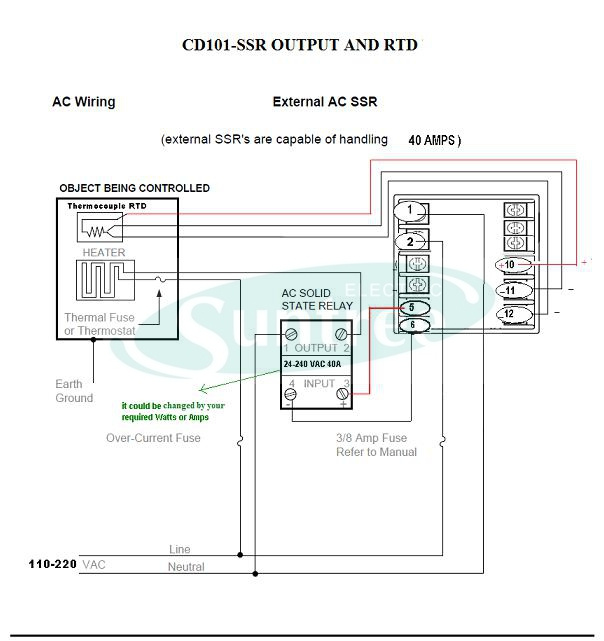

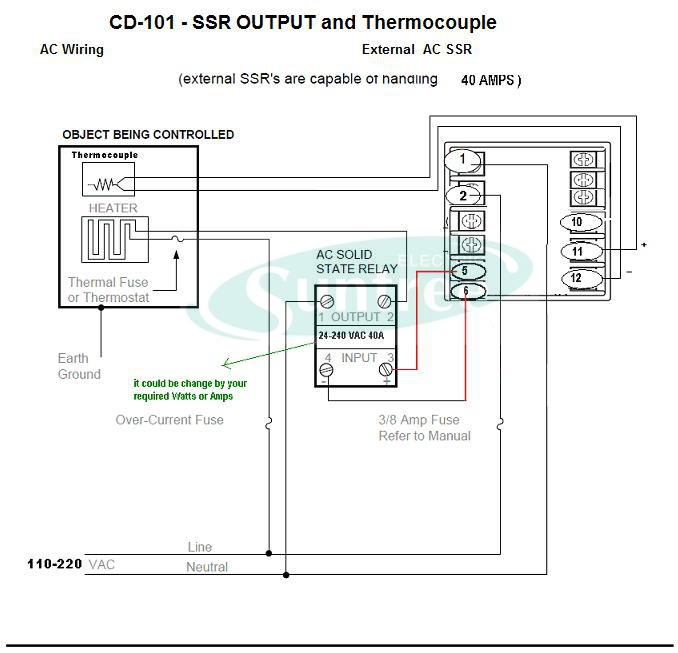

(5)First control output(OUT1)
(Heating side)
|
M: Relay contact output
|
8: Current output(IC4-20mA)
|
V: Voltage impulse output
|
G: Thyratron driving & triggering output
|
T: Thyratron output
|
|
(6)Second controloutput (OUT2)
(Cooling side)*2
|
No mark: when the control mode is F or D
|
|
M: Relay contact output
|
T: Thyratron output
|
V: Voltage impulse output
|
8: Current output(IC 4-20mA)
|
(7)First alarm
(ALM1)
(8)Second alarm
(ALM2)*2
|
N: no alarm
|
|
A: Upper-limit deviation alarm
|
J: lower-limit input alarm
|
B: Lower-limit bias alarm
|
K: Standby upper-limit input alarm attached
|
C: Upper/lower limit bias alarm
|
L: Standby lower-limit input alarm attached
|
D: alarm in area
|
P: Heater line breakage alarm(CTL-6)*3
|
E: Standby upper-limit bias alarm attached
|
S: Heater line breakage alarm(CTL-12)*3
|
F: Standby lower-limit bias alarm attached
|
R: Control line breakage alarm *4
|
G: Standby upper/lower limit bias alarm
|
V: Upper-limit setting alarm
|
H: Upper-limit input value alarm
|
W: Lower-limit set value alarm
|
(9)Communication*5
|
N: No communication
|
|
(10)Water-proof/dust-proof
|
N: no water-proof/dust-proof
|
|
Refer to Input Range Table
| Input type
| Set range
| Input type
| Set range
|
(TC)
Thermocouple Input(TC)
| K
|
0 to 1372°c(0 to 2502°F)
| J
|
0 to 1200°c(0 to 2192°F)
|
R
|
0 to 1769°c(0 to 3216°F)
| S
|
0 to 1769°c(0 to 3216°F)
|
B
|
0 to 1820°c(0 to 3308°F)
| E
|
0 to 1000°c(0 to 1832°F)
|
N
|
0 to 1300°c(0 to 2372°F)
| T
|
-199.9 to +400.0°c(-199.9 to +752.0°F)
|
W5Re/W26Re
|
0 to 2320°c(0 to 4208)
| PL
|
0 to 1390°c(0 to 2534°F)
|
L
|
0 to 900°c(0 to 1652°F)
| U
|
-199.9 to +600.0°c(-199.9 to +999.9°F)
|
RTD Input
| Pt100 Ω( JIS/IEC )
|
-199.9 to +649.0°c
(-199.9 to +999.9°F)
| JPt100 Ω( JIS )
|
-199.9 to +649.0°c
(-199.9 to +999.9°F)
|
Voltage input
|
0 to 5V DC
|
1 to 5V DC
|
-1999 to +9999(programmable range)
|
Current input
|
0 to 20mADC
|
4 to 20mADC
|
-1999 to +9999(programmable range)
|
