Prod Model: |
XMTD-618 |
Size: |
72*72 |
Control Type: |
Digital |
Type: |
Temperature Controller |
Control Method: |
Electronic Type |
Usage: |
Temperature Control |
Product Description
Specifications
Temperature controller
On/off
PID control

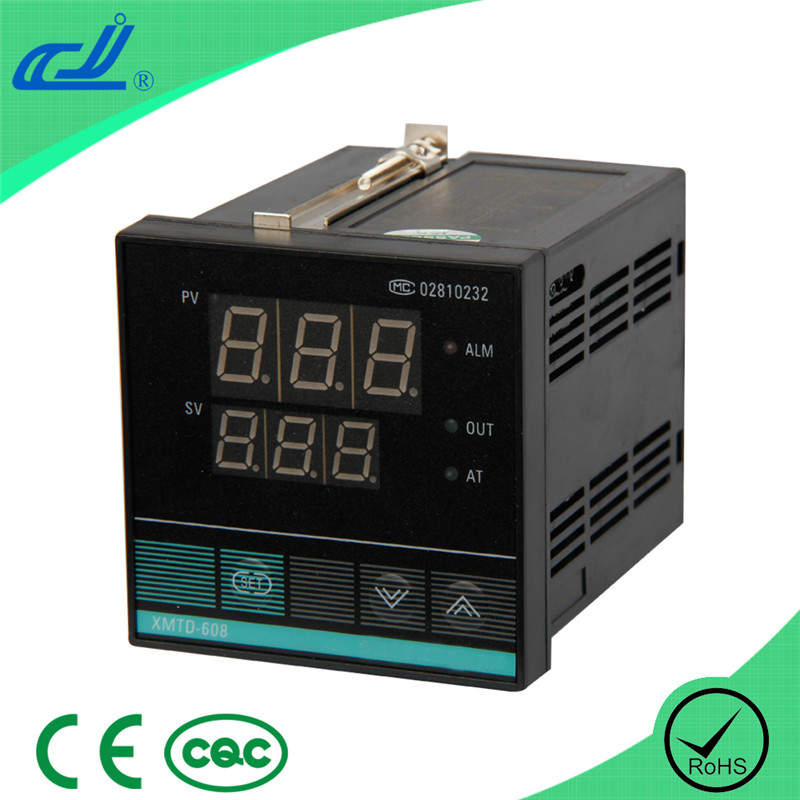

Temperature meter are dual row 3-LED display
Input: CU50; PT100; J; E; K; T
XMT*608 series intelligent temperature controller, is double row 3-LED display and include on/off, PID control, including with parameter of self-setting function. This temperature meter respectively display temperature measurement value (PV) and temperature set value (SV) under normal mode; When it is time temperature control, respectively display temperature measurement value (PV) and running time count down (SV), and also provide kinds of time control method selection; The controller can input kinds of signal which are used interchangeably, it adopt ON/OFFP=0PID control, allowing an easy parameter setting and convenient inputting, is widely used over temperature automatic control systems of machinerychemicalceramicslight industrialmetallurgypetrifaction and heat treatment and so on.
Main technical Indexes
1, Measurement deviation: ± 0.5%F· S± 1B, Cold end compensating deviation≤ ± 2C
2, Input(can be selected): CU50(-50~150), PT100(-199~600), K(-30~999),
E(-30~700), J(-30~900), T(199~400)
3, Relay output contact capacity: AC220V 5A(resistance load)
Period 2~120s can be adjusted.
4, Drivng solid relay signal output: Driving electric current >15m A voltage >9V,
Period is 2S
5, Power: AC85V~242V, 50/60Hz
6, Work environment: Temperature 0~50.0C, relative humidity≤ 85%RH, without corrode and strong electric radiation.
Model sense
XMT( )-6 ( ) 8 ( )
1 2 3 4 5
1:External size and Installation hole(mm)
Empty 160×80×90 152×76 A 96×96×90 92×92
D 72×72×90 68×68 E 48×96×90 44×92
F 96×48×90 92×44 G 48×48×100 44×44
S 80×160×90 76×152 B 60×120×90 56×116
C 80×120×35 wall set installation
2. Operation display method:'6': 3-key gentel push-switch setting, double row digital display, have PID adjustment
3. An additional alarm:
Blank or '0': indicates no alarm;'1': High limit touch alarm;'2': low limit touch alarm
4. Input signal classification: '8' : Input signal can interchange free
5. Suffix: None: relay output G: solid state relay output
Series | Code | Name | Setting range | Remark | Ex-Factory |
First
Menu | 0 | - | Appointed data | Determined by and | Press∧or∨for 3 second and set the temperature setting value you need | - |
1 | AL | High/Low-limit alarm | Determined by and | - | Random |
2 | SC | Measurement deviation | -20.0~20.0 | Measuring value can be modified through increasing or decreasing this data. | 0 |
3 | P | Proportion time | 0~99.9~200 | When the P↑,the proportion and differential function↓;If the P↓,the proportion and differential function↑ When P=0,the meter is ON/OFF control. | 15.0 |
4 | I | Calculus time | 0~999 | It's used to adjust static difference. To increse it,the static difference will be reduced, but if it is too high, the static difference will drift instability. | 240 |
5 | d | Differential time | 0~200 | | 30 |
6 | t | Control period | 2~120S | When it leaves factory, SSR is 2s; Relay is 20s. When P=0, it makes no sense. | 20 |
7 | Hy | Main control by drop in level | 0.1~50.0 | It only controls at ON/OFF | 1.0 |
8 | At | Parameter setting itself | / | OFF_shut itself function ; ON_open itself function Select ' ON'only can adjust for one time,and then turn back to 'OFF ' | OFF |
9 | Loc | Electronics lock | 0~50 | Loc=0 all the parameter can be revised Loc=1 only the appointed data can be revised | 0 |
|
Second
Menu | 10 | Loc | Electronics lock | 0~50 | idem | 0 |
11 | Sn | Input type | - | CU50\PT100\K\E\J(\T; | K |
12 | dIL | Set lower limit |
dIL≤dIH | CU50(-50~150)\ PT100(-80~600)\ K(-30~999)\E(-30~700)\ J(-30~900)\T(199~400) | 0 |
13 | dIH | Set upper limit | 400 |
14 | PF |
Filt modulus |
0~50 | It is the software filter constant of measurement sampling.The constant ↑,the measurement antijamming capability↑,but the measurement speed and system response time ↓ |
20 |
15 | COL | System function choice | ON/OFF | ON:positive control(cooling control) OFF:reverse control(heating control) | OFF |
