Prod Model: |
JC610-20 |
Material: |
Stainless Steel |
Measuring Medium: |
Gas Liquid Steam |
Accuracy Grade: |
0.1%,0.25%,0.4% |
Pressure Range: |
-0.1MPa ~0~10kpa~70MPa |

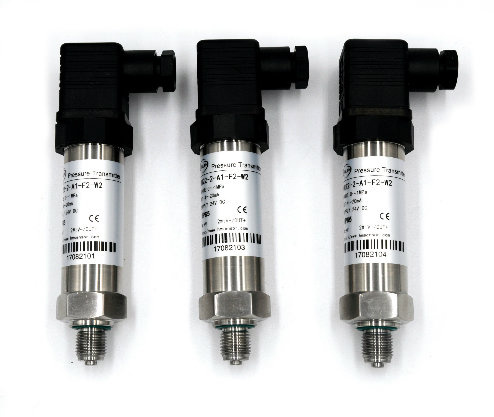

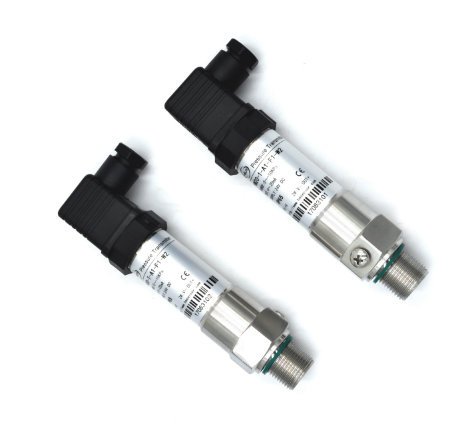

Product Description
Product overview JC610-20High accuracy Pressure transducer is encapsulated in a stainless steel case through assembly and commissioning by use of advanced foreign silicon piezoresistive sensitive elements. Both the case and interface materials are made of stainless steel. The medium is of good compatibility, with stable & reliable performance and high accuracy. The gasket is sealed on the end face. It is widely used in Pressure measurement of various dynamic & static ,Aerospace,Automotive electronics gases and liquid media,Pneumatic control,Ventilation system and Industrial measurement.

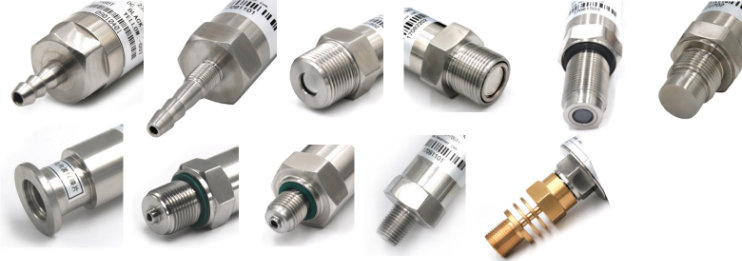

Thread Optional
Performance ParametersMeasuring range | -0.1MPa~0~10KPa...70MPa |
Overload capacity | Two times of the measuring scale for overpressure |
Power supply | 1.5mA DC | 10~24V DC constant voltage |
Zero output | 0±2 mV DC | 0±2 mV DC |
Full scale output | 70~110mVDC | 70~110mV DC |
Measuring Media | The gas or liquid compatible with 316 stainless steel |
Overall accuracy (Linearity, repeatability and hysteresis) | ±0.1%FS | ±0.25%FS | ±0.4%FS |
Long-term stability | ≤±0.1%FS/year |
Operating temperature | -40~85ºC |
Compensation temperature | -10~50ºC |
Temperature performance | Zero temperature coefficient: ±0.02%FS/ºC(Typical value);±0.04%FS/ºC(Maximum value) |
Sensitivity temperature coefficient: ±0.02%FS/ºC(Typical value); ±0.04%FS/ºC(Maximum value) |
Thermal hysteresis | ±0.1%FS/ºC(Typical value) |
Materials | Enclosure: Stainless steel 1Cr18Ni9Ti | Membrane: Stainless steel 316L |
Cable: polyvinyl chloride cable | Sealing:Fluorine rubber sealing ring |
Electrical connection | PG7 cable connection | Connector DIN43650 |
Response Time(10%~90%) | ≤1 ms |
Resolution | Infinitely small(theoretic),1/100000(normal) |
Insulation resistance | 100MΩ / 500VDC |
Enclosure protection class | IP67(Cable type) | IP65(Socket type) |
Weight | About 250g |
Vibration | No change under 10gRMS, 20 ~ 2000Hz |
Impact | 100g,11 milliseconds |
Product Features*Measuring range:-0.1MPa~0~10kPa...70MPa*Total stainless steel construction*Standard thread pressure-leading measuring method*Power supply at constant-current and -voltage source *Laser resistance-trimming compensation zero and full-scale temperature performance*Using solid-state piezoresistive pressure sensor, with high reliability and high accuracy.*Small size, diversified and optional structural formsProduct Application *Pressure measurement of various dynamic & static *Aerospace *Industrial measurement*Automotive electronics gases and liquid media *Pneumatic control *Ventilation system Ordering GuideJC610-20 | High-accuracy pressure transmitter |
| Pressure type | Gauge pressure(G may not be indicated); |
Absolute pressure(A); |
Sealed reference pressure(S) |
| Range | ( 0~ X KPa or MPa) |
| Code | Overall accuracy (linearity + repeatability + hysteresis) |
1 | ±0.4%FS |
2 | ±0.25%FS |
3 | ±0.1%FS |
| Code | Power supply |
D1 | 10~24VDC constant voltage |
D2 | 1.5mA DC constant current |
| Code | Signal output |
V1 | 0±2mV~90±20mV |
| Code | Additional functions |
F1 | M20x1.5 external thread |
F2 | G1/4 external thread |
F0 | Special |
W1 | Cable type(IP67,2m) |
W2 | Aerial socket type(IP65) |
P | Flush diaphragm type |
E | Intrinsically safe explosion-proof type Ex iaIICT5 |
JC610-20 (0~200KPa) -3 -D2-V1 -F2-W1-E pressure transmitter |
Tips for Type Selection:1.When installing the flush diaphragm product on the site, adopt the correct sealing means to prevent any influence on product stability by installation stress.
2.The Company may, according to users' requirements, provide products at 70MPa or higher pressure or at a wide temperature compensation range.
3. As an additional function code for type selection, the code "E" for intrinsically safe explosion-proof type Ex ia II CT5 denotes that power source must be supplied via safety barrier.
4. For other special requirements, please discuss with us.

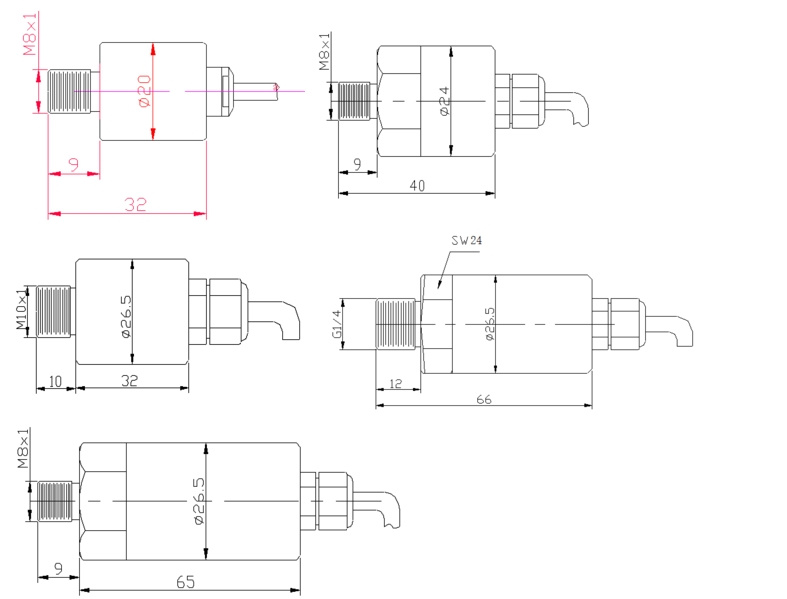

Thread Dimensions
