Plastic Insulation Control Cable
| Price: |
US $ 1-100/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P |

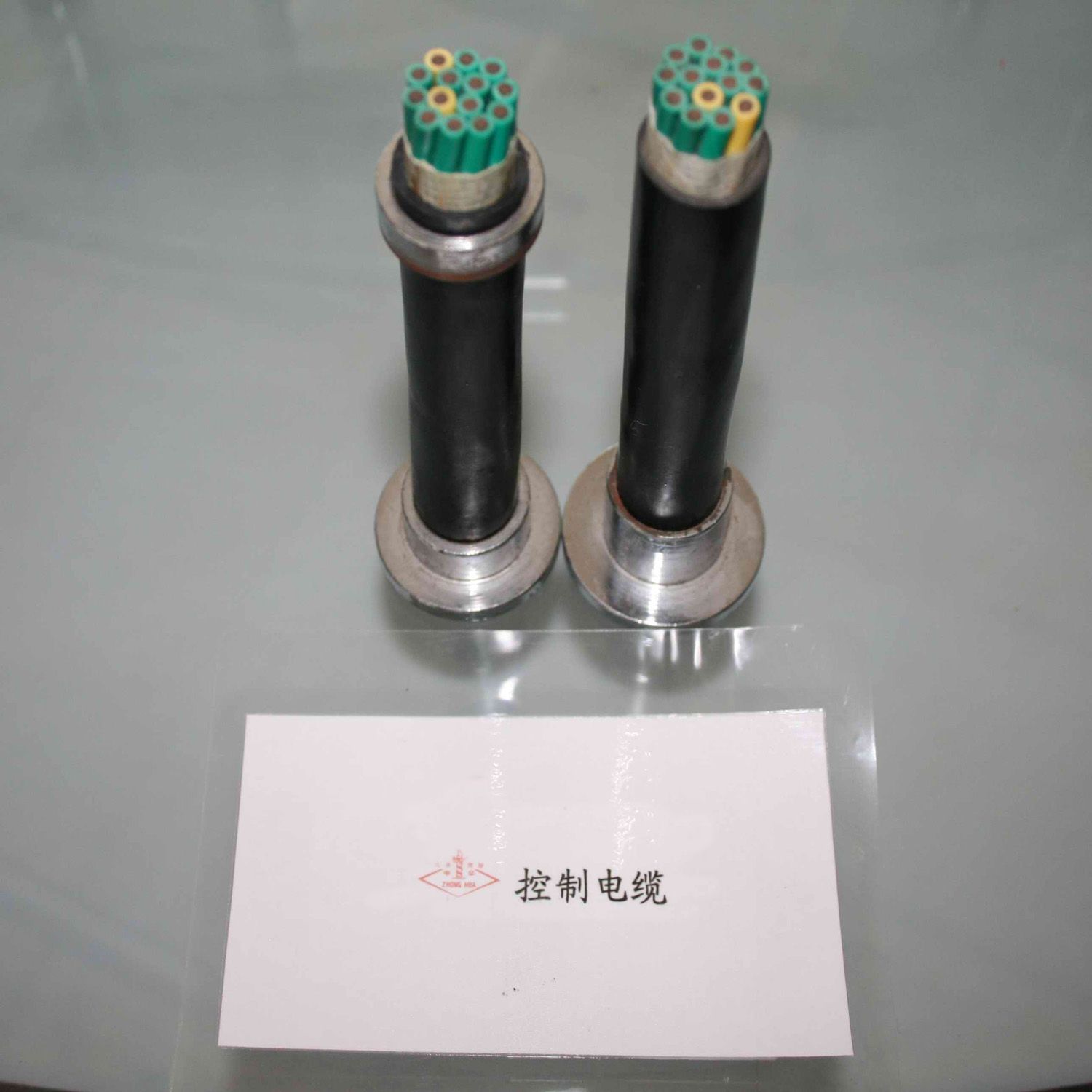

Plastic Insulation Control Cable
ApplicationThe product is applicable for the occasions of controlling under the altering voltage of 450/750V and below,monitoring the loop and protecting the circuits,etc.Feature1. The rated voltage U0/U is 450/750V.2. The long-term permitted max. operating temperature of the cable conductor: A. The PVC insulated control cable is 70ºC;
B. The XLPE insulated control cable is 90ºC.
3. The cable installation temperature should not below 0ºC.4.
The permitted bending radius of the cable: The cable without armoured layer should not smaller than 6 times of the cable diameter,the cable with armoured shield or copper tape shielding should not smaller than 12 times of the cable diameter;The flexible cable with armoured layer should not smaller than 6 times of the cable diameter.5. It has various screening structure, such as copper tape screen and copper wire braided screen.6. It has achieved different levels of flame-retardant, fire resistant, chemical attack resistance and rat proof and termite proof.7. It achieves the pro-environmental requirements of LSZH.

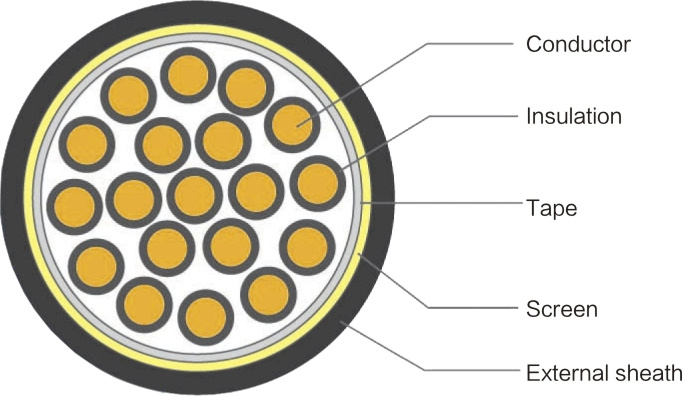

Product Structure
| Prod Model: |
KVV/KVVP |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Brand: |
Zhonghua |
Aerospace Electric Group Co., Ltd (AEG for short), formerly known as Wuhan Cable Group Co., Ltd., is an state-owned enterprise subsidiary to the 9th Research Institute of China Aerospace Science and Technology Corporation (CASC). Specialized in manufacturing and R&D of excellent quality electric wires & cables with over 60 years' professional experience, AEG now integrates Conductor Business Division, Power Cable Business Division, International trade Division, Aerospace Rich Special Cable Co., Ltd, Hubei Aerospace Cable Co., Ltd and Hubei Longsky Communication Technology Co., Ltd. Now AEG has 2080 employees, including 300 senior professionals. The total asset of the group has reached 3.85billion RMB.
AEG imports a series of advanced production and testing equipment from Germany, the United States, Britain, Italy, etc., which helps to achieve the production capability of 30, 000 tons of aluminum alloy conductors, 80, 000 tons of aluminum conductor steel-reinforced(ACSR), 24, 000 tons of aluminum-clad steel wires, 30, 000 km. Of LV and MV cables and 50, 000 km. Of special cables and wires. The overall production scale reaches 5 billion RMB.
Products of AEG are applicable to power production, power supply, construction and installation etc., We supplied for Daya Bay Nuclear Power Plant, Three Gorges Hydroelectric Power Station, Datang Power Plant, Wuhan Tianhe International Airport, Guangzhou---Wuhan Express Railway, Daqing Oil Field, Tiananmen Square reconstruction, Wuhan Metro, etc. The military-related products are used by Xichang Satellite Base, Chengdu Airport, the 2ND Artillery Corps, Dongfeng Motor, Naval Base and other large scale nationally focused engineering construction. They are also exported to more than 20 countries and regions including USA, Germany, Greece and Pakistan. Many products are granted with national, ministerial, provincial and municipal Excellent New Product Award and Prize for Progress in Science and Technology while others obtain national utility model patents.
We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
