******Basic Info.******
***Quick Detail***
| Basic specifications |
| Model No. | CBB60 Capacitor |
| Type | cbb60 250VAC 100UF Plastic Running Capacitor |
| Structure | Single Film Capacitor |
| Capacitance | 1~60uF |
| Capacitance Tolerance | ±5% |
| Rated Voltage | 200~500VAC |
| Manufacturing Material | Polypropylene |
| Electrolyte | Polypropylene Film |
| Class of Operation | Class B,Class C |
| Operating Temperature | 40/70/21 or 40/85/21 |
| Class of Safety Protection | P0/P2 |
| Package Type | Export Carton |
| Production Capacity | 500,000pcs/Month |
| MOQ | 1 pcs |
| Size | Available on Request (Customized Capacitor) |
***The Composite Capacitor can be also customized producing according to our customer's request.
***Product Description***

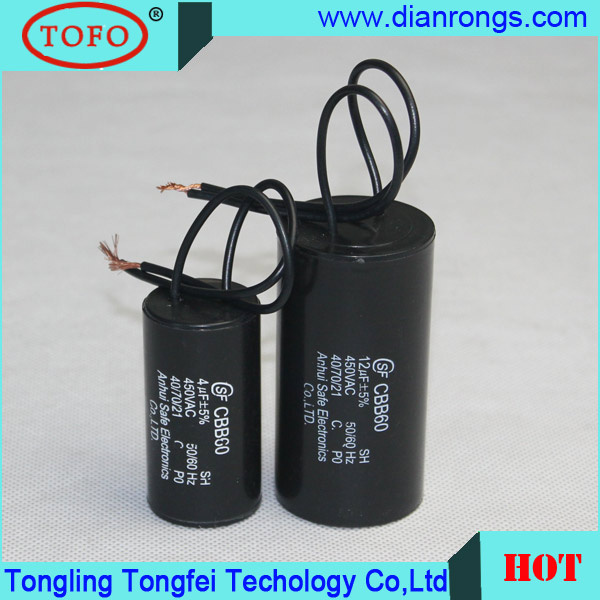

The capacitor takes heavy-edge metallized Al/Zn PP film as electrodes and dielectric. Its components are sealed with flame-retardant epoxy resin.It has cylindrical outline with high moisture resistance and stability.
***Technical Specifications***
| Reference standards | GB/T 3667.1 ( IEC60252-1 ) |
| Climatic category | 40/70/21,40/85/21 |
| Class of operation | Class B(10000h) Class C(3000h) |
| Class of safety protection | P0/P2 |
| Voltage range | 200~500VAC |
| Capacitance range | 1~60μF |
| Capacitance tolerance | ±5% |
| Dissipation factor | 20×10-4(100Hz,20ºC) |
| Test voltage terminal to terminal UTT | 2 Un for 2 seconds |
| Test voltage terminal to case UTC | (2Un+1000)VAC or 2000VAC-50Hz for 60
seconds |
| Insulation Resistance | ≥3000MΩ. μF(100Hz,20ºC,1min) |
***Application***
CBB60 capacitor broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washing machine and high efficiency compressors of refrigerators etc.
******Additional Info.******
Company Name: Tongling Tongfei Technology Co.,Ltd
Trademark: TOFO
Standard: GB/T 3667.1 or IEC 60252-1
Origin: China(Mainland)
Export Market: Global
***Appearance & Application***
Installation Type: Through Hole
Shape: Cylinder
Capacitor Case: Plastic
Lead out: Pin or Wire
Application: CBB60 Capacitor applied to General purpose,AC motor,Power,Lighting,Air Conditioner,High voltage,Fan,Automobile,etc.
***Packing&Delivery***
Packing: Export Standard Carton Packing for Capacitors
Delivery Detail: 7~15 days after payment
Port: Shanghai or Ningbo
***Dimensions(mm)***
| Specifications | Routine | With screws or pins |
| 450VAC | 250VAC | 450VAC | 250VAC |
| 1μF | Φ26×52 | Φ26×52 | Φ30×52 | Φ30×52 |
| 2μF | Φ26×52 | Φ26×52 | Φ30×52 | Φ30×52 |
| 2.5μF | Φ26×52 | Φ26×52 | Φ30×52 | Φ30×52 |
| 3μF | Φ26×52 | Φ26×52 | Φ30×52 | Φ30×52 |
| 3.5μF | Φ26×52 | Φ26×52 | Φ30×59 | Φ30×52 |
| 4μF | Φ28.5×55 | Φ26×52 | Φ35×62 | Φ30×52 |
| 4.5μF | Φ28.5×55 | Φ26×52 | Φ35×62 | Φ30×52 |
| 5μF | Φ28.5×55 | Φ26×52 | Φ35×62 | Φ30×52 |
| 5.5μF | Φ34×62 | Φ26×52 | Φ35×62 | Φ30×52 |
| 6μF | Φ34×62 | Φ26×52 | Φ35×62 | Φ30×52 |
| 6.5μF | Φ34×62 | Φ26×52 | Φ35×62 | Φ30×52 |
| 7μF | Φ34×62 | Φ26×52 | Φ35×62 | Φ30×52 |
| 8μF | Φ34×62 | Φ26×52 | Φ35×62 | Φ30×52 |
| 9μF | Φ34×62 | Φ26×52 | Φ35×62 | Φ30×52 |
| 10μF | Φ34×62 | Φ26×52 | Φ35×72 | Φ30×52 |
| 12μF | Φ37×73 | Φ26×52 | Φ35×72 | Φ30×61 |
| 14μF | Φ37×73 | Φ34×62 | Φ40×72 | Φ30×61 |
| 15μF | Φ37×73 | Φ34×62 | Φ40×72 | Φ30×61 |
| 16μF | Φ37×73 | Φ34×62 | Φ40×72 | Φ30×61 |
| 18μF | Φ37×73 | Φ34×62 | Φ40×72 | Φ35×67 |
| 20μF | Φ40×70 | Φ34×62 | Φ40×72 | Φ35×67 |
| 25μF | Φ42×80 | Φ42×62 | Φ40×72 | Φ35×67 |
| 30μF | Φ42×90 | Φ40×72 | Φ45×95 | Φ40×72 |
| 35μF | Φ45×90 | Φ40×72 | Φ45×95 | Φ40×72 |
| 40μF | Φ50×100 | Φ42×90 | Φ50×110 | Φ40×97 |
| 45μF | Φ50×100 | Φ42×90 | Φ50×110 | Φ40×97 |
| 50μF | Φ50×100 | Φ42×90 | Φ50×120 | Φ40×97 |
| 60μF | Φ50×115 | Φ42×90 | Φ50×120 | Φ40×97 |
* Note:Other specifications,size and terminal outside table are negotiable.
