| Prod Model: |
1N5817, 1N5819.1N5822. SBR360, 21D-06 |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Compound Semiconductor |
| Type: |
P-type Semiconductor |
| Package: |
Do-15,R-1,a-405,Do-201ad,to-220ab |

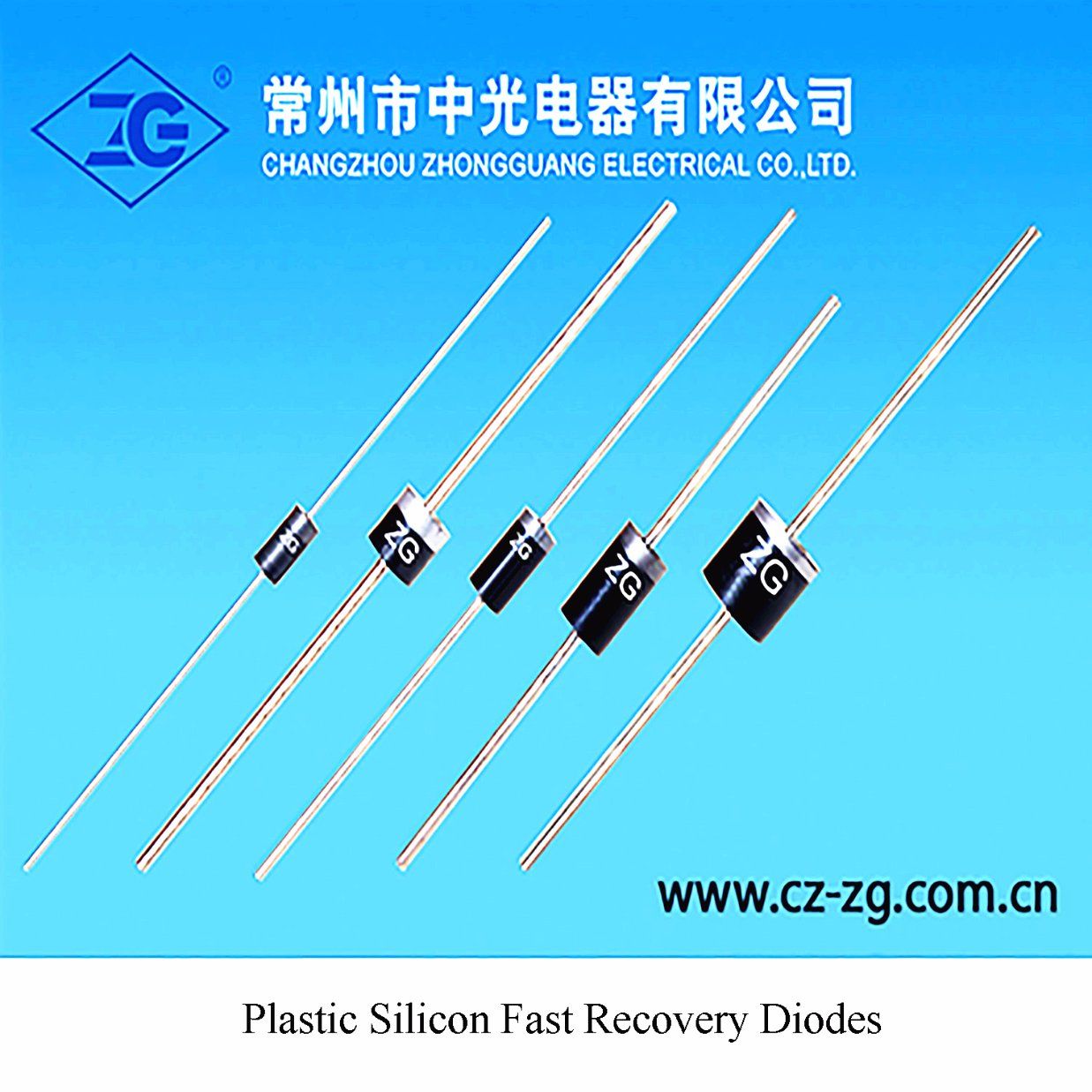

Product Description
Silicon powder coating is a kind of fast recovery diode switch characteristics, semiconductor diode reverse recovery time characteristics, mainly used in switching power supply, electronic circuits, such as the pulse width modulator, frequency converter, as a high frequency damping diode rectifier diode, the fly-wheel diode or use.Choose appropriate silicone sealants fast recovery diode characteristics, especially the reverse recovery characteristics, such as reverse recovery time and reverse recovery softness, can significantly reduce the switching devices, diodes, and many other circuit components in power loss.
Silicone sealants fast recovery diodes, ontology, has two diode includes pins and encapsulation shell, described two diodes in encapsulation shell of ontology, including a p-n junction diode ontology, a positive terminal and a negative terminal, two diode connected to the negative terminal of the ontology, ontology in two diode negative terminals of the join point welding with a pin, two diodes, the positive terminal of the ontology and the welding with a pin, described in the pin is located in the packages, encapsulation shell coated with a layer of ontology can clearly show the diode parameters of uv curing ink layer.Considering the simple assembly, described packages for cuboid structure.Further, in order to beautiful, cost savings, on the encapsulation shell of the described process hole is set up.Beneficial effects of this utility model is the utility model has simple structure, diode ontology in encapsulation shell to ensure the electric property is not affected, encapsulation shell coated with a layer of working parameters of the coating can clearly show the diode ontology, in replacement of silica laminate and fast recovery diodes, won't appear mistake will work parameters do not meet the requirement of pipe change, avoiding the damage of silicone sealants fast recovery diode breakdown.
| chip size | 455MIL |
| AWG | 0.75*58 |
| inverse voltage | ≥1100V |
| switch time | ≤250 |
| forward voltage drop | ≤1.3 |
Established in 2000, Changzhou Zhongguang Electronic Co., Ltd(ZG), which locates in Changzhou city, Jiangsu province, a place concentrated with China's most vigorous manufacturers, our company has a wide variety of products with complete specifications, including diodes, bridge rectifiers and automotive rectifier diodes, transient voltage suppressors(TVS), general rectifier(STD), fast recovery diode(FR), high efficiency rectifiers(HER/UF), super fast recovery diodes(SF) and schottky diodes(SKY). The main package includes A-405, DO-41, DO-15, R-1, R-6, DO-201AD. TO-220AB. TO-220AC, SMA, SMB, SMC, MBS, MBM, DBS, dB, WOB, RS-2, GBJ2, KBPC1, KBP, KBL, GBJ4, KBU, GBJ6, GBU, KBPC6, KBPC8 etc.
And the company untroduced a full set of advanced equipment and scientific management system from abroad. The quality of our products enjoys a good reputation in domestic and foreign markets. The company could supply competitive price and fast delivery and good quality with prompet service.
Our products are widely used in the fields like home appliances, LED, energy saving lamp, smart electric meters, security and protection, extinguishing and protection and automotive electronics etc.
We also work with DHL, FedEx, TNT and etc. For large quantity, it's up to you to choose the freight for warder and if you need, we could assist you.
