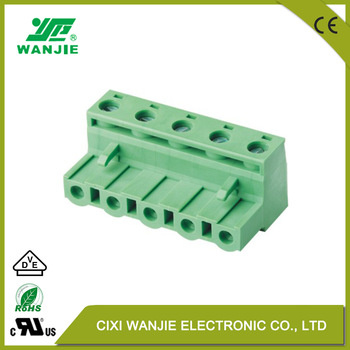

Pluggable Terminal Block 5.0mm, 5.08mm, 7.5mm, 7.62mm

Pluggable Terminal Block 5.0mm, 5.08mm, 7.5mm, 7.62mm
Price: US $ 0.01/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T
Material
Screws:M3.0 steel Zn plated
Clamp:Copper alloy,Ni plated
Wire guard:Copper alloy,Ni plated
Housing:PA66, UL94V-0

Electrical
Standard:ULIEC
Rated voltage:300V320V
Rated current:15A10A
Wire range:28-14AWG2.5mm²
Contact resistance:20mΩ
Insulation resistance:500mΩ /DC500V
Withstanding voltage:AC 2000V/1 min

Mechanical
Temp. Range:-40º C ~ +105º C
Max soldering:+250º C, for 5 sec.
Torque:0.5Nm/4.5 (lbin)
Strip length:7-8mm







Prod Model: WJ2EDGK
Application: Cable
Environmental Protection: General
Connection Mode: Push-Pull Connection
Shape: Rectangle
Contact Termination Form: Screws Fixed
Type: Connector
Character: Wire Connector
Brand: Wanjie
Cixi Wanjie Electronic Co., Ltd., is founded in 1992 and specializes in making terminal block and solderless breadboard. We have passed the ISO9001: 2000 quality management system and the products have been approved by VDE, UL, CE, SGS, CQC, RoHS and TUV.

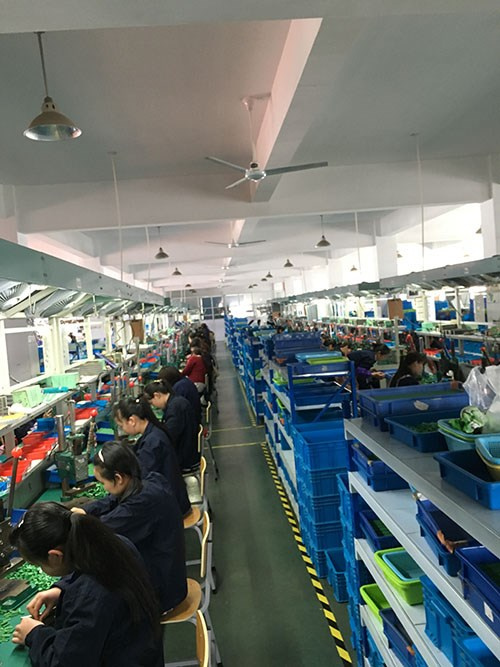

With many years development, we have built an excellent management team and have our own R & D center, mould production, plastic injection, hardware stamping and assembling workshop. So we will give you the best offer also we can design, develop and produce the products according to customers' Request.

We have adopted advanced production and test equipment, so that we could offer good quality and more competitive products. For better service to the customers, we can also design, develop and produce according to customer`s requirement for OEM/ODM products.

With the advanced equipment and production line, good quality, competitive price and good service, our products are sold far to America, Europe, Middle East, Africa etc and receive good comments from the customers. So the company shows warm welcome to consult the business with all the customers both at home and abroad.

All the staff of company will strive together for a better tomorrow and show warm welcome to the customers of allover the world.
