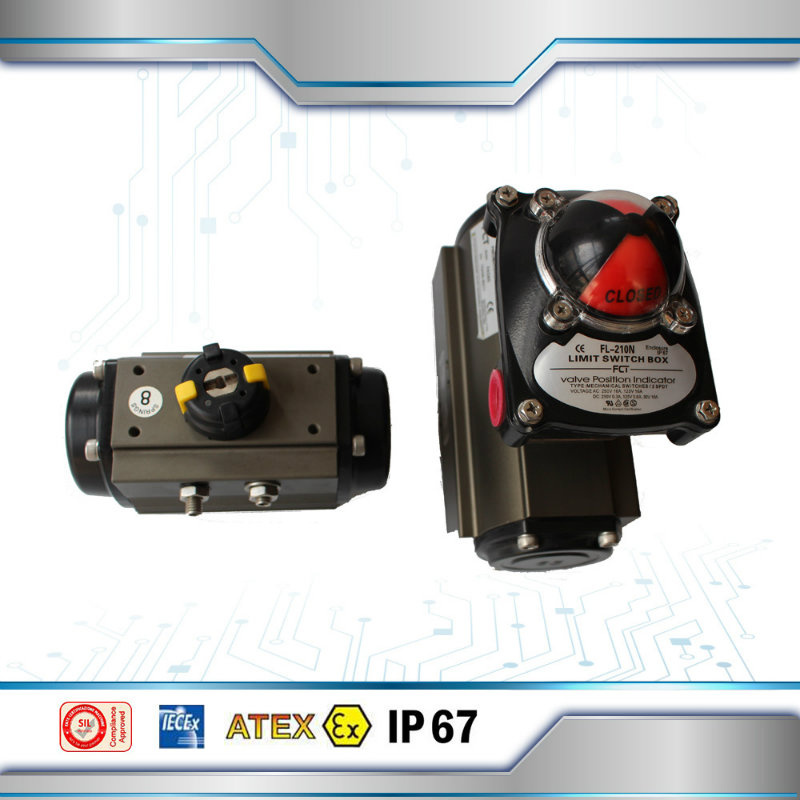

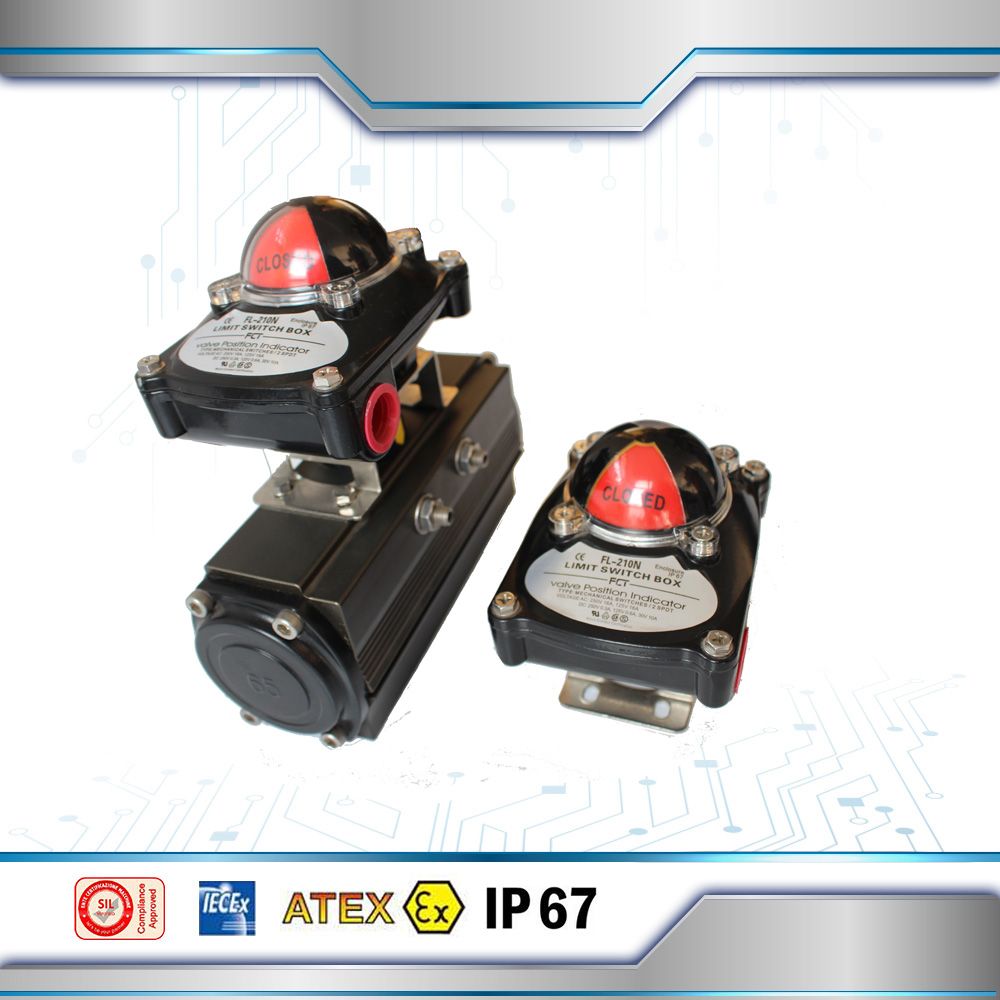

Pneumatic Actuator with Limit Switch Box

Name: Pneumatic Actuator with Limit Switch Box
Brand: all-electronics-online.com
SKU: 828016005
Availability: InStock
Rating: 4.7 (26 reviews)

Price:	US $ 10.5/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Ares0090
Color:	Black or Red
Cable Entries:	Two NPT 1/2"
Ambient Temperature:	-20 -80 Degree
Terminal Strips:	8 Points
Switch:	Mechanical Switch/Proximity Switch
Enclousure:	IP 67
Position Indicator:	0-90 Degree

Product Description

More Detail Description of Limit Switch Box

Product Introduction:

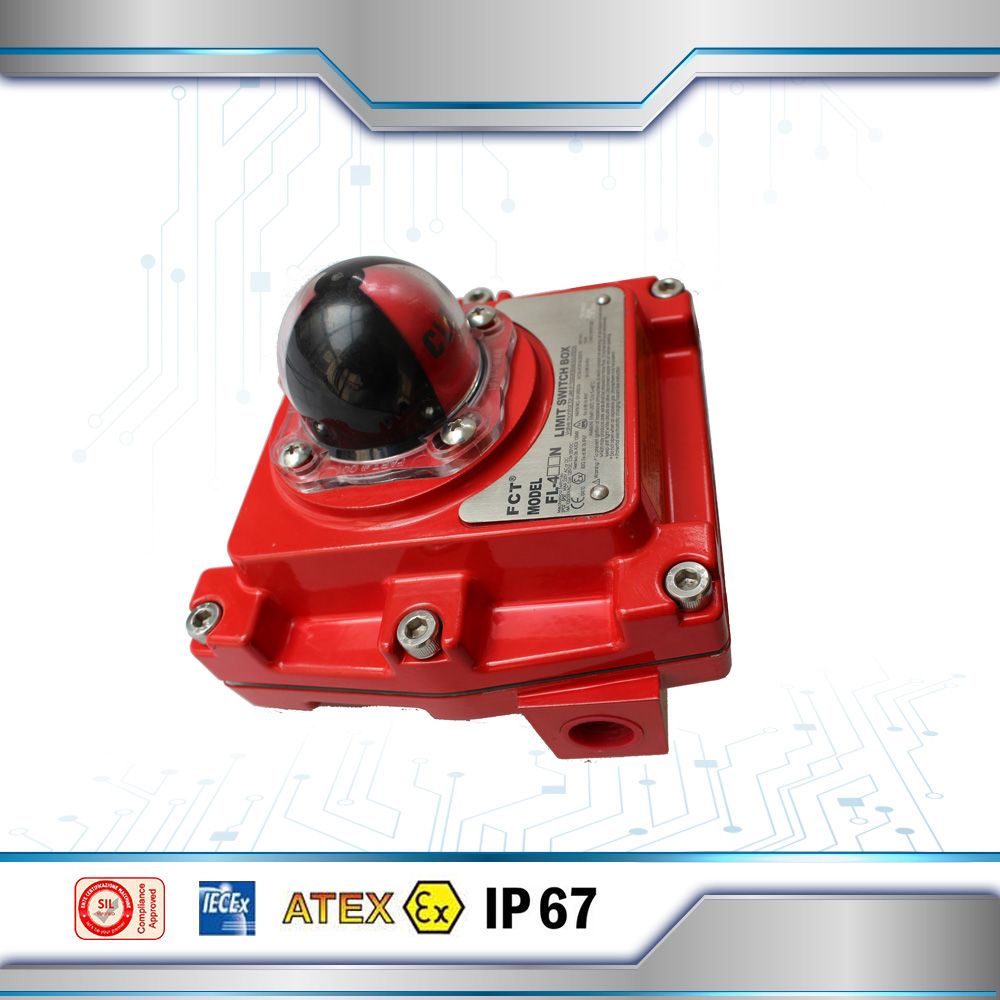

There are three main features for explosion proof E ExdIIC T6,510N limit switch box

1.the upper and lower cover size thread structure, tight and strong, dangerous medium is difficult to enter.

2.the cover inside the T-type explosion-proof shaft, the lower cover inside the rotation axis, close together, and the indicator signal synchronization,
there will be no deviation.

3. indicator material is PC, anti-oxidation and toughness strong,you can use the hammer percussion test, up to a pit, there will be no cracks.

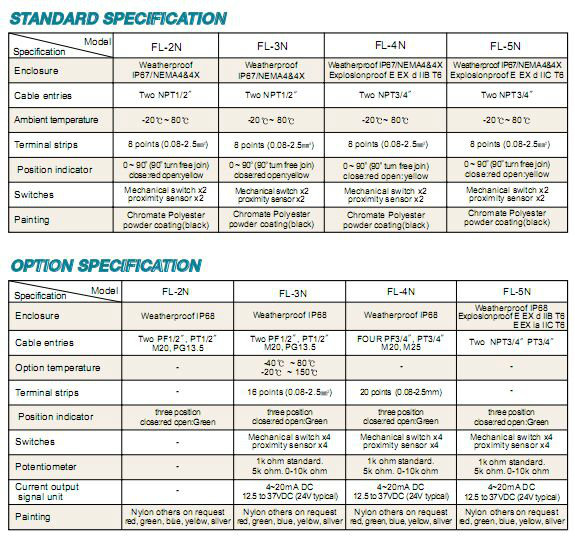

Model	FL-2N,3N,4N ,5N,7N,8N,9N limit switch box
Enclosure	Weatherproof IP67/NEMA4&4
Cable entries	Two NPT1/2" (Standard)
Ambient temperature	-20°C~ 80°C
Terminal strips	8points (0.08-2.5mm2)
Position indictor	0~90° (90° turn free join) Close: red Open: yellow
Switches	Mechanical switch:2 Proximity switch:2
Painting	Chromate Polyester powder coating(black)

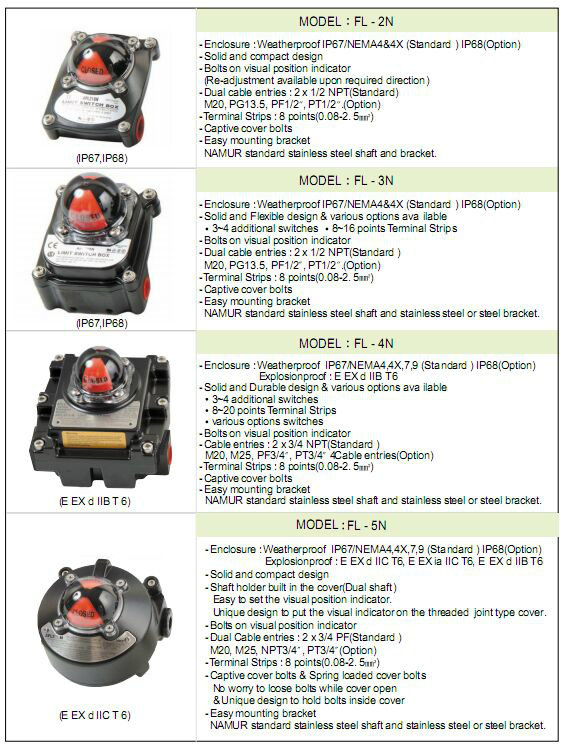

Different Type of Limit Switch Box

The Structure of Limit Switch Box

The Dimension of Limit Switch Box

Packaging & Shipping
Inner packing: OPP bag, then carton box for each product
Outer packing: Export standard carton, Foam outside protecting the goods against damage
Usually we ship your order by sea or by air
We do our best to ship your order within 1 week after receiving your payment
We'll tell you the tracking number once your order has been sent
We accept T/T Bank transfer, L/C, Western Union, MoneyGram, PayPal
