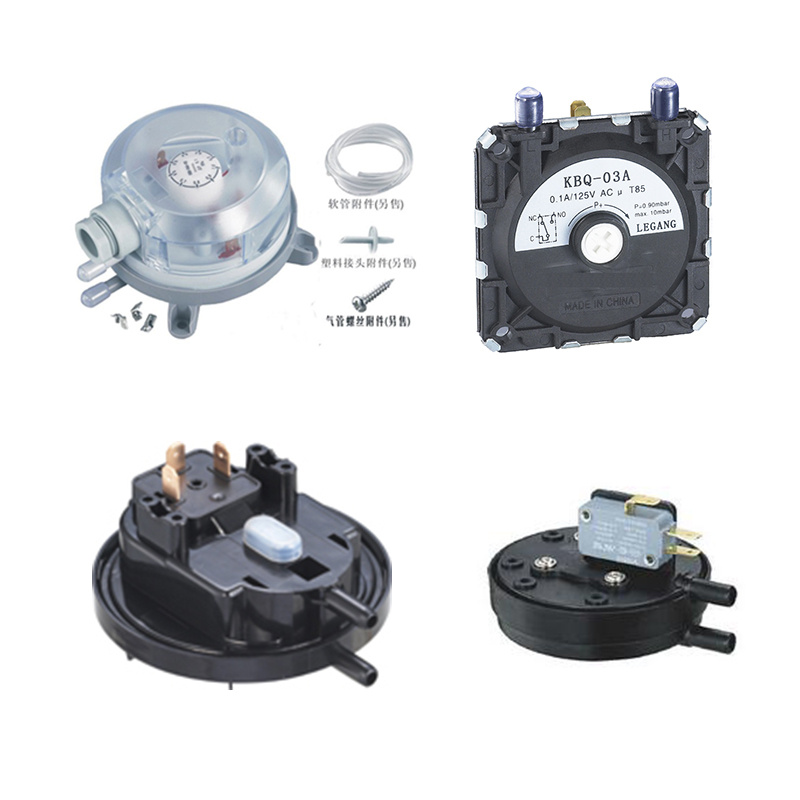

Pneumatic Pressure Difference Switch of Air Switch

Pneumatic Pressure Difference Switch of Air Switch
Price: US $ 6.2-10/Piece
Min Order: 50/Piece
Pay Type: T/T

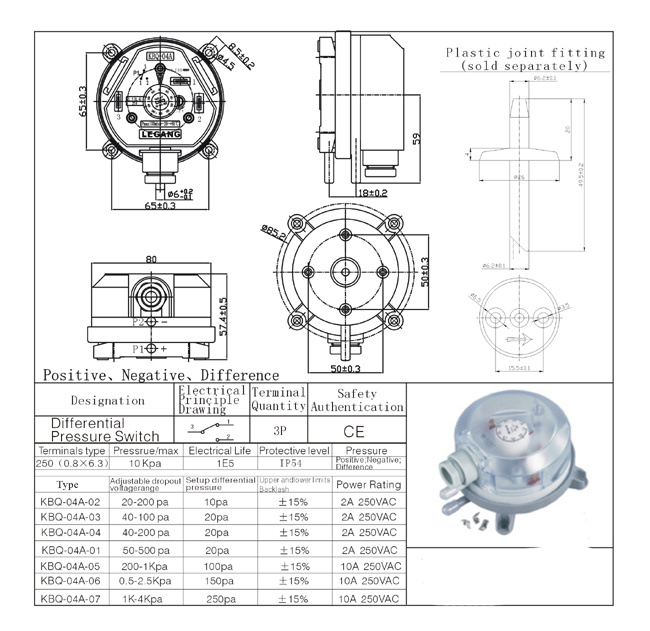

KBQ-04A series pressure difference switches can sense micro pressure change to conduct on-off action. This type of pressure difference switches is widely applied to flow control filters, air blowers and air valves of ventilating systems. It can also be applied to heater coil overheat protection and industrial cooling circuit frost protection. The product is visible and adjustable, and can visibly adjust the operation value of the pressure difference switch.
power rating16(4)A 250VAC    10(8)A 250VAC
contact resistance:≤50mΩ
insulation resistance≥100MΩ
Dielectric strength:pole and pole 1500VAC ,pole and housing 2500VAC
ambient temperatureT85
electrical:5E4 10(8)A           1E4  16(4)A
action pressure:5  10kpa/10--20kpa(pressure fixed)






Prod Model: kbq04a
Type: Mechanical
Application: Vehicles
Explosion-proof Type: Flameproof
Contact: Normally Open
. Dongguan Avoa Electric Co., Limited located on the China guangdong, is specialized in producing electronics components, power switch, plugs & sockets, connectors applied to Household appliances, vacuum cleaners, sound sets. In addition, the company produces plastic-pressing (big, MID or small) and metallic-pressing parts, and may design all kinds of plastic die sets for our numerous customers also.

With a plant area of 5000 square meters and a building area of 5500 square meters, our company owns fully reinforced strength, complete test equipment inspecting methods and perfect quality system. Our products have passed the, CQC certificates of China Quality Certification center. Some products also passed UL Approbation of U. S. A or TUV Approbation of German Rheinland Technical Co., Ltd.

Our products are on sales everywhere domestically and are exported to Hong Kong, Taiwan, Europe and U. S. A For instance, the power switch of KBQ02B, KAG01A series of vacuum cleaner gain the UL certificate for the first time in the manufactory of China. So, the power switches were preferred by broad customers.

Our companys' essential principle is "Quality First and Reputation First", we will meet our customers' needs by the best quality and after-sales service. We cordially welcome the clients home and abroad to correspond and discuss with us and create the splendid enterprise hand by hand.
