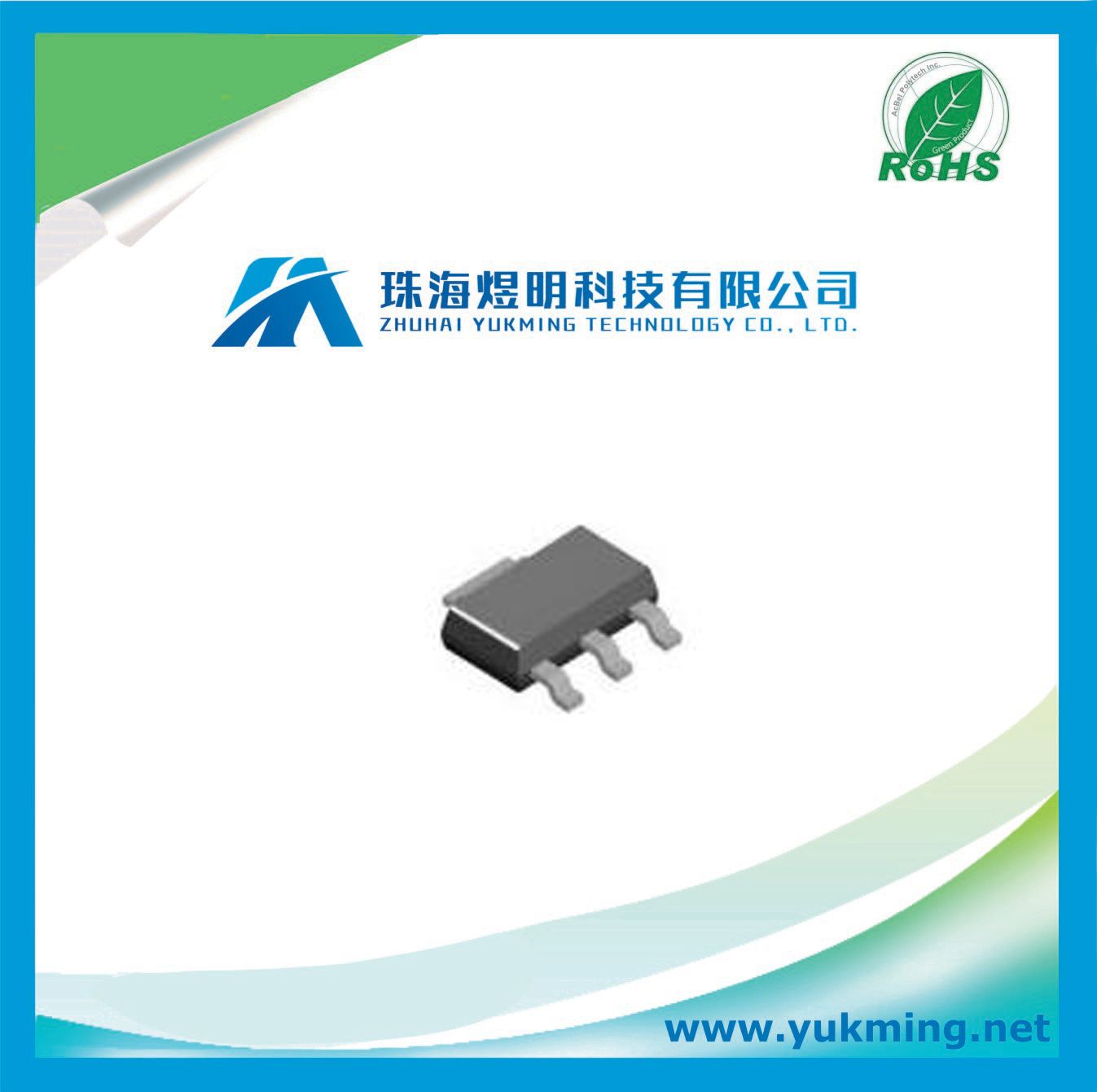

PNP General Purpose Bipolar Junction Transistor

Prod Model:	BCP52
Type:	PNP
Output Device:	Transistor
Number Of Elements Per Chip:	1
Maximum Collector Maximum Emitter Base V:	60
Operation Temperature Range:	-55~150 Degree C
Maximum Collector Emitter Voltage (V):	60
Maximum DC Collector Current (a):	1.2
Maximum Power Dissipation (MW):	1500

Product Description

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.


Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require





MANUFACTURER
Fairchild Semiconductor

PRODUCT CATEGORY
GP BJT

DESCRIPTION
Trans GP BJT PNP 60V 1.2A 4-Pin(3+Tab) SOT-223 T/R

Do you require a transistor in your circuit operating in the high-voltage range? This PNP BCP52 general purpose bipolar junction transistor, developed by Fairchild Semiconductor, is your solution. This bipolar junction transistor's maximum emitter base voltage is 5 V. Its maximum power dissipation is 1500 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This bipolar junction transistor has an operating temperature range of -55 °C to 150 °C. It has a maximum collector emitter voltage of 60 V and a maximum emitter base voltage of 5 V.

Specifications
EU RoHS Compliant
Type PNP
Configuration Single Dual Collector
Number of Elements per Chip 1
Maximum Collector Base Voltage (V) 60
Maximum Emitter Base Voltage (V) 5
Maximum Collector Emitter Voltage (V) 60
Maximum DC Collector Current (A) 1.2
Maximum Power Dissipation (mW) 1500
Minimum DC Current Gain 25@5mA@2V|25@500mA@2V|40@150mA@2V
Product Category Bipolar Power
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Maximum Collector Cut-Off Current (nA) 100
Packaging Tape and Reel
Maximum Collector Emitter Saturation Voltage (V) 0.5@50mA@500mA
Mounting Surface Mount
Package Height (mm) 1.7(Max)
Package Length (mm) 6.7(Max)
Package Width (mm) 3.7(Max)
PCB changed 3
Tab Tab
Standard Package Name SOT-223
Supplier Package SOT-223
Pin Count 4
Lead Shape Gull-wing
