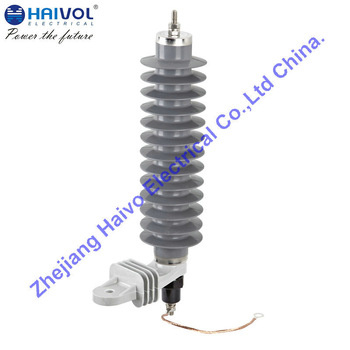

Polymer Silicone Rubber Lightning Arrester

Name: Polymer Silicone Rubber Lightning Arrester
Brand: all-electronics-online.com
SKU: 825744855
Availability: InStock
Rating: 4.4 (130 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Specifications
Metal-Oxide Surge Arrester
1.Nominal discharge current:5KA
2.Rated voltage:22KV
3..Reasonable price and short delivery

Polymeric Housed Metal-Oxide Surge Arrester without GAPS (YH5W-22)
Application: For protecting rated voltage up to 220kV power transmission & distribution system from over-voltage.

Ratings: Up to 220kV.
Standards: IEC 60099-4

Features:
Reliability and excellent protection based on years of experience and expertise in surge protection.
Good anti-moisture capability, resistant to pollution.
GIS metal oxide surge arrester, composite metal oxide surge arrester and porcelain metal oxide surge arresters are available.
Long life and lightweight.
Easy installation and maintenance.
Good sealing capability to ensure reliable operation.
High energy absorption ability.

Product range:
Surge arresters 0.22kV~220kV

Technical Specification:

Type	MOA Rated voltage KVrms()	MCOV KV(rms)	Current impulse Residual Voltage			2ms Rectangular current impulse withstand A(crest)	4/10μs high current impulse withstand KA(crest)
Type	MOA Rated voltage KVrms()	MCOV KV(rms)	1/4μs Lightning current impulse KV(crest)	8/20μs Lightning current impulse KV(crest)	30/60μs Switching current impulse KV(crest)	2ms Rectangular current impulse withstand A(crest)	4/10μs high current impulse withstand KA(crest)
YH5W-3	3	2.55	11.3	9	8.9	150	65
YH5W-6	6	5.1	22.6	18	16.8	150	65
YH5W-9	9	7.65	33.7	27	23.8	150	65
YH5W-10	10	8.4	36	30	23	150	65
YH5W-11	11	9.4	40	33	30	150	65
YH5W-12	12	10.2	42.2	36	27	150	65
YH5W-15	15	12.7	51	45	38.5	150	65
YH5W-18	18	15.3	61.5	54	46.2	150	65
YH5W-21	21	17	71.8	63	54.2	150	65
YH5W-24	24	19.5	82	72	62	150	65
YH5W-27	27	22	92	81	69.8	150	65
YH5W-30	30	24.4	102	90	79	150	65
YH5W-33	33	27.5	112	99	86.7	150	65
YH5W-36	36	29	123	108	92.4	150	65

Prod Model:	HAIVO
Application:	High-voltage
Material:	Porcelain
Structure:	Suspension Insulator
Color:	Grey
Brand:	Haivol

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

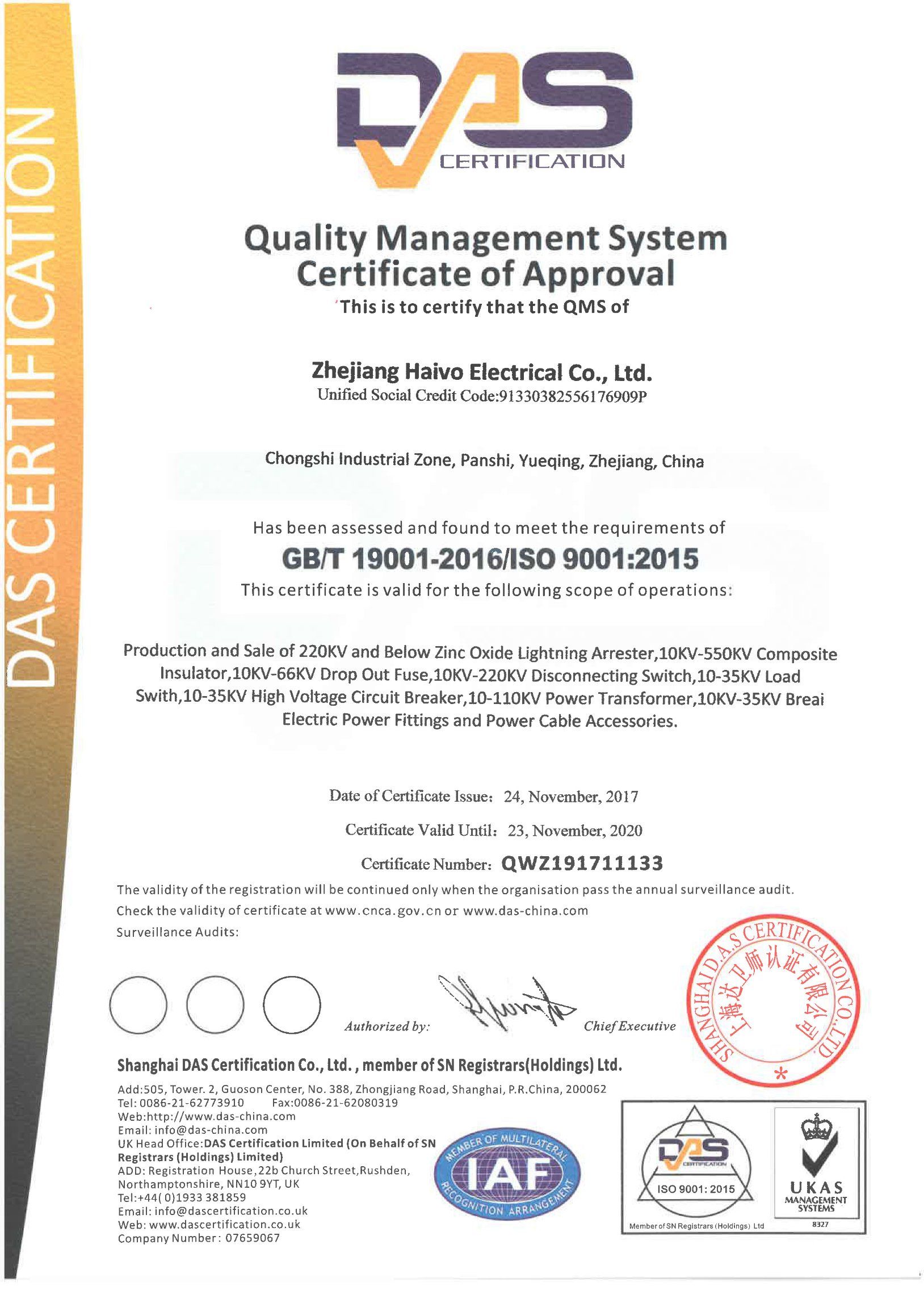

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
