Prod Model: |
wind power capacitor |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model No.: |
Photovoltaic DC Link Capacitor |
Rated Voltage: |
500~5000VDC |
Size: |
Available on Request (Customized Capacitor) |
Capacitance Tolerance: |
±5% |
Class Of Operation: |
Class B, Class C |
Class Of Safety Protection: |
P2/P1 |
MOQ: |
1 PCS |
Dielectric: |
1.5un/60s |
Effective Current: |
10~80A |
Failure Rate: |
50 Fit |
Type: |
Polystyrene-film-capacitors |
Application: |
Welding Machine |
Package Type: |
Surface Mount |
Capacitance: |
1~5000UF |
Manufacturing Material: |
Plastic Case and Capacitor Mpp Film |
Electrolyte: |
Film Capacitor |
Usage: |
Wind Power, Solar Power or Frequency Converter |
Filter: |
Film Capacitor |
Product Description
Factory DC
7×24 hours Sincerely Service for You
*****Basic Info.********Quick Detail***Basic specifications |

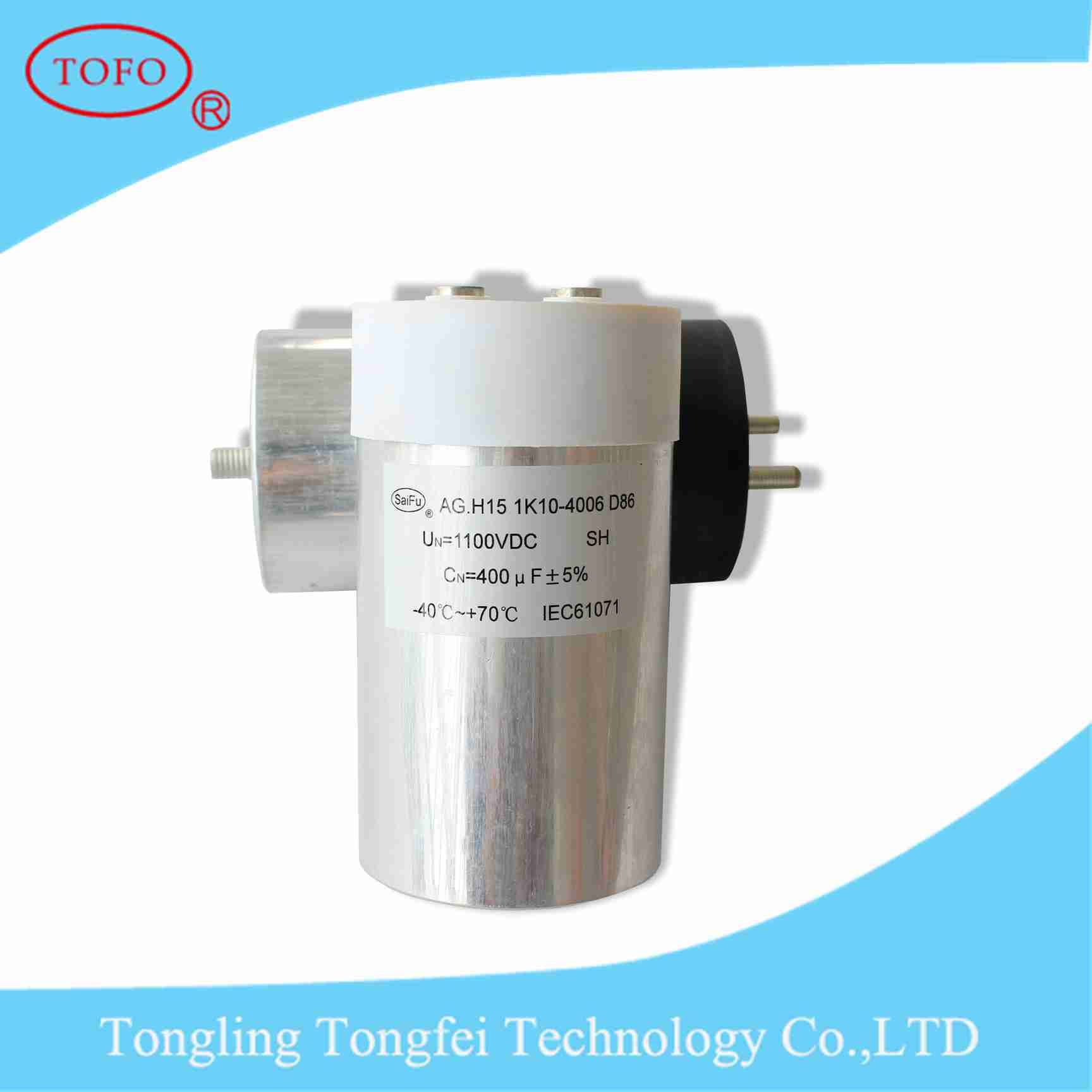

Model | photovoltaic DC link capacitor |
Type | Polypropylene Capacitor |
Capacitance | 1~5000uF |
Capacitance Tolerance | ±5% |
Rated Voltage | 500~5000VDC |
Structure | Film Capacitor |
Manufacturing Material | Polypropylene |
Electrolyte | Electric Heating |
Class of Operation | Class B,Class C |
Class of Safety Production | P2/P1 |
Package Type | Export Carton for DC Link Capacitor |
Production Capacity | 500,000pcs/Month |
MOQ | 1 pcs |
Size | Available on Request (Customized Capacitor) |
***The Composite Capacitor can be also customized producing according to our customer's request.***Product Description***The capacitor for power electronic are use of metal-based thin-film without a sense of style winding, special spray gold process, molded case,or Myra tape packaging, fire-retardant epoxy resin seal, copper bolts, copper nuts or inserts leads.metallized polypropylene structure;excellent electric property;self-healing property;long lifetime;DC-link capacitor;Used in DC-Link circuits, Can replace electrolyticcapacitor; Low ESR, high ripple current handling capabilities;Low Inductance;Self-healing property. ***Technical Specifications*** Temperature Range | -40°C~+85°C |
Capacity Range | 0.47uF~12000μF |
Capacitance deviation | ±5%(J),±10%(K) |
Voltage | 500VDC~15000VDC |
Dielectric | 1.5UN/60S |
Dissipation | tgδ≤0.002(at 1KHz) |
Insulation resistance | CxRs≥5000S(at20°C 100V.DC 60S) |
Shock current capability | dv/dt>50v/μs |
Flammability | UL94V-0 |
Stray inductance | ≤30nH |
Effective Current | 10~80A |
Reference Standard | Enterprise standards in line with IEC61071 ,IEC61881 ,GB17702.1 |
Case components | aluminum,plastic,304 stanless steel |
Terminals | tinned brass nut or screws |
Installation | whatever installation |
Failure rate | 50 FIT |
***Application***DC link capacitor is mainly used for IGBT, Photovoltaic,UPS,Inverter, Electroplating power supply,Inverter welder, Inverter and induction heating equipment,Solar, Welding, Magnetizater, Filter, Pulse, Inverter, Filter and other Electric and Electronic equipment used for filtering.*****Additional Info.*****Company Name: Tongling Tongfei Technology Co.,LtdTrademark: TOFOStandard: GB/T 3667.1 or IEC 60252-1Origin: China(Mainland)Export Market: Global***Appearance & Application***Capacitor Case: Aluminum/304 Stainless SteelInstallation Type: Through HoleApplication: DC link capacitorapplied toInverter Welder, Potovoltaic Power;Solar Plant,etc.***Packing & Delivery***Packing: Export Standard Carton Packing for CapacitorsDelivery Detail: 7~15 days after paymentPort: Shanghai or Ningbo ***Our advantages****LeadingTechnology:Have a number of invention patents*Stable Quality:The company has the world's most advanced production equipment, and implement ISO9001 standard management.*Reasonable Price:Executive "Industrial products 10% Profit in the first"*Cordial Service:7*24 hours online, prompt reply and timely delivery***Welcome to Contact Us***Company Name: Tongling Tongfei Technology Co.,Ltd.Add: No.695 North Taishan Road,Tongling,Anhui,China Tel: 0086 0562 2821018Fax: 0086 0562 2821558Mobile Phone: 13305620368 (Helen Hu) *Please Note:All the price are negotiable upon specifications, if you have any inquiry, welcome to contact us.*For more product information, please view our website:www.dianrongs.comLink Capacitor for Wind Power7×24 hours Sincerely Service for You
******Basic Info.******
***Quick Detail***
Basic specifications |
Model | photovoltaic DC link capacitor |
Type | High Density DC-Link Metallized Film Oil Type Capacitor |
Capacitance | 1~5000uF |
Capacitance Tolerance | ±5% |
Rated Voltage | 500~5000VDC |
Structure | Film Capacitor |
Manufacturing Material | Polypropylene |
Electrolyte | Electric Heating |
Class of Operation | Class B,Class C |
Class of Safety Production | P2/P1 |
Package Type | Export Carton for DC Link Capacitor |
Production Capacity | 500,000pcs/Month |
MOQ | 1 pcs |
Size | Available on Request (Customized Capacitor) |
***The Composite Capacitor can be also customized producing according to our customer's request.
******Product Description******
The capacitor for power electronic are use of metal-based thin-film without a sense of style winding, special spray gold process, molded case,or Myra tape packaging, fire-retardant epoxy resin seal, copper bolts, copper nuts or inserts leads.metallized polypropylene structure;excellent electric property;self-healing property;long lifetime;DC-link capacitor;Used in DC-Link circuits, Can replace electrolyticcapacitor; Low ESR, high ripple current handling capabilities;Low Inductance;Self-healing property.
***Technical Specifications***
Temperature Range | -40°C~+85°C |
Capacity Range | 0.47uF~12000μF |
Capacitance deviation | ±5%(J),±10%(K) |
Voltage | 500VDC~15000VDC |
Dielectric | 1.5UN/60S |
Dissipation | tgδ≤0.002(at 1KHz) |
Insulation resistance | CxRs≥5000S(at20°C 100V.DC 60S) |
Shock current capability | dv/dt>50v/μs |
Flammability | UL94V-0 |
Stray inductance | ≤30nH |
Effective Current | 10~80A |
Reference Standard | Enterprise standards in line with IEC61071 ,IEC61881 ,GB17702.1 |
Case components | aluminum,plastic,304 stanless steel |
Terminals | tinned brass nut or screws |
Installation | whatever installation |
Failure rate | 50 FIT |
***Application***
DC link capacitor is mainly used for IGBT, Photovoltaic,UPS,Inverter, Electroplating power supply,Inverter welder, Inverter and induction heating equipment,Solar, Welding, Magnetizater, Filter, Pulse, Inverter, Filter and other Electric and Electronic equipment used for filtering.
******Additional Info.******
Company Name: Tongling Tongfei Technology Co.,Ltd
Trademark: TOFO
Standard: GB/T 3667.1 or IEC 60252-1
Origin: China(Mainland)
Export Market: Global

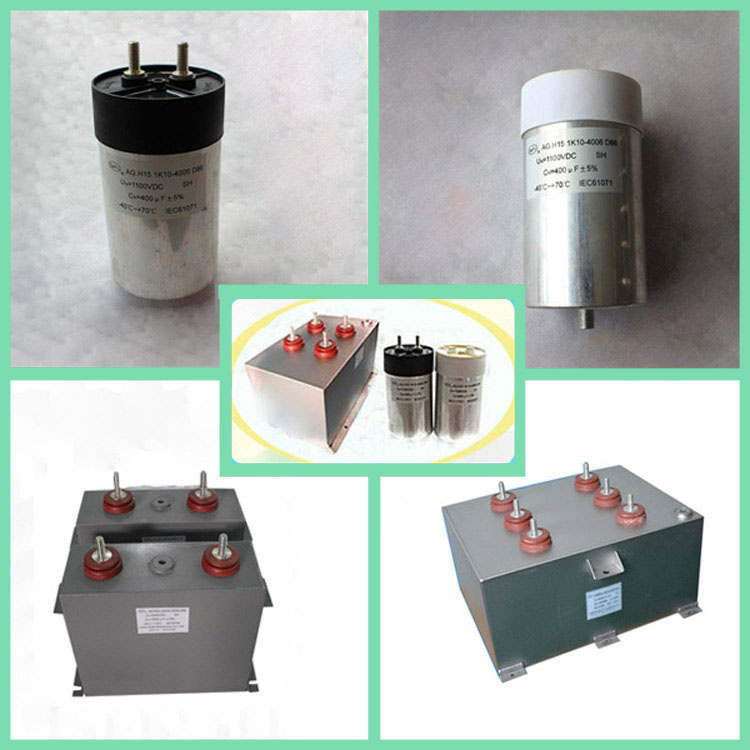

***Appearance & Application***
Capacitor Case: Aluminum/304 Stainless Steel
Installation Type: Through Hole
Application: DC link capacitorapplied toInverter Welder, Potovoltaic Power;Solar Plant,etc.
***Packing & Delivery***
Packing: Export Standard Carton Packing for Capacitors
Delivery Detail: 7~15 days after payment
Port: Shanghai or Ningbo
***Our advantages***
*LeadingTechnology:
Have a number of invention patents
*Stable Quality:
The company has the world's most advanced production equipment, and implement ISO9001 standard management.
*Reasonable Price:
Executive "Industrial products 10% Profit in the first"
*Cordial Service:
7*24 hours online, prompt reply and timely delivery
***Welcome to Contact Us***
Company Name: Tongling Tongfei Technology Co.,Ltd.
Add: No.695 North Taishan Road,Tongling,Anhui,China
Tel: 0086 0562 2821018
Fax: 0086 0562 2821558
Mobile Phone: 13305620368 (Helen Hu)
*PLEASE NOTE:
ALL THE PRICES ARE NEGOTIABLE UPON SPECIFICATIONS, IF YOU HAVE ANY INQUIRY, WELCOME TO CONTACT US.
Tongling Tongfei Technolygy Co., Ltd. Is a development, design, manufacture and market integrated professional capacitor manufacture, the company's main products: Metallized film for capacitor use, CBB series AC motor capacitor, SFPEC series power electronics capacitors, capacitors accessories, blank inkjet printable PVC card and compatible PVC card tray.
The company registered capital of 10 million, covers a total factory area of more than 6000 square meters. Existing staff of 76 people, and has set up a management platform of the management layer, production department, technical department, domestic trade department, foreign trade department, financial department and R& D center according to the standard system.

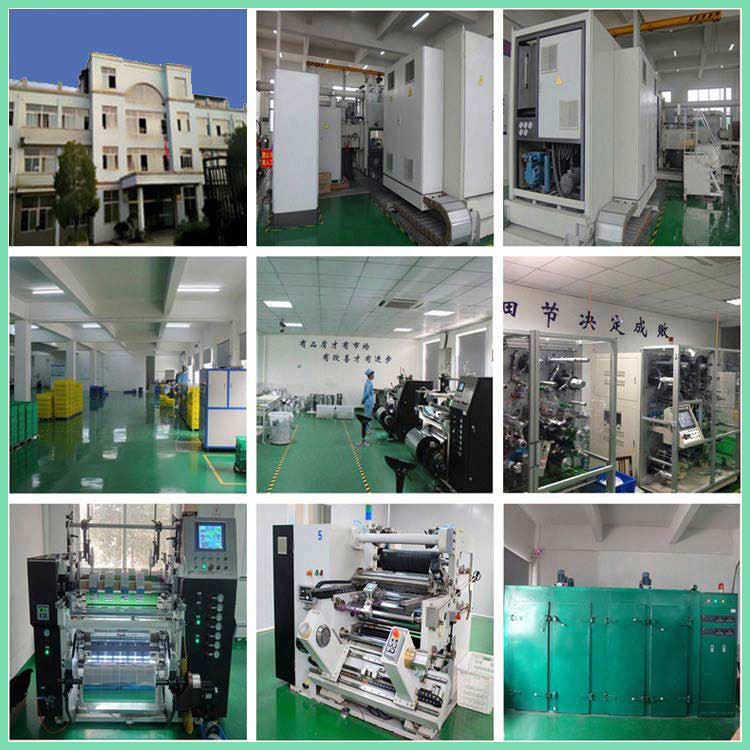

The company is equiped with professional capacitor manufacturing equipment and testing instruments as coating machine, high precision metallized film slitter, imported Rod automatic winding machine, automatic spraying machines, vacuum packaging equipment, special capacitor voltage measurement, constant temperature dehumidify box, special test bridge for capacitor use, all these equipment provide a reliable guarantee for product quality.
We have the business idea of total integrity and globalization service. With international and professional service, we make great efforts to translate Chinese characteristics and industrial benefits into product advantages, at the same time, provide domestic and oversea clients with the most suitable high quality products.
We are very appreciated to developing and creating of splendent tomorrow together with all the friends!
Quality policy:
Quality first, Customer foremost, Knight service, Sustainable improvement
We adhere to the customer as the main body, meet and lead the customer 's demand, provide customers with the first-class service.
Enterprise target:
To be a leading supplier with reliable quality and knight service.
Enterprise spirit:
Realistic, enterprising, collaborative, innovation
Enterprise mission:
Providing satisfied service for customer, society, employee
Business philosophy:
Details determine success or failure
Management policy:
To promote innovation with talents, to increase competitiveness with teams
