Porcelain Bushing Insulator

Name: Porcelain Bushing Insulator
Brand: all-electronics-online.com
SKU: 838979645
Availability: InStock
Rating: 4.5 (81 reviews)

Price:	US $ 16-17/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

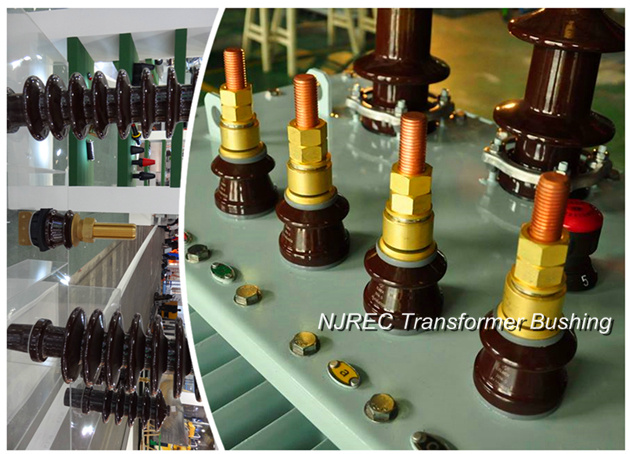

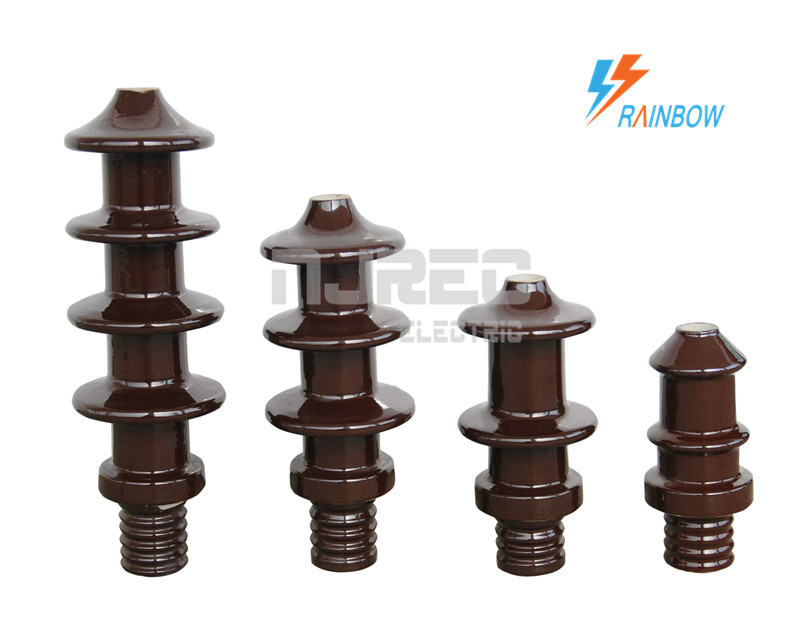

HV Transformer Bushings Assembly(DIN42531) inculde:
Porcelain, Metal Parts/Accessories, Gaskets

12kV 250A / 24kV 250A / 36kV 250A
10NF 250A / 20NF 250A / 30NF 250A

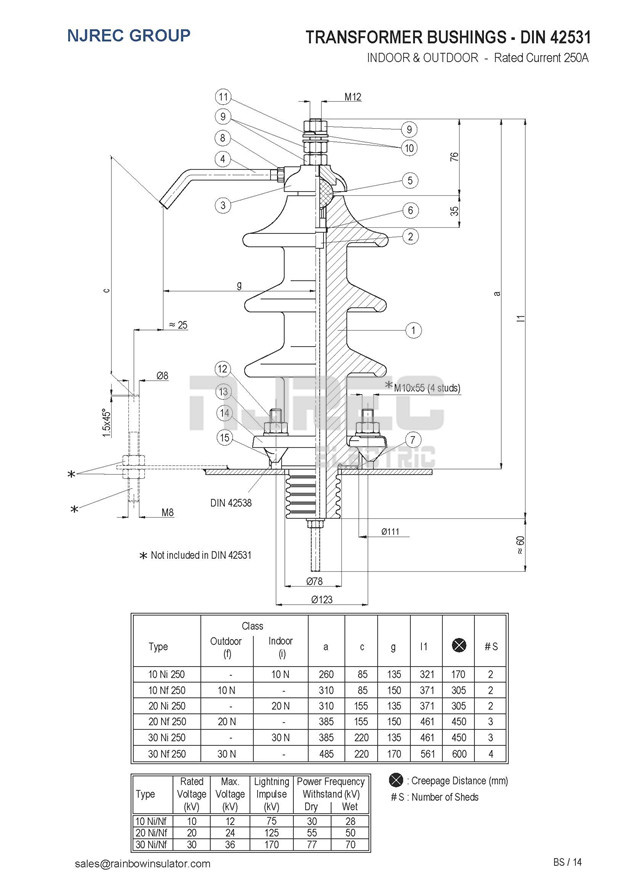

Drawings:

Outdoor DIN Standard Transformer Bushing with Complete Accessories:
According to customers specification ;
Tin plating is possible on the brass upper parts.
Fixing metals can be Stainless Steel A2-70 or Steel plated.
Gasket types: NBR, CORK, or Presspan

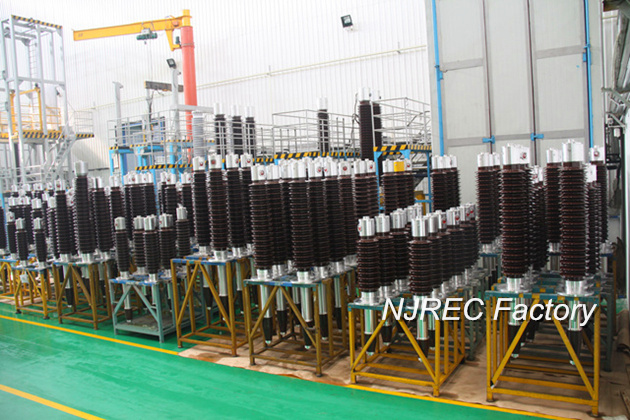

Our Plants:

Certificates:

FAQ:

Q1. What's the payment term ?
A. T/T and L/C is acceptable and TT will be more appreciated. 30% deposit, 70% balance against B/L copy.
    Or 100% irrevocable LC at sight.

Q2. How to buy your ideal products?
A. You can provide us with your drawings with specifications, we will produce as per your drawing.
     Or we can design as your requirements if you do not have a clear plan.

Q3. What is your Packing/Package ?
A. Standard export packing or Customized packing as your request.

Q4. Would you accept to use our logo ?
A.  OEM/ODM can be acceptable.

Q5. What kind of certificate you have ?
A. Our company already achieve ISO9001 certificates and we have test reports.

Q6. What else can I do for you?
A. Our salesmen will reply your inquiry within 24 hours. We can give you any support on the technique
    & other aspects.

Contact Us:

Nanjing Rainbow Electric Co., Ltd
Add:No.396 Heyan Road, Nanjing, Jiangsu China
Tel: +86-025-86705902
Fax: +86-025-86705902
Post: 210028
Website: http//www.insulatormfg.com

Prod Model:	DIN Type
Standard:	DIN42530
Application:	High-voltage
Material:	Porcelain
Structure:	Bushing Insulator
Type:	A Type Insulator

Nanjing Rainbow Electric Co., Ltd (NJREC GROUP) is one of leading insulators and transformer components manufacturer in China. We also undertake new transmission line projects and substation constructions, as well as swithgear and capactior insulator & bushing production and exporting.

NJREC Group headquarters is located in nanjing city. We consist four branches: 1- Insulators and Powerline hardwares plant, 2- Transformer bushing and accessories plant, 3- Silicone rubber insulator & bushing plant, 4- OIP & RIP bushing plant.

NJREC has already exported to North America, South America, Australia, Southeast Asia, Africa, Europe and 20 other countries and regions. Our manufacture applies to ISO 9001 Quality Management System, and we always focus on research, development and innovation.

NJREC has built a reputation for high quality products, short, consistent lead-times and responsive customer service. And has kept its development process, considering his responsibilities and missions about being one of the esteemed and respectful companies in the substation, transformer industry, transmission and distribution sector.
