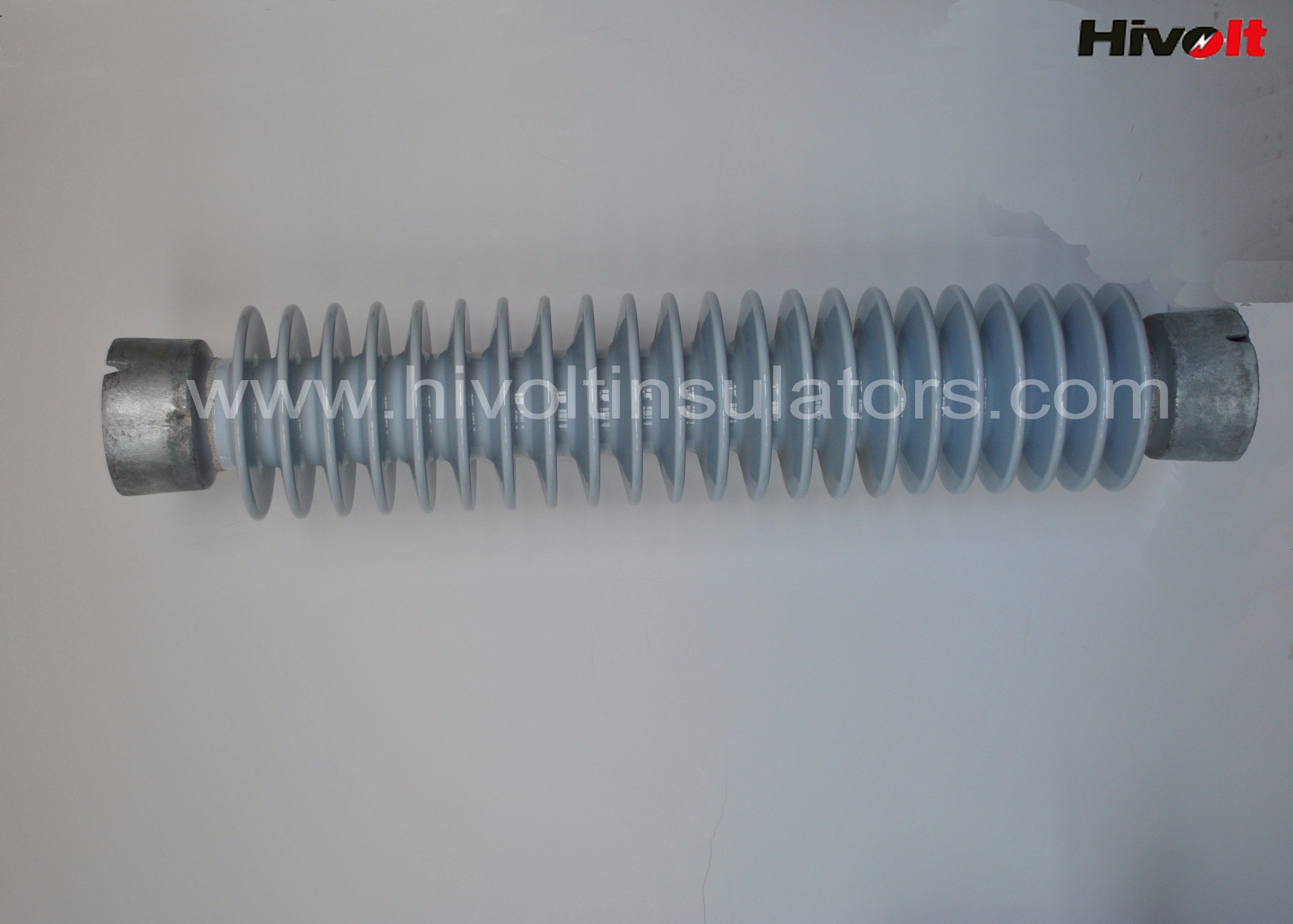

Porcelain Station Post Insulators for Transmission and Substation

Porcelain Station Post Insulators for Transmission and Substation
Price: US $ 3-50/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P



1) We supply high quality station post insulators according to IEC, ANSI standard and customers'              specifications. C8-550 , C8-1050 , C10-1175, C12.5-1800 etc.

2) The color of station post insulator can be made as brown, light gray, white.

3) The station post insulator can be made upto 1000KV, 30KN.

   The shapping method in both Isostatic pressing and wet process are all available.

4) The product quality will beyond your imagination.

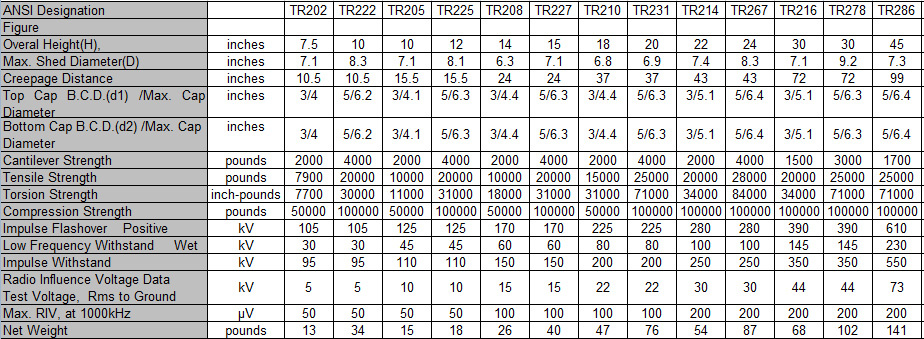

5) We offer ANSI standard line post insulators, for example : TR202, TR205, TR208,TR216, TR286, TR304    etc. Or according to IEC Standard.
Prod Model: TR202
Type 1: ANSI Standard
Type 2: IEC Standard
Type 3: Porcelain Station Post
Type 4: Polymer Station Post
Application: Low-voltage
Material: Porcelain
Structure: Post Insulator
Type: A Type Insulator
Brand: Hivolt
Dalian Hivolt Power System Co., Ltd. ( the former Hivolt Insulators Co., Ltd. ) is a reputable insulator manufacturer. It was set up in year 1990 with product range of porcelain insulators, composite insulators, and relevant metal fittings for transmission & distribution lines.

We look the quality as our company Life, and keep improving products quality. We strictly control the whole manufacturing process according to ISO 9001: 2008 edition, and focus on each quality details from raw material to insulators performance test. The powerful test facilities can make sure that each product under control.

We can supply insulators according to IEC standards, ANSI standards, BS standards or customer specifications. Porcelain glaze can be brown, light gray, white or blue. Composite insulators' shed colour can be light grey or red. In the mean time, we also supply high quality tonghened glass insulators for domestic market and overseas market.

Dalian Hivolt Power System Co., Ltd. is a reputable supplier, we have successfully supplied many kind of insulators to more 30 countries and regions due to reliable quality & reasonable price. We promise if any insulator from our company has quality defect, we will replace them at free charge in 12 months after receipt. We hope to set up a long term cooperation with you and enjoy the course together.
