Porcelain Strain/Stay Insulator 54-2

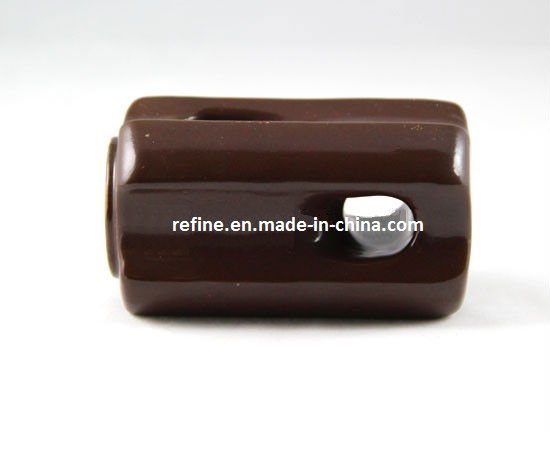

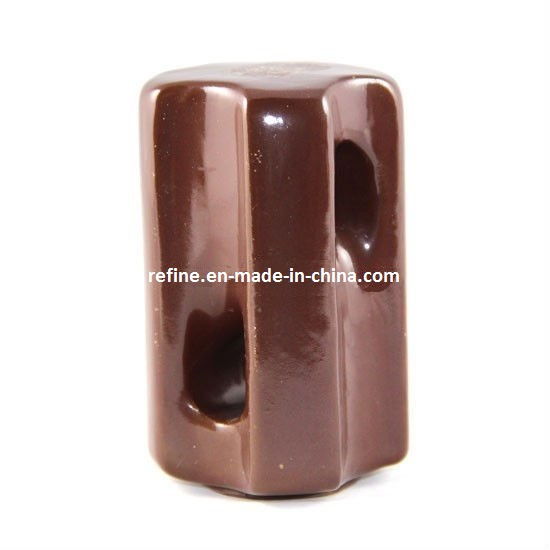

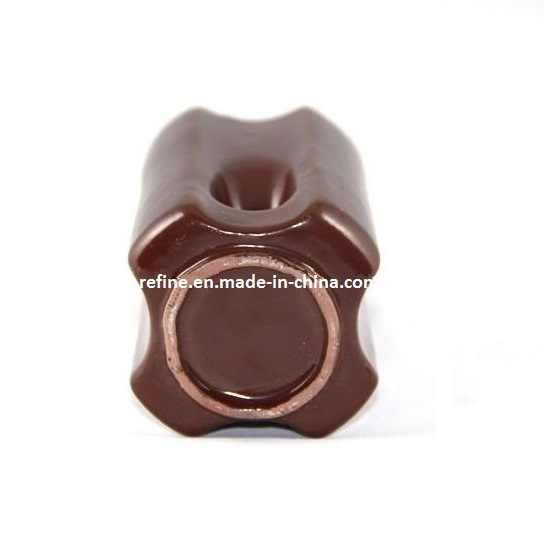

Name: Porcelain Strain/Stay Insulator 54-2
Brand: all-electronics-online.com
SKU: 728958635
Availability: InStock
Rating: 4.9 (56 reviews)

Price:	US $ 0.15-0.25/Piece
Trade Terms:	FOB,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	54-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Porcelain Insulator:	Height: 108mm
Long Life:	High Voltage Withstand Capactity
Structure:	Strain Insulator
Material:	Porcelain
Application:	Low-voltage
Type:	ANSI
Brand:	Refine
Color:	Brown

Product Description

Type: Stay insulator
Material: Porcelain
Application: Insulation for Low Voltage lines
Standard: ANSI
Color: Brown or Light Grey

Standard Technical Particulars
Creepage Distance: 48mm
Mechanical Failing Load: 53KN
Power Frequency Flashover Voltage (Dry): 30kV
Power Frequency Flashover Voltage (Wet): 15KV
Certification: CE & ISO9001
OEM Service: Available

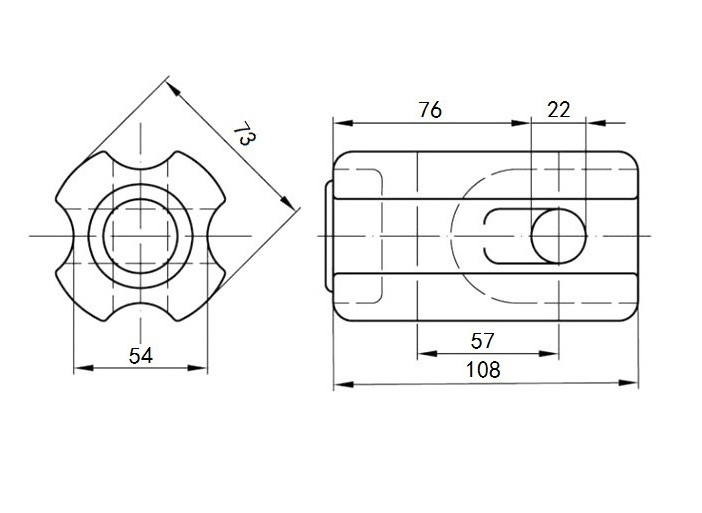

Dimension Drawing

Side View

Back View

Why Choose us?

We have our own factory which has more than 20 years experience in porcelain products.

We have a trained team of engineers and professional staff.

We have excellent quality products with strict quality control process.

We have competitive factory direct price.

We can deliver the goods in time and offer you the best service before and after sales.

How to contact us?

Mr. Zhou/Sales Manager

Tel: +86 755 86640416

Fax: +86 755 86640419

Type		54-2
Creepage Distance (mm)		48
Main Dimensions (mm)	H	108
	h	57
	h₁	76
	D	73
	d	54
	d₁	22
Mechanical Failing Load (KN)		53
Power Frequency Flashover Voltage	Dry (KV)	30
Power Frequency Flashover Voltage	Wet (kV)	15
Application Standard		ANSI
