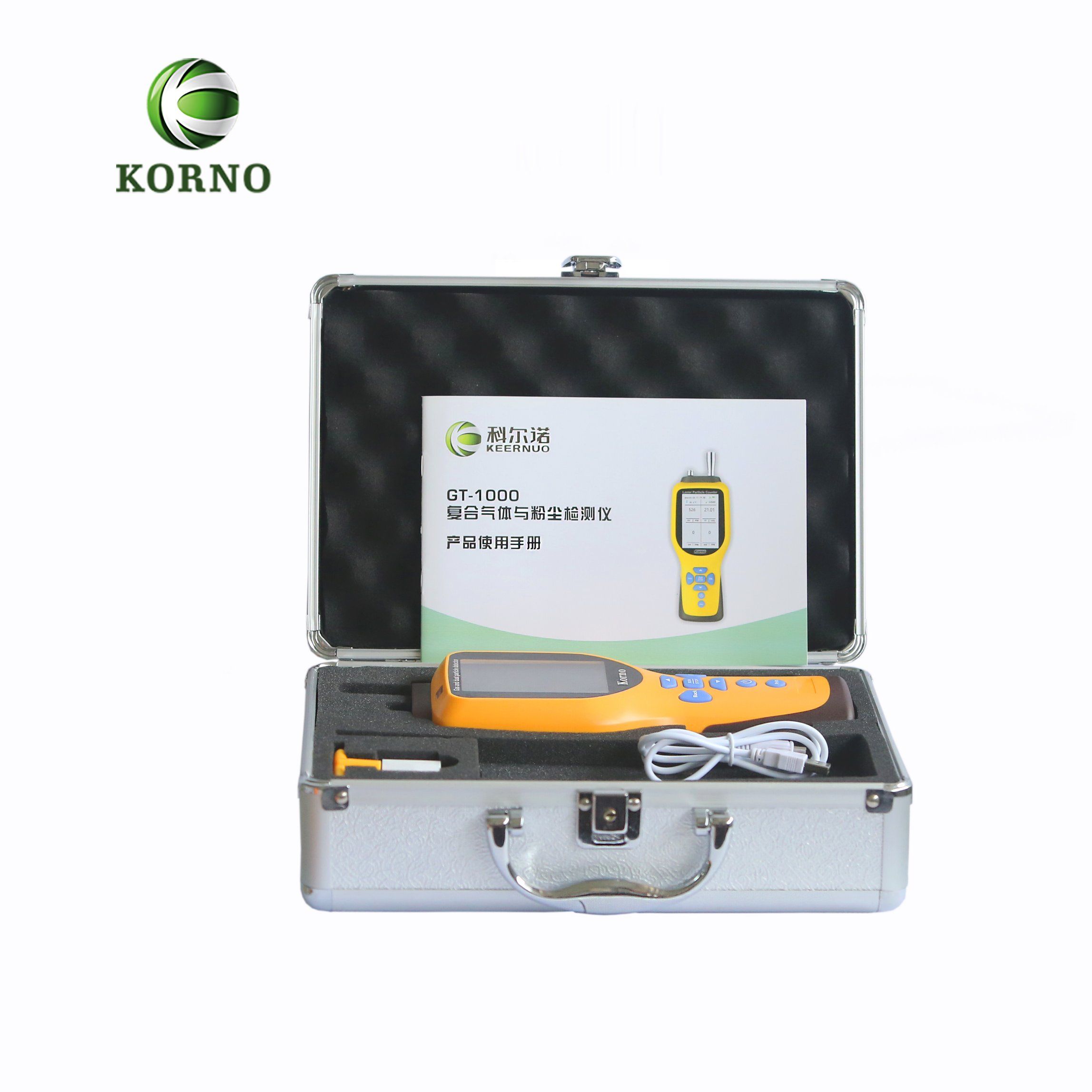

Portable Ethanol Combustible Gas Analyser with Large Data Logger
>>> Description:

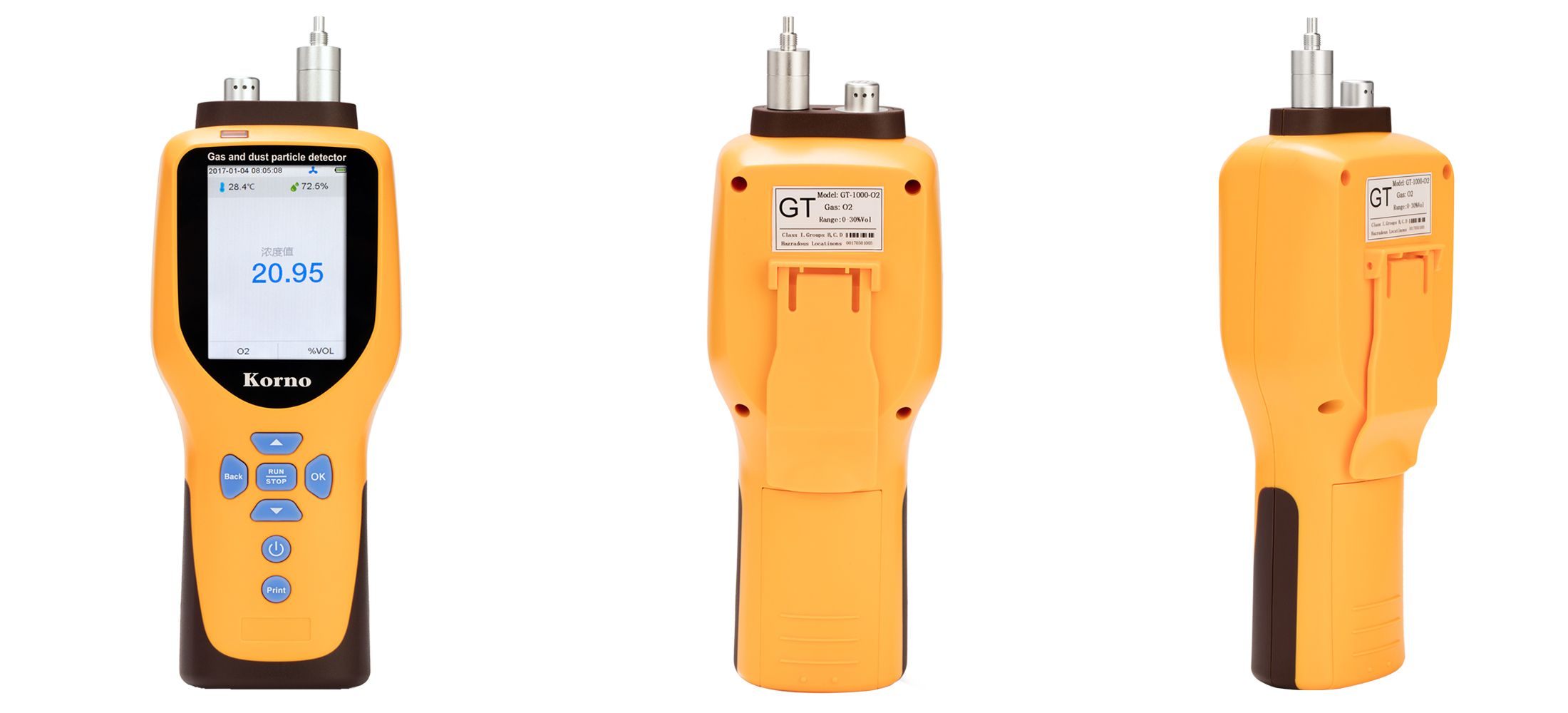

GT-1000 series multifunctional gas detector are handhold gas and dust detector which can be configure flexibly up to 5 gas sensors or 3 gas sensors plus 1 dust sensor,and can simultaneously detect temperature and humidity of the sample gas.
>>>Features:
>>>Specifications:| Product type: | Portable, Ethanol(C2H6O) |
| Detection Range: | 0-1%,5%VOL |
| Resolution: | 0.01%VOL |
| Scalable gas sensor : | User can customize up to 5 gas sensors in any combination,please refer to the sensor parameters |
| Dust sensor : | Laser dust sensor (0.5um,1.0um,2.5um,10um) |
| Temperature and humidity: | Temperature detection range:-40 ~ 120ºC
Humidity detection range:0-100%RH |
| Detection pattern: | Pumping,the flow rate is adjustable. |
| Detection Accuracy: | ≤±3%F.S | Linearity Error: | ≤±1%F.S |
| Reaction Time: | ≤20 S(T90) | Zero drift: | ≤±1%(F.S/Year) |
| Detection Method: | Real-time detection mode and timing detection,Cycle detection mode mode can be switch freely |
| Storage Method: | Automatically saving and manually saving is available,
Up to 100,000 group data ,user can view history data on the display. |
| Explosion Proof Sign: | Exdll CT4 (IA) | Shell Case material: | ABS+PC |
| IP rating: | IP66 | Operating Temperature: | -30 ~ 60ºC(-22~144ºF) |
| Power: | 4000mA high capacity polymer rechargeable battery | Relative Humidity: | ≤90%RH,Non-condensing |
| Dimensions / Weight: | 220*88*55 mm(L×W×H)
0.5 Kg(net weight) | Operating Pressure: | -30Kpa ~ 100Kpa |
>>> Details

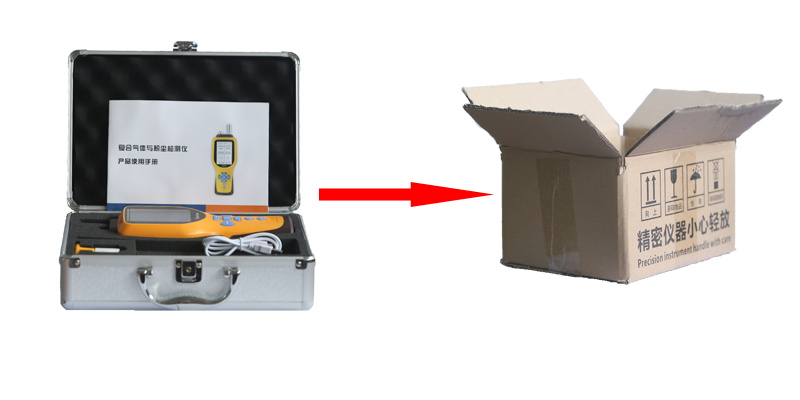

Packaging and Shipping:1:Gas detector 2:Portable aluminum Case3:User manual4:USB charger+Data cable
5:Calibration cover
Company Information:
Main Products:Handle gas detector,Portable gas detector,Online gas detector,Controller,Gas pretreatment System,etc.
Mangement Team: R&D departments,Processing Plants,Assembly Plants,After-sale Technical Support Departments,Domestic Sales and Overseas Sales Departments,etc.
Main Markets:Asia ,Europe and America,more than 30 countries.
Customize Service:1) Show your company name and logo at the boot interface
2) Print your company name,information,logo at the label and manual
3) Design stainless steel nameplate with your company name for free(≥20PCS)
4) We can also silk-printing your Logo,design another color of the case for you
if you have a large order.For more details,please contact us^ ^
Our service:
1.All products and accessories have been 100% tested before shipping.
2.We provide 12-Months warranty for non-deliberate damage.
3.OEM & ODM are welcomed. F&Q:Q1:Can I have a sample order?A1: The sample order to test are welcomed at the first time.
Q2:How about your production capacity and quality control?A2:We have written instructions for incoming material&finished products inspections and testing. All the finished products will be 100% inspection and all the non-conforming units will be clearly
marked and segregated to repaired and re-inspection.
Q3:How can I get a good price?
A3:We are 100% sure that we can provide you high value with competitive price and please attach your detailed request, application place, order quantity, delivery mode,payment terms to the inquiry mail ^ ^
Contact US:TEL:+86-0755-86110165-666
FAX:+86-0755-86110165-555
Mobile phone+86-18123785827 Evina Wong
Shenzhen Korno Import& Export Co., Ltd is one of the top gas and dust particle detector manufacturer in China, with more than 10 years research and production experience. Our products mainly include Handheld Gas Detector, Portable Gas Detector, Online Gas Detector, Controller, Gas Pretreatment System ect. And we have passed ISO9001: 2015, ISO14001: 2015, OHSAS: 2007, CMC and Explosion-proof certification for our products.
We have associated factory named Shenzhen Korno Electornic Technology Co., Ltd, the factory was established in 2008 with 45 employees and occupies an area of more than 1000 square meters
We have our own R&D departments, processing plants, assembly plants, after-sale technical support departments, domestic sales, overseas sales departments, etc.
The company has advanced production equipment and testing instruments, excellent marketing team and partners both at home and abroad, perfect management of the product market development and product after-sales service.
Our main market is Asia, Europe and America, more than 30 countries.
Our customers are: Mordoch University, HUANGKUANG University, Humboldt University Berlin, S. P. Refinery. Co., Ltd, China National Petroleum Corporation, etc.
