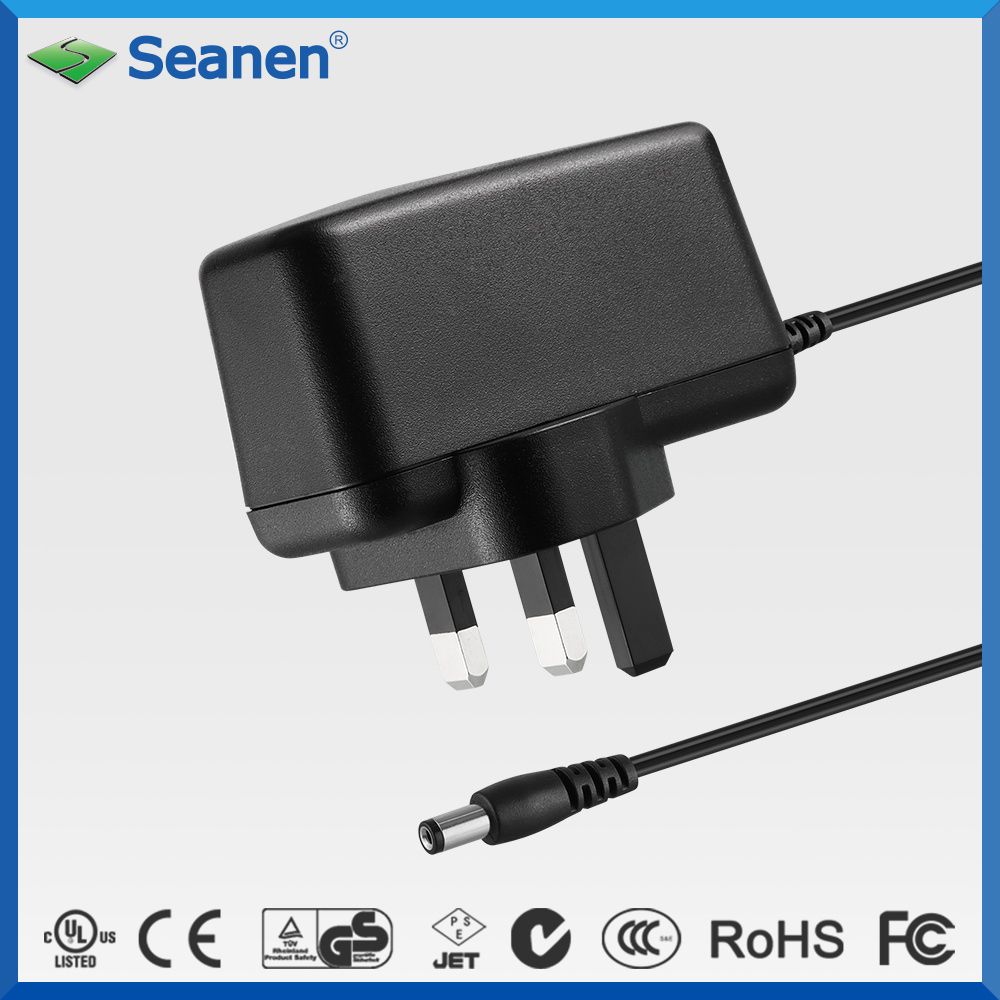

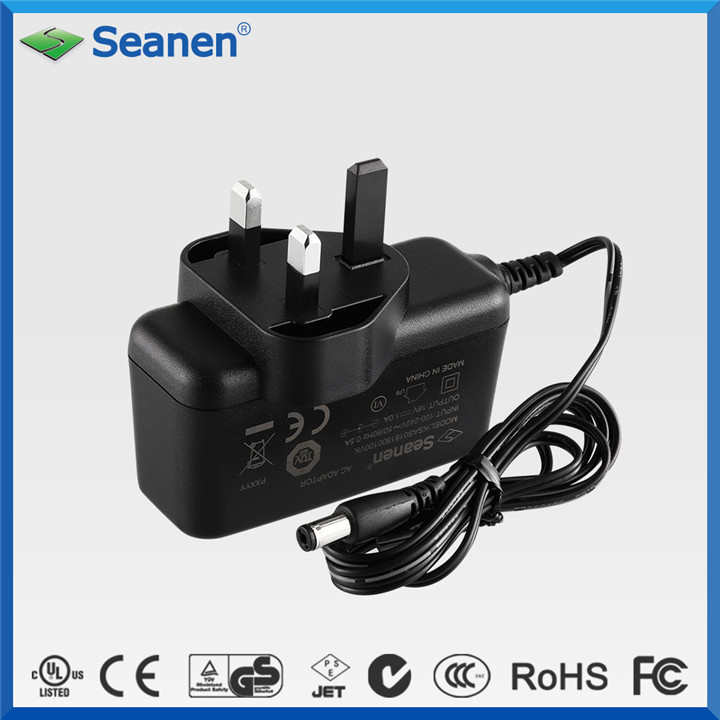

Portable Switching 18W BS AC DC Universal Power Adapter
Adapter Description:
| Input | Input voltage | 90-264VAC |
| Frequency range | 47-63Hz |
| Inrush current | 50A Max, 240VAC at max load |
| Power consumption (no loading) | 0.1W max |
| Energy efficiency | VI |
| Output | Voltage | 5-24VDC |
| Current | 0.1-3A |
| Power | 18W Max |
| Load regulation | +/-5% |
| Hold-up time | 10ms minimun at 115V AC / full load |
| Connector | DC cable | 2468 2C 6FT or others |
| DC plug | Per customer request |
| Protections | Short circuit protection | Yes |
| Over voltage protection | Yes |
| Over current protection | Yes |
| Envionmental requirements | Operating Temperature | 0-45°C |
| Storage Temperature | -20-70°C |
| Operating Relative humidity | 10-90% RH |
| Others | MTBF | 50K hours at 25'C |
| Led indicator | / |
| Size | 85.5*43.8*31.7mm (L*W*H) |
| Safety Approvals | UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/KO/EMC/FCC |
| Standards | UL60950-1,IEC/EN60950-1,AS/NZS60950-1,J60950,FCC part 15 class B |
| Compliance | RoHS, PAHS, REACH, WEEE |
Feature:
1) High quality, High efficiency, extra safe design
2) I/P: 100-240VAC 50/60Hz, O/P: 5-24V, 0.1-3A, 1-18W
3) RoHS, REACH, PAHs, CEC VI compliant
4) UL, GS, CE, C-TICK, PSE, FCC approved
Protections
1) Short circuit protection
2) Over voltage protection
3) Over current protection
Envionmental requirements
1) Operating Temperature: 0-40oC
2) Storage Temperature: -20-80oC
3) Operating Relative humidity: 10-90% RH
Company Brief Introduction:
Seanen is a technology company specializing in developing, manufacturing and marketing high quality AC/DC adaptors, switching power supplies, chargers. Being professional and dedicated to the industry, Seanen is aim to provide the highest standard products combined with extra safe, high efficiency, high stability ,cost effective and environment-friendly.
Our standard products cover the full range items, from 0.5W to 120W output power, safety approved including UL/cUL, TUV-GS, CE, C-TICK, PSE, K-mark, CCC, EMC and FCC etc.
compliant with DOE VI, RoHS, PAHs, REACH and WEEE.,
we can also offer customized service to design the optimal solution to meet the most exacting requirements that your applications demand and put into production promptly.
Based on first-class products, competitive price and excellent service, we believe it will be a long term business relationship once you work with us.
FAQ
1. Are your products compliant with efficiency level VI ?
A: Yes, our products are compliant with USA DoE VI, and EU CoC Tier2 as well.
2. Are your products compliant with RoHS ?
A: Yes, all of our products are compliant with RoHS, also REACH and PAHs.
3. Can I get a couple of samples?
A: Of course you are welcomed to get samples for free.
4.What's the MOQ you accept?
A: MOQ is 2,000pcs.
5. What are the advantages of your products?
A: Our products have reliable quality with completed certifications and on time delivery. Besides, our integral manufacture (e.g.moulding, plastic injection, metals and cables making etc) can ensure our competitive price.
Established in 1999, Seanen is a technology company specializing in developing, manufacturing and marketing high quality AC/DC adaptors, switching power supplies, chargers and LED drivers. Being professional and dedicated to the industry, Seanen is aim to provide the highest standard products combined with extra safe, high efficiency, high stability, cost effective and environment-friendly.
Our factory covers more than 15, 000 square meter of production space, staffed with more than 1, 000 skilled employees, with a capacity of 50K units per day. Our highly vertical integration manufacturing covers from moulding to plastic injection, metal parts, SMD, PCB assembly, aging test, ICT test etc, so as to ensure the stable high quality, competitive price and punctual delivery.
Our standard products cover the full range items from 0.5W to 120W output power, and safety approved including UL/cUL, TUV-GS, CE, C-TICK, PSE, K-mark, CCC, EMC and FCC etc. Our products compliant with CEC V, RoHS, PAHs, REACH and WEEE., we can also offer customized service to design the optimal solution to meet the most exacting requirements that your applications demand and put into production promptly.
Based on first-class products, competitive price and excellent service, we believe it will be a long term business relationship once you work with us. Seanen, your reliable power partner.
