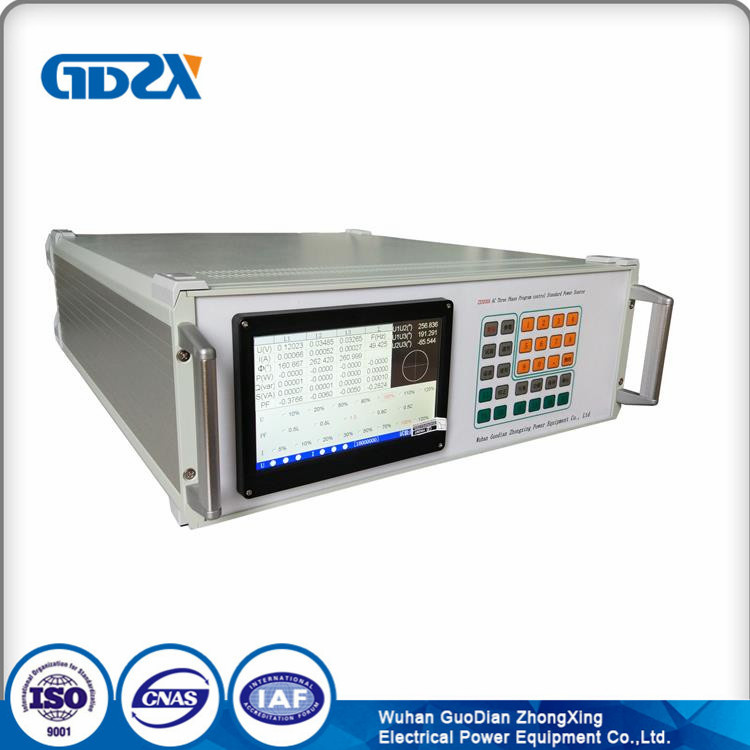

Portable Three Phase Program control AC Power Source

Name: Portable Three Phase Program control AC Power Source
Brand: all-electronics-online.com
SKU: 819109705
Availability: InStock
Rating: 4.7 (32 reviews)

Price:	US $ 7000-9000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZX3030A

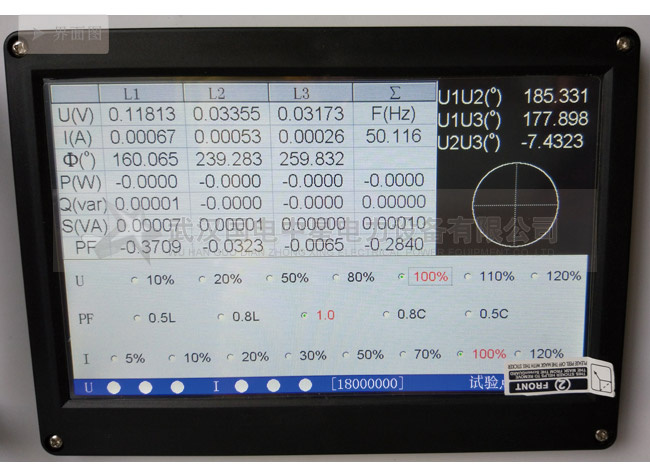

Display And Operation:	TFT color LCD, touch panel, mask button
Communication Interface:	RS232
Output Voltage:	10V-500V, gears 57.7V, 100V, 220V, 380V
Output Current:	0.5mA~24A, Gears: 0.2A, 1A, 5A, 20A
Power Factor Regulation Range:	-1 ~ 0 ~ + 1
Frequency Regulation Range:	40 Hz ~ 70 Hz
Output Harmonic:	2~51th order
Output Type:	Triple
Warranty:	1 Year
Output Power:	1 - 50W
Input Voltage:	110-220V

Product Description

The instrument is featured with meter-power combination structure, full digital closed loop technologue, embedded system, large TFT color LCD, CPLD chip, and advanced A/D converters, little weight and small volume. It is widely used in electric energy metering industry, electrical laboratory and other relevant departments

Features:

1. Design with touch panel and mask button, massive information to see and simple to use
2. built-in standard energy meter for digital closed loop feedback, U, I, Φ, F, W, VAR, VA, PF all can be used as reference
3. Perfect over circuit, over voltage. short circuit, open circuit, over heat, over load protection
4. Three phase rated current rated voltage can be presetted by users
5. Multiple choose of voltage, current, phase testing point
6. Capable of measuring single phase, three phase, active power energy meters and reactive power energy meters
7. Large memory for data storage, and searching data is very convenient
8. With R232 communication interface for PC control and software upgrade

Technique Parameters:

AC Phase voltage output
Regulation fineness: 0.01% RG
Resolution: 6 effective digits
Accuracy: better than 0.05% RG
Stability: better than 0.01%RG/ 1 min
Distortion degree: <0.1% (non capacitive load)
Output power: rated 25 VA/phase
Full load regulation rate: ≤0.01% RG
Range: 10V - 500V
Four gears: 57.7 V, 100 V, 220 V, 380 V, switch automatically
Long-term stability: ± 60 PPM/year
AC current output
Adjust fineness: 0.01% RG
Accuracy: better than 0.05% RG
Resolution: 6 effective digits
Stability: <0.02% RG / 1 min
Distortion degree:< 0.1%
Output power: rated output 20 VA/Phase
Full load regulation rate: 0.01% RG
Range: 0.5mA~24A
Gears: 0.2A, 1A, 5A, 20A, switch automatically
Power output
Accuracy: better than 0.05% RG
Stability: better than 0.01% RG / 1 min
Resolution: 6 effective digits ( active power, reactive power, apparent power)
Power factor
Adjusting range:-1 ~ 0 ~ + 1
Resolution: 0.00001;
Accuracy: 0.0005
Phase angle
regulation range: 0 ~ 359.99°
Resolution: 0.001°
Accuracy: 0.02°
Frequency
Adjusting range: 40 Hz ~ 70 Hz
Resolution: 0.001 Hz
Accuracy: 0.002 Hz
Harmonic output: 2~51th order harmonics
