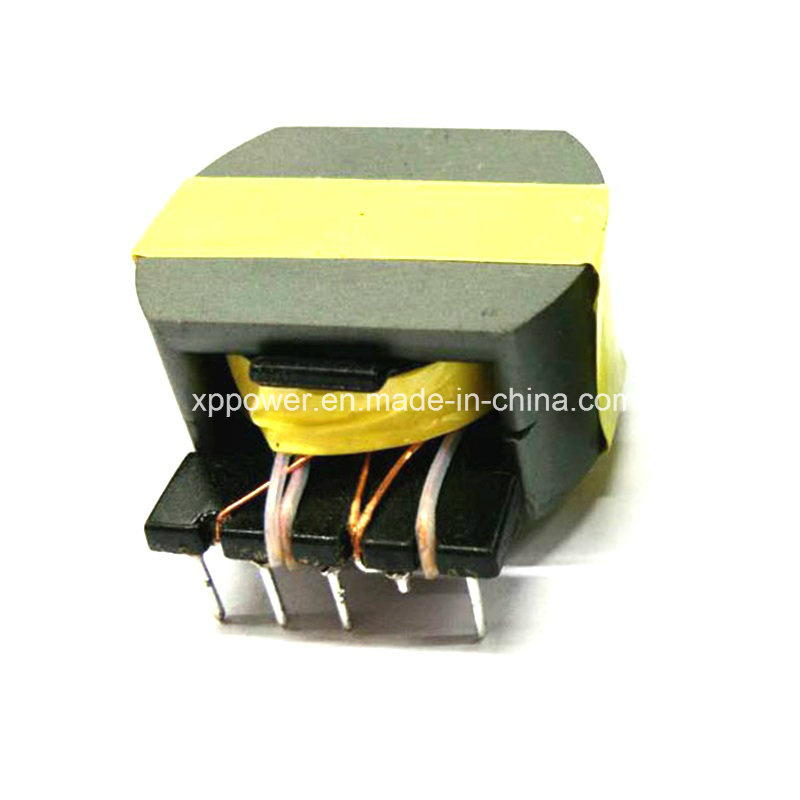

Pot Type High-Quality Ultra-Thin High-Frequency Power Transformers

Name: Pot Type High-Quality Ultra-Thin High-Frequency Power Transformers
Brand: all-electronics-online.com
SKU: 804773765
Availability: InStock
Rating: 4.9 (136 reviews)

Price:	US $ 0.35-0.41/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Electrical parameters:
• Voltage ratio: 1: 18V
• Core shape: POT (PC40, PC44, PC95)
• Frequency characteristic: High frequency (100KHz)
• Output power: 10-80W
• Operating temperature: -40 ºC to +155 ºC
• Storage temperature: -25 ºC to + 85 ºC
• Storage humidity: 30 to 95%
• Complies with UL insulation system requirements: class F, class H
Product Features:
• Low loss and low temperature rise
• High efficiency and low leakage flux
• High overload capacity and low noise
• Simple structure, stable and reliable
• Accept customization
Applications:
Widely used in audio series, low-voltage lighting systems, medical equipment, instruments, regulators, Induction Cooker, power adapter, and other home appliances.

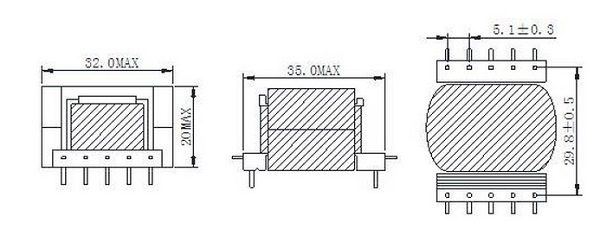

Model	Type	Length	Width	Height	1 Pins & Pin distance		2 Pins & Pin distance		Row spacing	Pin diameter
POT30-1	Vertical single slot	40	32	20	3	3.5/7	3	3.5/7	36	0.50
POT30-2		35	32	20	5	5.1	5	5.1	29.8	0.70
POT30-3		36.5	32	21.5	5	5.1	5	5.1	37.1	0.80
POT30-4		35	32	21.5	5	5	5	5	29.5	0.80
POT30-5		36.5	36	22.5	6	5	6	5	30.4	0.80

Prod Model:	XP-POT30
Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Shape Of Coil:	Pot
Brand:	XP Power

XP Power that was established in 1992 is a manufacturing, integrating research & development, trading company, supply as a whole. The company is one of the world's leading developers and manufacturers of power transformers, power inductors, choke coils, high frequency transformers and reactors solutions for the electronics industry with specialists who are versed in all the technical and legislation requirements. The products of XP Power are stable quality, full range of variety, prompt delivery, competitive price so that they are applicable in new energy, communication facilities, UPS power, household appliances, Medical instrument, monitor, automotive electronics and so many other fields. After over a dozen of years' development, the company has complete quality management system, scientific technology research and development system and good service team. And now XP Power has fixed assets to the value of USD 60 million and six hundred employees and three factories located in Foshan, Hefei and Xi' An. The company has an annual production capacity of 50 million PCS. Our main market is Europe, North & South America, Middle East and Asia.

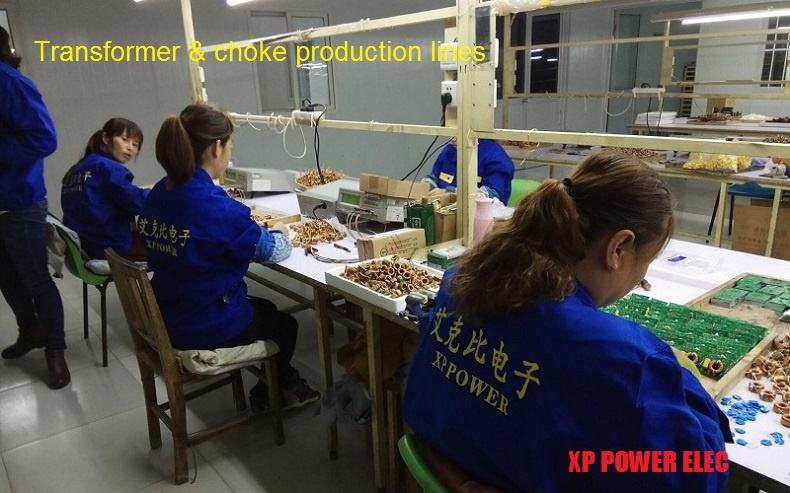

The company is equipped with advanced manufacturing equipment and testing apparatus as well as a R&D center comprised by various technicians, which can offer different customers different new products according to customers' needs, developing and researching more new projects. Our company always adheres to the high quality and technological innovation. In the process of production the rigorous quality inspection standards and inspection technique are used in order to realize the total quality management from the incoming inspection, process inspection, to the outgoing inspection, which guarantee the high quality. The quality of our products recognizes by some authorities and gets all sorts of world-class certification, such as ISO9001 and ISO14001, etc. Our products are RoHS and REACH compliant.

XP Power supplies its products to 30 countries across the globe. Every year, over 30 million coils are wound, over 20 million high frequency transformers are manufactured, and thousands of modules are mounted.
