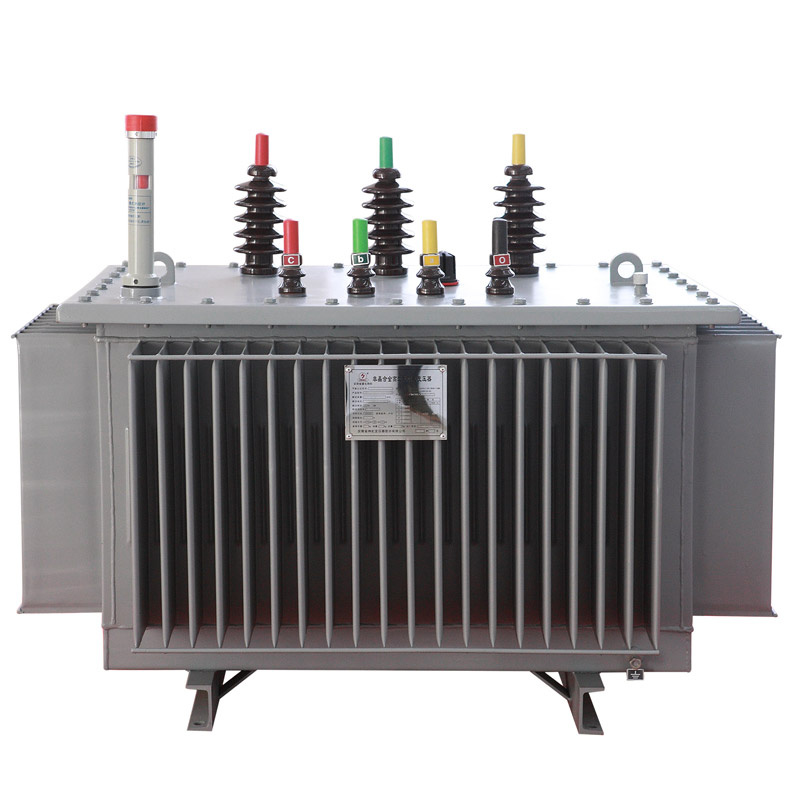

Potential Transformer 11kv Amorphous Transformer

Name: Potential Transformer 11kv Amorphous Transformer
Brand: all-electronics-online.com
SKU: 820782345
Availability: InStock
Rating: 4.4 (22 reviews)

Price:	US $ 1000-28000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Amorphous alloy iron core transformer is a new generation of energy-saving products, which has the advantages of low no-load loss, can be widely used in the urban and rural distribution network, especially suitable for the area focusing on energy saving.

Parameter (SH15M(F)-50~500/10GZ High overload amorphous alloy transformer )
Rating (kVA)	HV(kV)	LV(kV)	Connection symbol	No-load Current(%)	No-load Losses(W)	On-load Losses(W)	short-circuit impedance(%)
Rating (kVA)	HV(kV)	LV(kV)	Connection symbol	No-load Current(%)	No-load Losses(W)	On-load Losses(W)	short-circuit impedance(%)
50	6 6.3 10 10.5 11 ±5% or ±2×2.5%	0.4	D.yn11 Y.yn0 Yzn11	1.20	43	910/870	4
80				1.00	60	1310/1250
100				0.90	75	1580/1500
125				0.80	85	1890/1800
160				0.60	100	2310/2200
200				0.60	120	2730/2600
250				0.60	140	3200/3050
315				0.50	170	3830/3650
400				0.50	200	4520/4300
500				0.50	240	5410/5150

Application:	Electronic
Phase:	Three
Coil:	Amorphous Alloy Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Certification:	SGS
Shape Of Coil:	Amorphous Alloy Core
Brand:	Shenhong

Founded in 1992, Anhui Shenhong Transformer Co., Ltd. Has been the strategic partner of SGCC (State Grid Corporation of China ) for 15 years.

We are also a qualified supplier of China Southern Power Grid Corporation. There is a long-term partnership between Shenhong and many provincial power companies of Anhui, Henan, Hebei, northern Hebei, Shandong, Jiangxi, Jiangsu, Hubei etc.

We have passed through ISO9001: 2008 quality management system, ISO14001: 2004 environmental Management System.

Company registered capital is 80 million RMB.

Factory area covers 60 acres, possessing 200 sets of advanced production equipment.

We have 200 staff and workers, having the capacity of designing, development, and production.

Annual production capacity is 3 million kVA,

Main products:

10KV oil immersed transformers: S11, S13-30 ~ 1600/10 series stacked core, three-dimensional triangular wound core distribution transformers;

10KV dry type transformers: SG10, SG11, SCB10, SCB11-30 ~ 2500/10 dry-type transformers; KS11 mining transformers and various special variants;

10KV amorphous alloy core transformer: SH15-30 ~ 2500/10 of amorphous alloy transformer;

SH17-30-2500 / 10 shell-type amorphous alloy transformer;

Box-type transformer substation: ZGS11-Z (H) -50 ~ 1600/10 series (American type); YB (W) -12 / 0.4-50 ~ 1600/10 seires (European type);

35kV off-circuit tap changing distribution transformer: S11, S9 -50-2500kVA/35 series;

35kV on-load tap changing power transformers: SZ11, SZ9-/00 ~ 20000kVA/35 series;

Other transformers: Traction transformers and other special transformers.
