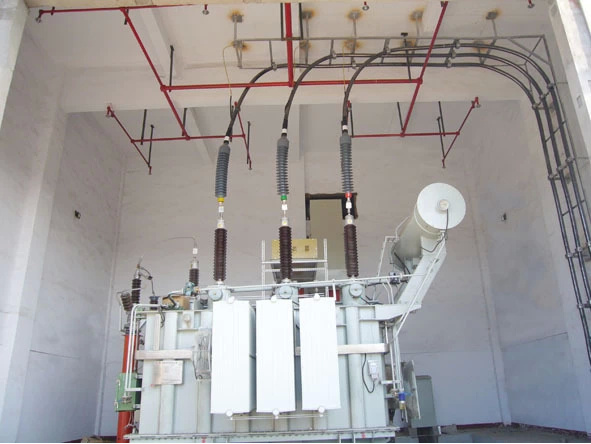

Power Cable Compound Bushing Outdoor Terminal 110kv
| Price: |
US $ 3500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Introduction
Compound Bushing Outdoor cable terminal is consist of a epoxy fiberglass tube and outside covered insulative silicon rubber compound bushing, which is of weather fastness. Both ends are sealed by aluminum alloy flange, possessing good corrosion resistance. And terminal bushing interior is filling with insulating silicone oil.
Application
- Indoor & Outdoor
- Pollution class: Apply to 1V pollution area
- Applied cross-section of cable standard: 240-1600mm2
- Terminal insulating level, Recommended Operating Temperature and short circuit temperature should be in accordance with the technical requirements of its matching cable.
Product Features
- Possessing all advantage of Porcelain Type Terminal
- Excellent Mechanical Properties
- Weather Resistance
- Excellent Explosion-proof Performance
- Light weight, easy to installation and easy to transportation
| NO. | Item | Unit | Standard Data |
| 1 | Approvals | | IEC60840, GB/T11017 |
| 2 | Basic Structure | | Compound Bushing |
| 3 | Conductor Pole | Material | | T2 |
| Specification | mm2 | 240~400 | 500~800 | 1000~1600 |
| Terminal Outer Diameter | mm | Φ28 | Φ45 | Φ50 |
| Connection with Cable Conductor | | Pressure welding |
| 4 | Corona-proof Cover | | Equipped |
| 5 | Sealing between upper-lower flange and pole/ Sealing between upper-lower flange and bushing | | No Sealing within 1 hour(Air pressure is 0.2M Pa) |
| 6 | Bushing | Technical Specification | | Ref. GB 772 |
| 7 | Stress Corn | Material | | Imported Ethylene Propylene Rubber |
| Structure | | Prefabricated Type |
| 8 | Epoxide Insulation | Material | | Ethoxyline resin |
| Structure | | Prefabricated Type |
| 9 | Stress Corn Hold-down Gear | Material | | Albronze |
| Structure | | Spring Compression Components |
| 10 | Terminal Filling Liquid ( Material ) | | Silicone Oil |
| 11 | Supporting Insulator | | Ref. GB/T 775 |
| 12 | Terminal Specification | mm2
| 240~1600 |
| 13 | Height ( From top of the support to peak of the pole) | mm | 1769 |
| 14 | Quality | Kg | 2120 |
| 15 | Rated Voltage, Uo/U | kV | 64/110 |
| 16 | Max. Running Voltage, Um | kV | 126 |
| 17 | Lightning Stroke Withstand Voltage Peak(±/10 times) | kV | 550 |
| 18 | Conductor Rated Temperature | Normal Condition | °C | 90 |
| | | Transition Condition(Circuit current maintain time is less than 5 seconds.) | °C | 250 |
| 19 | Rated Current | A | Not less than connective cable |
| 20 | Circuit Current | kA/s
| Not less than connective cable |
| 21 | Range of applicable environmental temperature | °C | -40~ +60 |
| 22 | Terminal insulation Creepage distances | mm | 4032 |
| 23 | Terminal Allowable Horizontal Pull of Connective Wire | kN | ≥2 |
| 24 | Service life of Terminal design | year | 30 |
| 25 | Sealing type of its tail | | Water proof ribbon, Cold sealing belt, seal pipe, heat-shrink tube |
| Metal shielding layer grounding | Material | | Tinned Copper Braided Wire |
| Electrical Connection | | Welded in tin solder or Lead sealing |
| Equivalent cross-section | mm2 | 240 |
| Prod Model: |
YJVGWI4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
160(Mm) |
| Section Area: |
1000-1600(Mm2) |
| Type: |
Single Hole Terminals |
| Material: |
Copper |
| Application: |
Transmission of Electrical Signals |
| Brand: |
Ville |
