| Prod Model: |
BZP-30KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Apply For: |
Wind Gernerator/Solar Panels |
| Output Wave Form: |
Pure Sine Wave |
| Two Start Mode: |
Reduction Voltage Start and Variable Frequency Sta |
| RS232 Or 485: |
Optional |
| Frequency: |
Can Adjustable |
| Product Type: |
DC to AC |
| Start Mode: |
Variable Frequency Start |
| Power Source: |
Solar Power |
| Application: |
Air Conditioner |
| Brand: |
Bangzhao or OEM |
Product Description

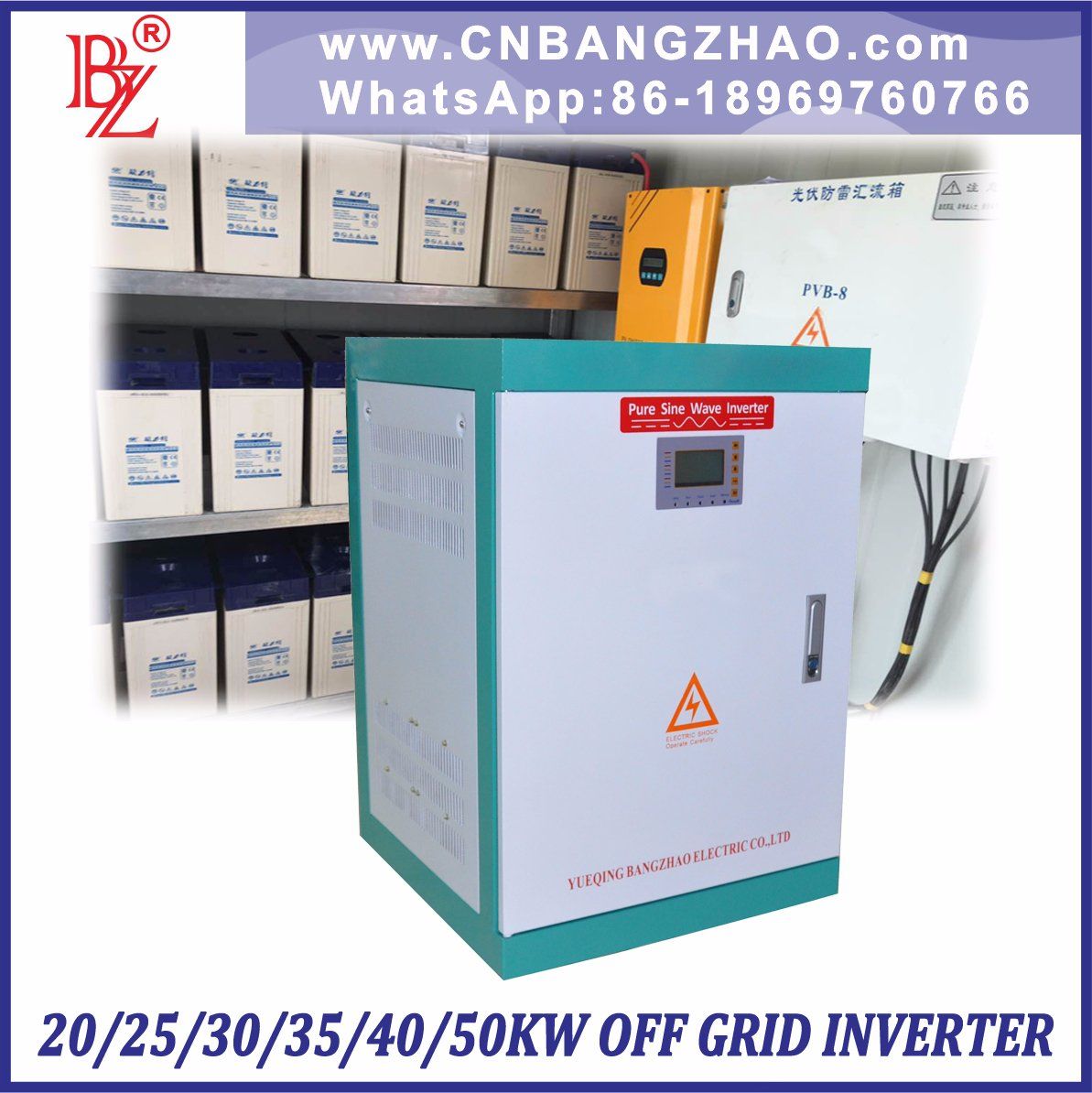

Power Frequency DC to AC Sine Wave Inverter built-in Charger optional

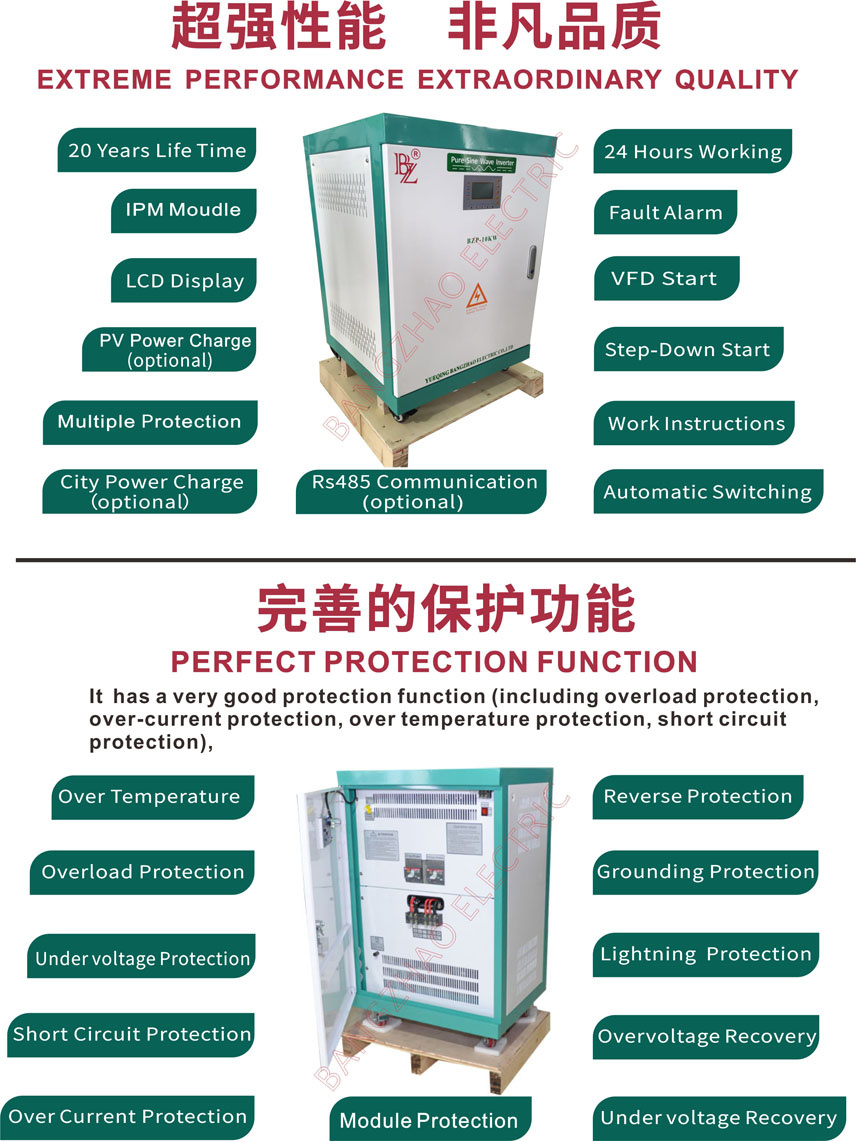

Technical Features:
* Using the fifth generation efficient IPM intelligent module from Japanese Mitsubishi, high efficiency and stable performance. It with powerful protection function, the protection for short circuit, over load, over temperature is more safe and reliable. It's service life can up to 15 years or more.
*Two kinds of start mode: Reduction Voltage Start and Variable Frequency Start. Customers can set start mode according to the type of their load. This function is very convenient for users and also reduce frequency converter's usage, which reduced the cost of equipment investment, easy to connect wires and control.
* Pure sine wave output with good transient response, little harmonic distortion, higher conversion efficiency and stable output voltage features.
*Adopted low frequency isolated transformer, high conversion efficiency and stable performance
* Output AC Power is suitable for all types of home appliances, electric tools, electric motors etc.
* Converter has the function of filtering the grid disturbance and interference at the same time, which is a good performance of stabilized voltage and frequency power, to provide a more stable and pure power supply environment for the backend devices
* Safety and reliable, the input single-phase electric and output three phase electric is complete electrical isolated.
* Pure sine wave output, has higher efficiency and higher capability of driving load.
*Output perfect protection function, with output over-voltage, overload, short circuit, over temperature, self-diagnosis protection and other protection
* Powerful data display function. LCD can display the DC input voltage, output frequency, phase voltage, phase current, AC bypass input voltage, output power KWH, time and date, temperature, fault code display.
* The input voltage, output voltage, frequency and phase can be custom made.
We can make products according to your requirements.
| Model | BZP-30KW | BZP-40KW |
| Isolation mode | Low Frequency Transformer |
| DC Input | Rated voltage (Vdc) | 240V | 300V | 360V |
| Rated current(A) | 125A | 100A | 111A |
| AC Output | Rated output power | 30KW | 40KW |
| Output waveform | Pure Sine Wave |
| Rated Voltage | 220V±3% | 380VAC±3% | 220V±3% | 380VAC±3% |
| Phases | Single phase | 3 phase 4 wire | Single phase | 3 phase 4 wire |
| Rated current(A) | 136A | 45.5A (phase current) | 182A | 61A (phase current) |
| Frequency | 50Hz or 60Hz |
| Rated output voltage range (V) | 220/230/240/380/400/415VAC optional |
| Power Factor(PF) | 1 |
| Overload Ability | 150%, 5 seconds |
| Efficiency | >93% |
| Waveform distortion rate (THD) | <3%(Linear load) |
| Dynamic Response (0 to 100% load) | 5%,≤50ms |
| Display | LCD |
| Running mode | Working continuously |
| Electrical insulation properties | 2000Vac, 1 Minute |
| Communication interface (optional) | RS485 |
| Protection Function | Protection | Input reverse polarity, under voltage, overvoltage, output over-current, short circuit, overheating etc. |
| Cooling method | Fan-cooled |
| Short-circuit protection | No automatic recovery, need to restart the machine |
| Working environment | Noise ( 1 meter) | ≤50dB |
| Degree of protection | IP20(indoor) |
| Working Altitude(m) | ≤2000 |
| Working temperature | -25~+55ºC |
| relative humidity | 0~90%,non-condensing |
| Mechanical dimension | Depth* Width * Height | 650x750x1100mm |
| Weight (Kg) | 260Kg | 350Kg |
also you can optional "dry contact control "start the generator.
1, the first normal open dry contact control generator start, when the inverter shuts off from low DC voltage,
the dry contact into normal closed status to start your generator.
2, the second normal closed dry contact, when the battery voltage recover to normal,
the inverter start to work and the normal closed dry contact disconnected, can be used to stop the generator.
In a word,we can do according to your requirements.

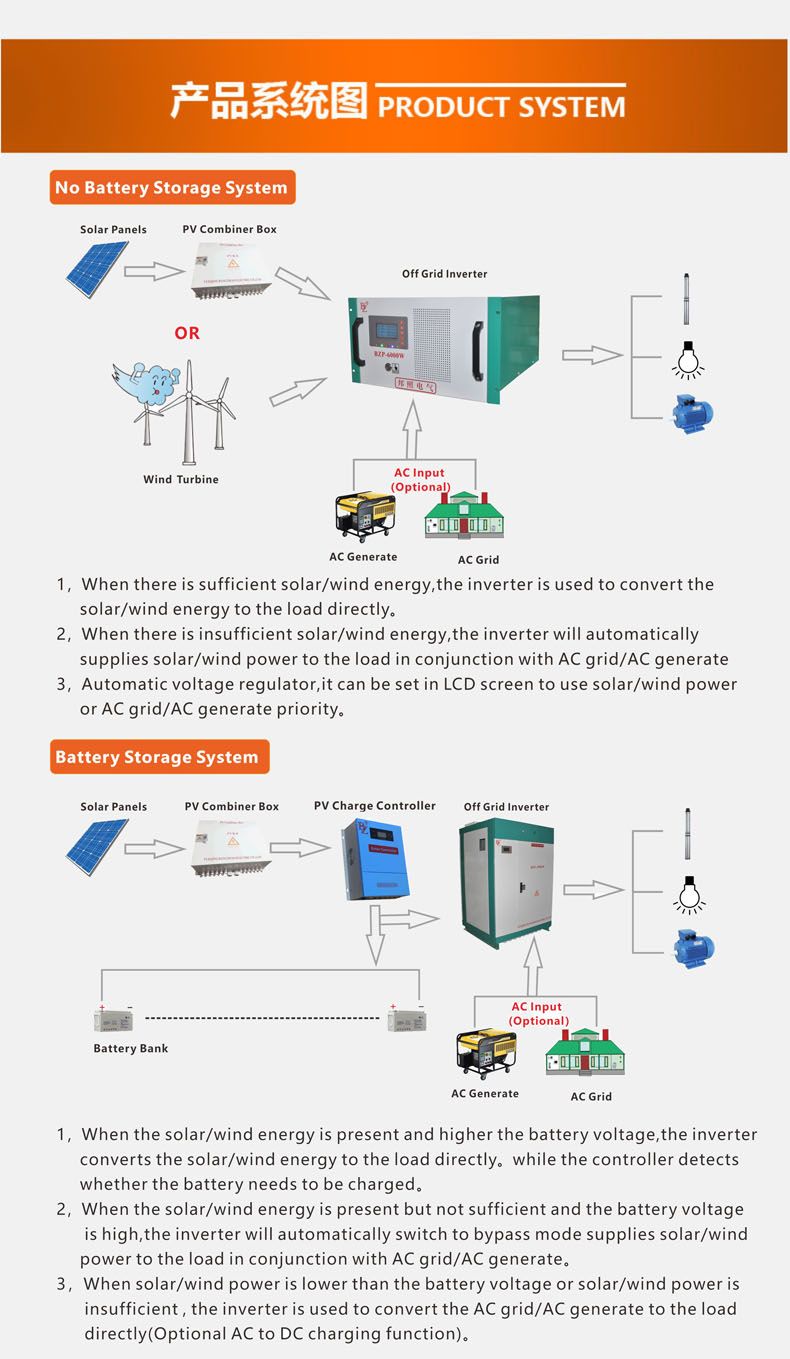

100-400V or 300-600V or 400-800V wide input for without battery and controller system
Voltage and frequency converter,
1,50HZ to 60HZ or 60HZ to 50HZ
2,Single phase 220VAC to 3 Phase220VAC
(L+N=120VAC to L1+L2+L3=220VAC,L1,L2,L3+N=127VAC)
3,2 phase 240VAC to 3 phase 220VAC
(L1+L2=240VAC,L1,L2 +N=120VAC to L1+L2+L3=220VAC,L1,L2,L3+N=127VAC )
4,3 Phase 220VAC to 3 phase 380VAC
(L1+L2+L3=220VAC,L1,L2,L3+N=127VAC to L1+L2+L3=380VAC,L1,L2,L3+N=220VAC)
5,3 Phase 380VAC to 3 phase 240VAC
(L1+L2+L3=380VAC,L1,L2,L3+N=220VAC to L1+L2+L3=240VAC,L1,L2,L3+N=138VAC)
Also can choose with DC input
FAQ:
Q 1. What's the payment term?
A. We accept TT,Western Union,Paypal,MoneyGram.
Q 2.How's the delivery time ?
A. Is due to order quantity, usually it will take about 3-7days for sample production,
Q 3.Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or wooden case for protection.
Q 4.Would you accept to use our logo ?
A.It's no problem to do OEM.
Q 5.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs and big capacity near 500pcs.
Q 6.Where is your market?
A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 7. What kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE, SAA, G83 G59 etc .
Q8. What is the warranty period ?
A. Normally 1 year ,if order quantity enough can be extended to 3 years.
Q 8.How about the lifetime?
A:The life time for inverterl is 15-20years.
