| Prod Model: |
LGA |
| Environmental Certification: |
ISO14001 |
| Quality Certification: |
ISO9001 |
| Safety Certification: |
CQC03003095~3097 |
| Other Certification: |
RoHS |
| Type: |
Fixed Inductor |
| Structure: |
Magnetic Bead |
| Brand: |
Liwang |
Product Description
Product Description
| Product: | Power Transformer Coils |
| Wire Running Method: | Single-Layer Winding |
| Package | Standard Bulk Packaging
|
| Certificated: | ISO9001 |
| MOQ: | No MOQ for the trial order |
| Samples: | 10-50pcs free samples for freight collect. |
| Payment Type | •By T/T. 30% prior to order confirmation and samples
approval, 70% upon receipt of B/L copy.
• L/C |

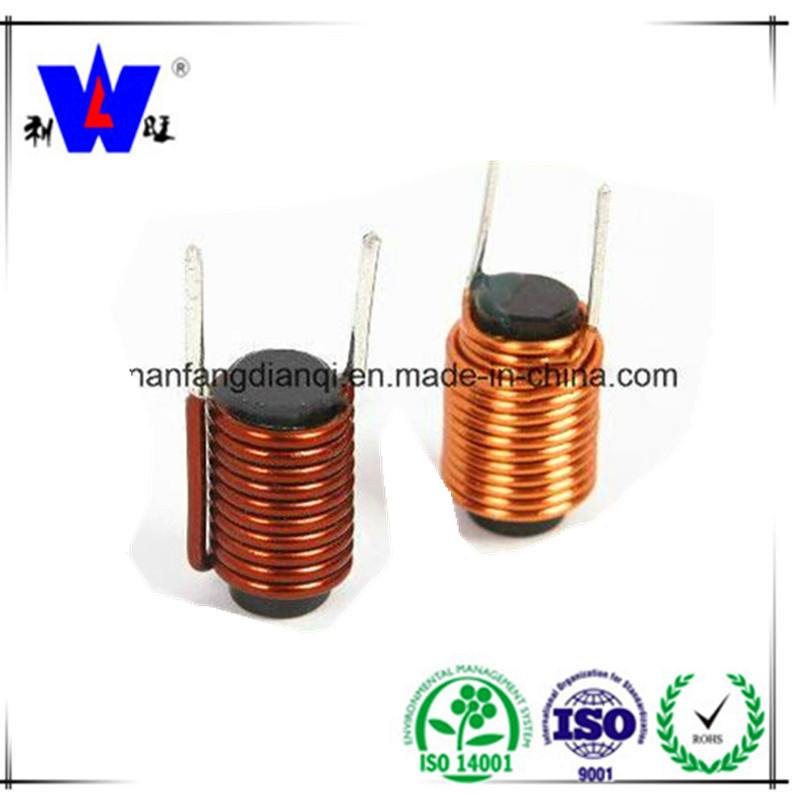

Radial Rod Core power inductor:
RCH-110 A&B SERIES
features:
high saturation material
polyclefin shrink tubing
low DC resistance
high reliablity low cost
Option packing:
bulk packing is standard
bustom design available
Common application:
switching refulators
RFI suppression filters
SCR and triac controls
automotive systems
STANDARD SPECIFICATIONS:
| PART NUMBER RCH-116A&B | L(u)
| IDC(A) | RD-C(MAX) | A (MAX) | B (MAX) | C (0.015/0.38) | D(0.004/0.10) |
| RCH-110A-1ROL-25 | 1 | 25 | 0.002 | 0.60/15.2 | 0.68/17.3 | 0.42/10.7 | 0.068/1.73 |
| RCH-110A-1ROL-10 | 1 | 10 | 0.002 | 0.5/12.7 | 0.75/19.1 | 0.42/10.7 | 0.054/1.37 |
| RCH-110A-3R3L-10 | 3.3 | 10 | 0.005 | 0.5/12.7 | 1.0/25.4 | 0.42/10.7 | 0.054/1.37 |
| RCH-110A-4R7L-03 | 4.7 | 3 | 0.021 | 0.51/13.0 | 0.75/19.1 | 0.42/10.7 | 0.035/0.89 |
| RCH-110A-4R7L-05 | 4.7 | 5 | 0.012 | 0.5/12.7 | 0.75/19.1 | 0.42/10.7 | 0.042/1.07 |
| RCH-110A-4R7L-10 | 4.7 | 10 | 0.012 | 0.5/12.7 | 1.0/25.4 | 0.42/10.7 | 0.054/1.37 |
| RCH-110A-4R7L-20 | 4.7 | 20 | 0.004 | 0.53/12.7 | 1.2/30.5 | 0.42/10.7 | 0.068/1.73 |
Shipping way :
Economy Shipping way (HK post air mail or ePacket) ,it normally cost 15-25 days
Expedited Int'l Shipping (FEDEX, DHL, UPS, TNT) it normally cost 4-6 days
Reasons of our top-quality components help your business succeed:
1. 28 years of experience customizing and power transformers and inductors
2. Your professional and reliable partner for various electronics
3. Over 1000 buyers value our products
3. 20000m2 factory with 21 production lines and 800 employees
4. 5 million units annual capacity
Our advantage:
1.More than 5,000,000 ownstock inventory to meet your needs of different products.
2.Competitive price advantage helps to save your purchase cost and your precious time.
3.Own the international advanced testing equipment of electronic components and scientific storage system to ensure the quality stability.
4.Excellent elite team, more than 5 years seniority, and a good understanding of international market trends.
We'll reply you within 24 hours.If any questions or concerns pls contact us at any time convenience to you
Thank you and Have a nice Day!

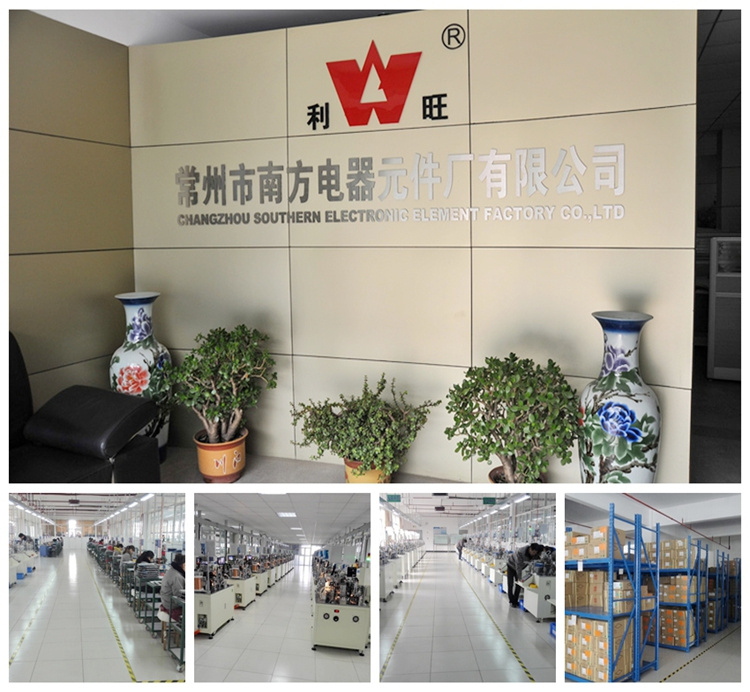

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.
Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.
Factory' S quality policy: "product quality, service in advance, customer satisfaction".
Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment"
