ferrite core toroidal inductor

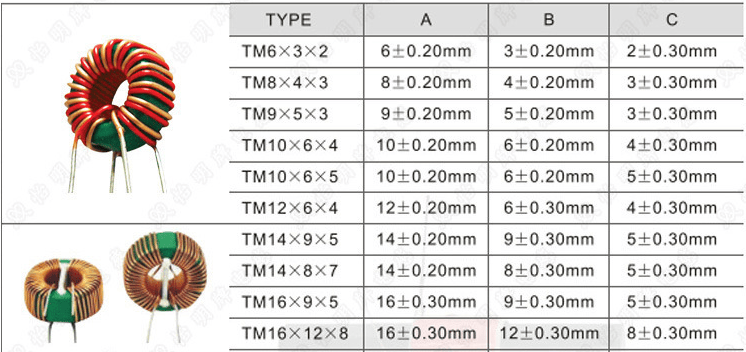

| Toroidal Inductor Transformer Series |
| Model :OR8-OR102(inductance coil color:green, gray, red, yellow and white) |
| No. | Model | Outer diameter(mm) | inside diameter(mm) | High(mm) |
| 1 | OR8x5x3 | 8.0 | 5.0 | 3.0 |
| 2 | OR10x6x5 | 10.0 | 6.0 | 5.0 |
| 9 | OR12x6x4 | 12.0 | 6.0 | 4.0 |
| 11 | OR13x6x7 | 13.0 | 6.0 | 7.0 |
| 12 | OR13x7x5 | 13.0 | 7.0 | 5.0 |
| 13 | OR14x8x7 | 14.0 | 8.0 | 7.0 |
| 16 | OR16x8x5 | 16.0 | 8.0 | 5.0 |
| 17 | OR16x9x5 | 16.0 | 9.0 | 5.0 |
| 21 | OR18x10x10 | 18.0 | 10.0 | 10.0 |
| 23 | OR19x13x11 | 19.0 | 13.0 | 11.0 |
| 26 | OR20x12x10 | 20.0 | 12.0 | 10.0 |
| 27 | OR22x14x8 | 22.0 | 14.0 | 8.0 |
| 31 | OR25x15x12 | 25.0 | 15.0 | 12.0 |
| 36 | OR28x18x13 | 28.0 | 18.0 | 13.0 |
| 38 | Or29x19x15 | 29.0 | 19.0 | 15.0 |
| 39 | OR31x18x14 | 31.0 | 18.0 | 14.0 |
| 40 | OR31x19x13 | 31 | 19 | 13 |
| 44 | OR36x23x15 | 36 | 23 | 15 |
| 46 | OR38x19x13 | 38 | 19 | 13 |
| 47 | OR38x19x15 | 38 | 19 | 15 |
| 52 | OR40x23x20 | 40 | 23 | 20 |
| 53 | OR40x25x20 | 40 | 25 | 20 |
| 54 | OR42x26x18 | 42 | 26 | 18 |
| 55 | OR45x30x15 | 45 | 30 | 15 |
| 56 | OR47x27x15 | 47 | 27 | 15 |
| 57 | OR48x30x10 | 48 | 30 | 10 |
| 58 | OR48x30x15 | 48 | 30 | 15 |
| 60 | OR49x31x19 | 49 | 31 | 19 |
| 62 | OR50x25x20 | 50 | 25 | 20 |
| 63 | OR51x31x13 | 51 | 31 | 13 |
| 64 | OR56x32x18 | 56 | 32 | 18 |
| 66 | OR58x40x18 | 58 | 40 | 18 |
| 67 | OR60x38x20 | 60 | 38 | 20 |
| 70 | OR63x38x25 | 63 | 38 | 12.7 |
| 71 | OR68x44x15 | 68 | 44 | 15 |
| 72 | OR74x40x13 | 74 | 40 | 13 |
| 73 | OR80x50x20 | 80 | 50 | 20 |
| 74 | OR87x54x14 | 87 | 54 | 14 |
| 75 | OR87x54x30 | 87 | 54 | 30 |
| 76 | OR100x50x20 | 100 | 50 | 20 |
| 77 | OR102x66x15 | 102 | 66 | 15 |
Specifications

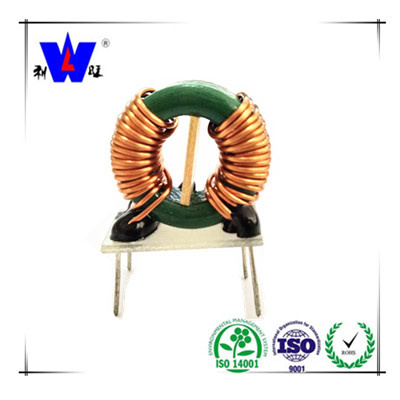

| Item Name | ISO Factory Good Price UL ROHS CQC Certified 1H Ferrite Toroidal Core Adjustable Coils Inductor |
| Model No. | CH-TC6826 |
| Components | Ferrite core, Copper wire;Basing;Shielding case |
| Core | NiZn/Iron /MnZn/MPP/Amorphous magnetic |
| Wire | Enameled copper wire-UEW/PEW |
| Functions | Power line filter/Signal line filter/Energy saving/Voltage step-up etc/Choke etc |
| Mounting type | Surface mount ;Through hole ; Wire lead |
| Shape Types | Vertical;Horizontal;with/without base;shielded/unshielded ;SMD |
| Coil Structure | Toroidal |
| Working Frequency Range | 1KHZ-100MHZ |
| Inductance Range | 1uH-1H |
| DCR Range | unknown-Depend on customers' request |
| Storage Temperature | -20ºC to +85ºC |
| Working Temperature | -20ºC to +105ºC |
| Storage Humidity | 30% to 95% |
| Test Items | Ø Turns Ratio
Ø Inductance
Ø DC resistance test
Ø Safety test
Ø Current test
Ø Hi-POT |
| Certifications | ISO9001:2008, ISO14001:2008, |
| MOQ | 1000 pcs |
| OEM | Acceptable |
| Sample | Free |
| Sample Time | 3-5 working days |
| Package | EPE foam + export carton, or plastic tray+export carton |
| Delivery time | about 15 days against deposit |
| Feature | 5 years warranty
High current High power High efficiency
Low temperature rise
Stable performance |
| Applications | 1. VCRS, Copy machine , Audio equipment , Game machines
2. TV sets, Microcomputer equipment, printers, Terminals
3. communications control equipment
4.Switching power supply, chargers, alarm system
5. UPS, VCD/DVD players, audio and visual equipment
6. OA machines, inverters, chargers, alarm system |
Packaging & Delivery
Packaging Details
Outer packing hard paper carton,Inner packing EPE etc which is suitable for long-term distance by Air or Sea transportation
Delivery Time
3-10days
APPLICATIONS
1 Noise suppression of DC circuit for switching regulator.
1 Protects primary AC side from being affected by a
switching regulator.
1 Filters noise emitting from ultrasonic equipment.
1 Filters electrostatic noise from power and signal lines.
1 Eliminates contact noise.
1 Filters incoming spike noise for ICs and equipment
using microcomputers.
1 Minimizes noise emissions for conforming to FCC,
VCCI, FTZ, CISPR. (mm)
1 Minimizes noise emissions from inverters. *Referential value for board designing
SPECIFICATIONS(1A-2A) TEST AT 1KHz WITH UNIVERSAL BRIDGE
| PART NO. | Rated Voltage (AC/DC) | Rated Current (AMP) | Inductance Min.(mH) | DC Resistance Max.(mΩ)* | Test Voltage (VAC)** | Insulation Resistance MIN(MΩ)*** | Temperature Rise Max.(oC) | Temperature Range (oC) |
| LFV129-601U-1A | 250V | 1A | 0.6 | 60 | 2000 | 100 | 40 | -25~105 |
| LFV129-102U-1A | 250V | 1A | 1.0 | 70 | 2000 | 100 | 40 | -25~105 |
| LFV129-202U-1A | 250V | 1A | 2.0 | 100 | 2000 | 100 | 40 | -25~105 |
| LFV129-302U-1A | 250V | 1A | 3.0 | 120 | 2000 | 100 | 40 | -25~105 |
| LFV129-502U-1A | 250V | 1A | 5.0 | 150 | 2000 | 100 | 40 | -25~105 |
| LFV129-601U-1A | 250V | 2A | 0.6 | 50 | 2000 | 100 | 40 | -25~105 |
| LFV129-102U-2A | 250V | 2A | 1.0 | 50 | 2000 | 100 | 40 | -25~105 |
| LFV129-202U-2A | 250V | 2A | 2.0 | 70 | 2000 | 100 | 40 | -25~105 |
| LFV129-302U-2A | 250V | 2A | 3.0 | 85 | 2000 | 100 | 40 | -25~105 |

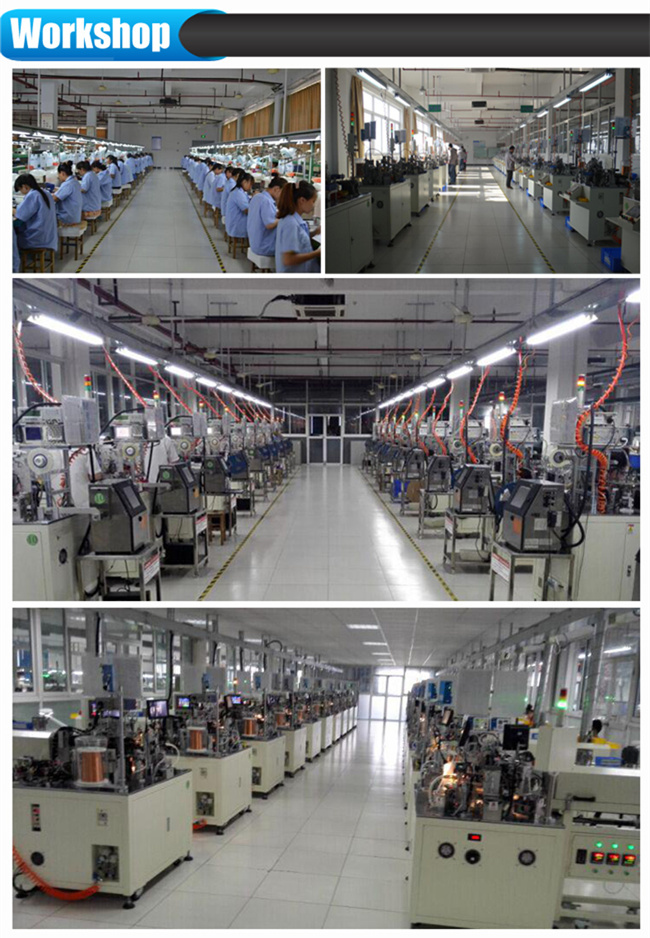

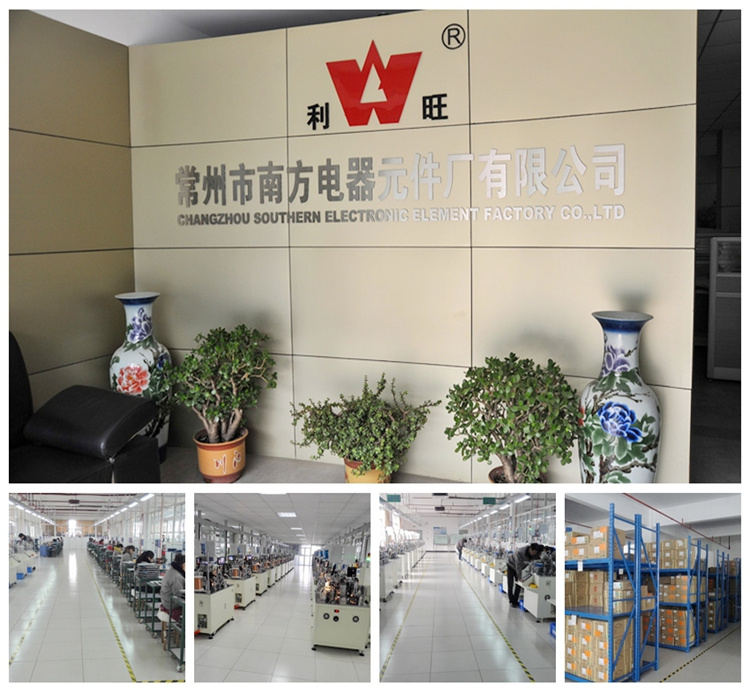

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.
