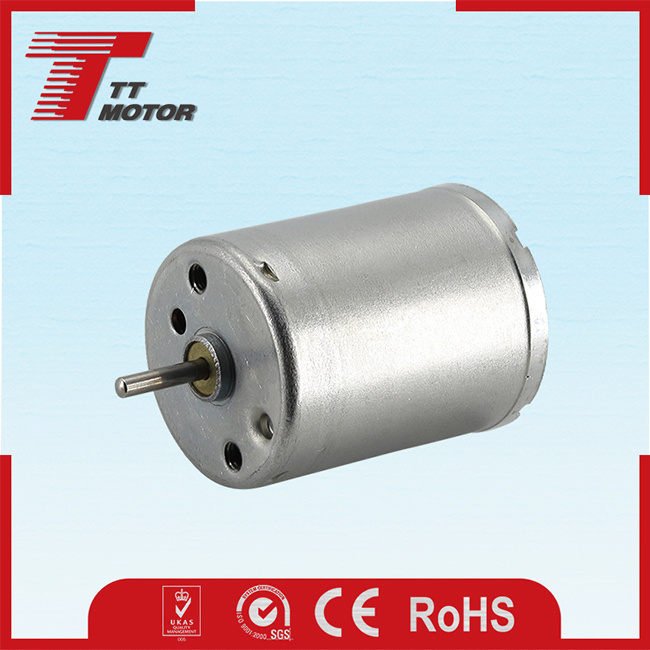

Power window 1.18W 0.62W price small electric DC motor

Power window 1.18W 0.62W price small electric dc motor

Main Features
1.25mm gearbox plus 370&320 dc motor and TEC2419 brushless motor
2.Small size dc gear motor with low speed and big torque
3.25mm gear motor provide 0.5Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.Dc gear motors can match encoder,3ppr
6.Reduction ratio:4,10,21,34,45,47,78,103,130,172,227,378,499


Motor model no.	Rated voltage	No-load speed	No-load current	Rated speed	Rated torque	Rated current	Output power	Stall torque	Stall current
	VDC	r/min	mA	r/min	g.cm	mA	W	g.cm	A
TRK-370CA-22170	6	5600	50	4800	24	300	1.18	186	2.1
TRK-370CA-15360	12	5600	25	4800	24	160	1.18	186	1.06
TRK-370CA-12560	12	3700	20	3000	20	90	0.62	125	0.6

Gear motor technical data  GM25-370CA-22170-xxx

Reduction ratio	4	10	21	34	47	78	103	130	227	499
Length mm	17	19	19	21	21	23	23	25	25	27
No-load speed rpm	1280	510	245	150	110	68	50	42	24	11
Rated speed rpm	1200	480	230	137	102	62	47	37	21	10
Rated torque kg.cm	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7	5
Max.momentary tolerance torque kg.cm	0.45	1.1	2.3	3.9	5.2	10	10	10	10	10

Gearbox with motor   GM25-370CA-15360-xxx

Reduction ratio	4	10	21	34	47	78	103	130	227	499
Length mm	17	19	19	21	21	23	23	25	25	27
No-load speed rpm	1280	510	245	150	110	68	50	42	24	11
Rated speed rpm	1200	480	230	137	102	62	47	37	21	10
Rated torque kg.cm	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7	5
Max.momentary tolerance torque kg.cm	0.45	1.1	2.3	3.9	5.2	10	10	10	10	10

Gearbox with motor   GM25-370CA-12560-xxx

Reduction ratio	4	10	21	34	47	78	103	130	478	499
Length mm	17	19	19	21	21	23	23	25	27	27
No-load speed rpm	850	340	165	100	75	48	34	27	7.5	7
Rated speed rpm	750	300	145	86	64	38	29	23	6.3	6
Rated torque kg.cm	0.05	0.12	0.26	0.4	0.6	0.9	1.2	1.4	2.5	5
Max.momentary tolerance torque kg.cm	0.3	0.75	1.5	2.6	3.5	10	10	10	10	10


Product Application
Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.


Other Applications:
Business Machines:	ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:	Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment and Gaming:	Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies:	Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines.
Lawn and Garden:	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care:	Hair Cutting, Hair Care, Massagers.
Power Tools:	Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Camera and Optical:	Video, Cameras, Projectors.

Packing & Delivery
Packaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
China Post: Depends on ship to which country;
Sea: Depends on ship to which country

FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirn the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.
Q: Which shipping way is avaliable?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q: How long is the deliver[Producing] and shipping?
A: Devliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What do I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accept,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should by paid before shipping.
