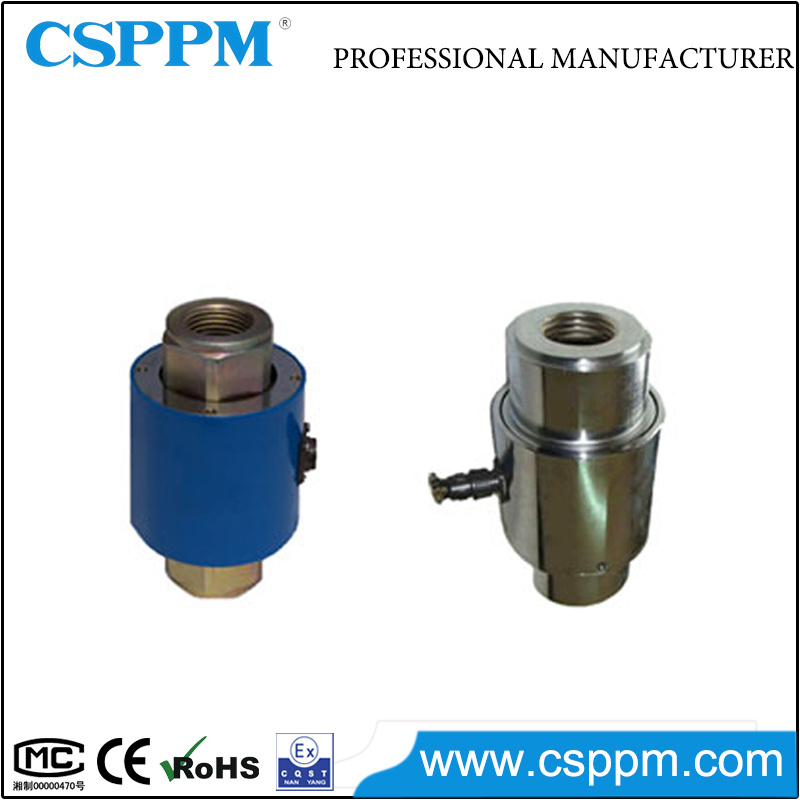

Ppm226-Ls2-2 Column Cylinder Type Load Cell for Lifting Equipment

Name: Ppm226-Ls2-2 Column Cylinder Type Load Cell for Lifting Equipment
Brand: all-electronics-online.com
SKU: 836176125
Availability: InStock
Rating: 4.5 (103 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Description

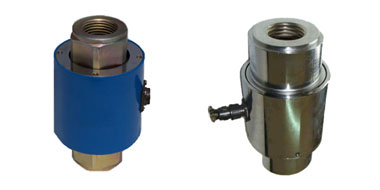

PPM226-LS2-2 load cells are available in the capacities from 0.2t to 600t. Rugged all steel construction and high performance strain gauges assure superior linearity and stability. Temperature compensation is achieved through a miniature circuit board in the cable. It features high accuracy and strong character of anti deviated load.
PPM226-LS2-2 load cells are suitable for Electronic Weighing Instrument, Lifting equipment,Crane scale, Force measurement and control.

Specification

Capability	0.2~600 t
Comprehensive precision	0.1%FS, 0.2%FS, 0.5%FS
Sensitivity	2.0±0.5 mV/V
Creep	±0.02%FS/30min
Temperature effect on zero	±0.03%FS/10ºC
Temperature effect on output	±0.02%FS/10ºC
Operating temperature range	-30ºC~+70ºC
Output resistance	350±3Ω
Insulation resistance	>3000MΩ
Safe overload	150%FS
Bridge voltage	10V DC
Material	Alloy steel
Protection class	IP 65
Electronic connection	Input+: Red Input-:Black Output+: Green Output-:White

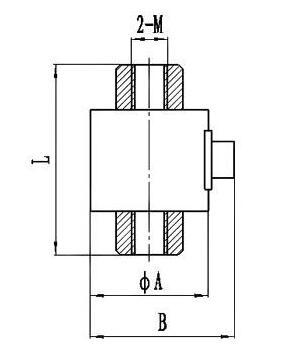

Dimensions: mm

Capacity	Dimensions
t	ΦA	L	B	M
0.2~1	52	84	68	M16*1.5
1.5~7	70	115	90	M24*1.5
10~20	90	160	110	M363,M364
30~50	117	210	132	M45*4.5
70~100	130	224	145	M564,M724
150~200	200	420	215	M110*6
250~300	238	500	255	M130*6
400~600	300	556	315	M200*10

Prod Model:	Ppm226-Ls2-2
Certification:	CMC
