Prod Model: |
PQWT-CL300 |
Power: |
Electronic |
Usage: |
Auto Testing Machine |
Measuring Depth: |
2 Meters Water Leak Sensor |
Frequency Range: |
50-2500Hz |
Live Recording: |
8 Sections of Recording |
Stand-by Time: |
8 Hours |
Working Temperature: |
-10 ºC~+50 ºC |
Product Description
Application of Pqwt-Cl300 Digital Ultrasonic Underground Water Leak Detector1. The use of latest digital signal processing chip and a digital filter chip, 16M cache controller integrated, more responsive. In particular, it can filter with the interference of environmental noise, screening out the leakage noise, allowing the operator to lock leakage points quickly.
2. 7-inch high-definition digital color LCD touch screen with a resolution of 800 * 480, provide 8 display pages, can show the measurement parameters more clearly and intuitively, and full touch screen design, simple operation.
3. 50 ~ 2500Hz frequency range ( spectrum analysis ) , can be displayed the distribution of the noise signal at each frequency in real time.
4. Sensor is built-in preamp circuit, using a rubber ring seal and cushion, and the application of professional acoustic methods, making the ability to capture the noise is higher than similar products.
5. Adopt latest noise detecting element, sounds clear.
6. Save 8 sections totaling eight minutes of recording, which is not lost after shut down, could be analyzed at any time.
7. Using a large capacity battery, can work for more than ten hours , and can be removed charging and online charging.
8. Super anti-jamming circuit design, digital signal and analog signal effectively isolate and eliminate the noise generated by the digital circuit.
Parameter of Pqwt-Cl300 Digital Ultrasonic Underground Water Leak DetectorModel Number | PQWT-CL300 |
Power | Electronic |
Usage | Auto Testing Machine |
Measuring Depth | 2 Meters Water Leak Sensor |
Frequency Range | 50-2500HZ |
Audio Amplifier Gain | Adjustable within the class of 100 |
Operation Mode | Spectral Analysis, Filter Analysis, Location Mode, Long-Term Mode |
LCD Size | 7-inch Touch Screen |
Live Recording | 8 Sections of Recording |
Stand-by Time | 8 Hours |
Power Supply | 12V 3600mAh Rechargeable Battery |
Working Temperature | -10 ºC~+50 ºC |

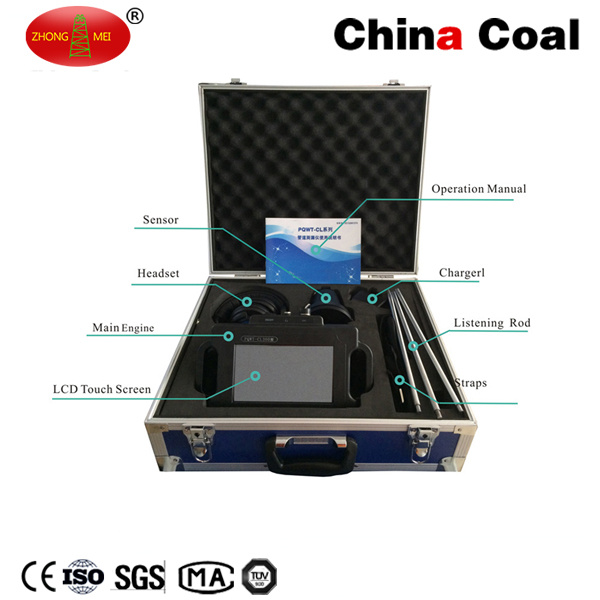

Photos Of Pqwt-Cl300 Digital Ultrasonic Underground Water Leak Detector
