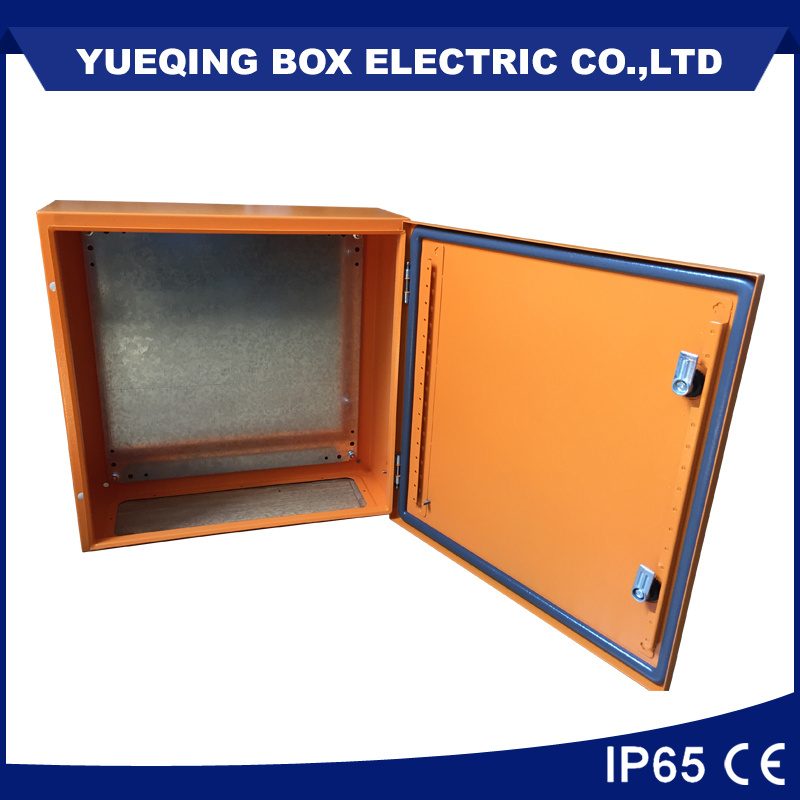

Premium Quality IP66 Orange Color Metal Enclosure

Name: Premium Quality IP66 Orange Color Metal Enclosure
Brand: all-electronics-online.com
SKU: 829614805
Availability: InStock
Rating: 4.3 (83 reviews)

Price:	US $ 20/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Standard configuration:
Enclosure and door
Mounting plate
Bar Lock
Polyurethane door seal
Cable gland plate and gasket

Degree of protection: IP66 to E N60529

External mechanical impact resistance: I K10

Surface treatment:
Textrured epoxy polyester powder coating

Material and color:
Body and front door: Cold roll steel to paint in RAL72000
Mounting plate : Galvanized steel or plain steel to paint in RAL2004 smooth finish

Model	H (mm)	W(mm)	D(mm)
ME252015	250	200	150
ME302015	300	200	150
ME302515	300	250	150
ME302520	300	250	200
ME303015	300	300	150
ME303020	300	300	200
ME403015	400	300	150
ME403020	400	300	200
ME404020	400	400	200
ME503015	500	300	150
ME503020	500	300	200
ME503025	500	300	250
ME504015	500	400	150
ME504020	500	400	200
ME504025	500	400	250
ME504030	500	400	300
ME505020	500	500	200
ME604015	600	400	150
ME604020	600	400	200
ME604025	600	400	250
ME605015	600	500	150
ME605020	600	500	200
ME605025	600	500	250
ME606025	600	600	250
ME606030	600	600	300
ME705020	700	500	200
ME705025	700	500	250
ME705030	700	500	300
ME806020	800	600	200
ME806025	800	600	250
ME806030	800	600	300
ME808020	800	800	200
ME808030	800	800	300
ME1006025	1000	600	250
ME1000630	1000	600	300
ME1008025	1000	800	250
ME1008030	1000	800	300
ME10010030	1000	1000	300
ME1208030	1200	800	300
ME12010030	1200	1000	300

Prod Model:	ME505020
Thickness:	1.2/1.2/2.0
Material:	Cold Steel
Color:	Ral2000
M.P:	Galvanized Steel
Type:	Lighting
Structure:	Protection
Certification:	Ce
Size:	505020
Shell Protection Grade:	IP65
Brand:	Yqbox

Yueqing Box Electric Co., Ltd is established in 2000, situated on a modern industrial park in Yueqing Zhejiang. Our's company away from the qiligang wenzhou port only 500meter.

Our company mainly manufacture wall mounting enclosure, stainless steel enclosure, junction box, telephone box, control desk, floor standing cabinet and so on.

Non-standard products can be dsigned and custom to meet users' special requirements.

The company currently production area of 2, 000m2 and 30 employee. With the most efficient state-of-the art production machinery, and supported by a highly qualified work force and experienced engineers that ensure the highest quality enter into international markets.

Through the past 10 years efforts, we have estbilished a strong and loyal mutually beneficial partnership with customers from Europe, south east Asia, Middle East, south amercia, and Africa.

Just tell us your requirements, we will brng the best to your business!
